Clutch Housing

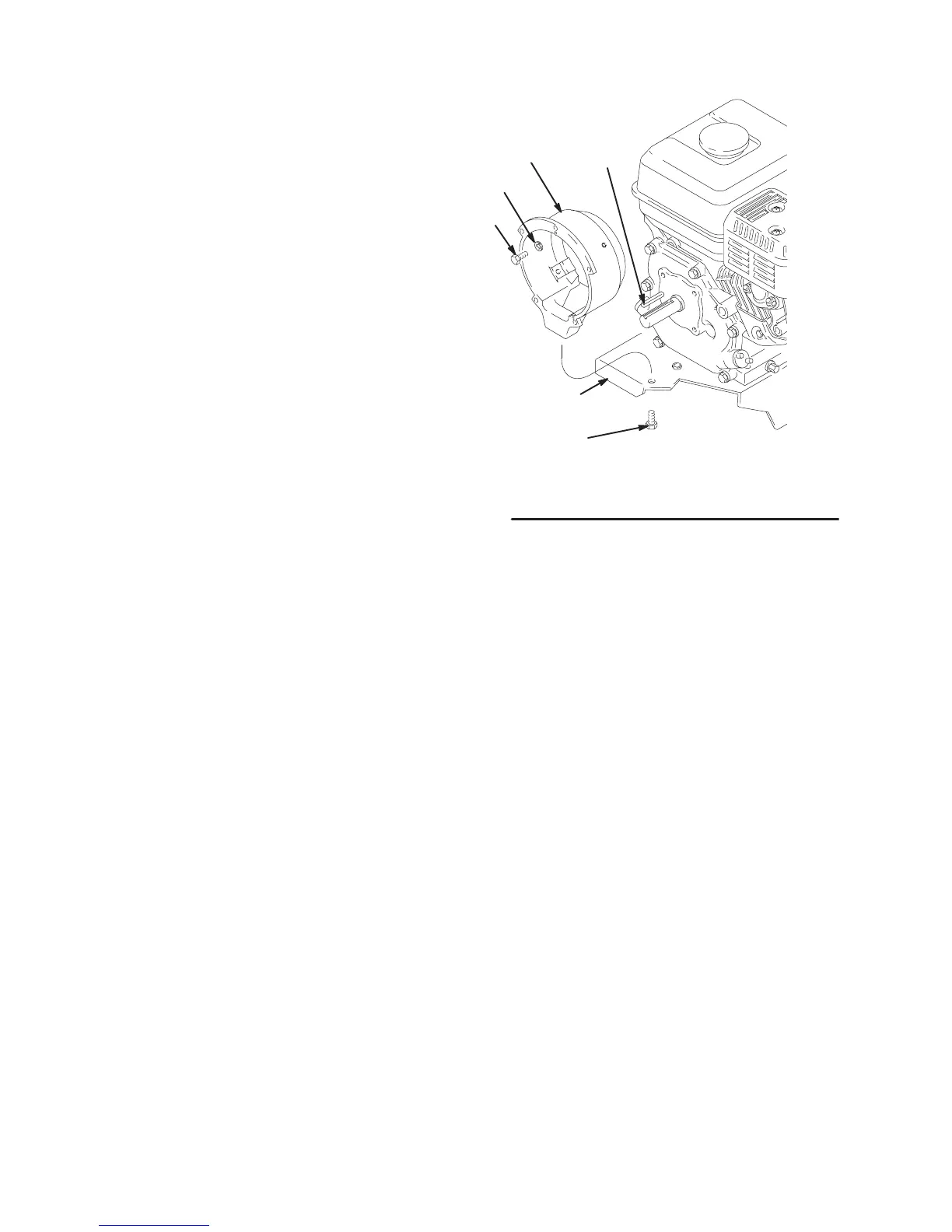

NOTE: Refer to Fig. 15.
1. Remove the four capscrews (8) and lockwashers
(9) which hold the clutch housing (2) to the engine.
2. Remove the capscrew (15), lockwasher (80) and
washer (99) from beneath the mounting plate (D).
3. Remove the engine key (13).
4. Pull off the clutch housing (2).
5. Skip ahead to Reassembly, page 24, step 1.
Fig. 15
8
9
2
13
15
D
03481A
