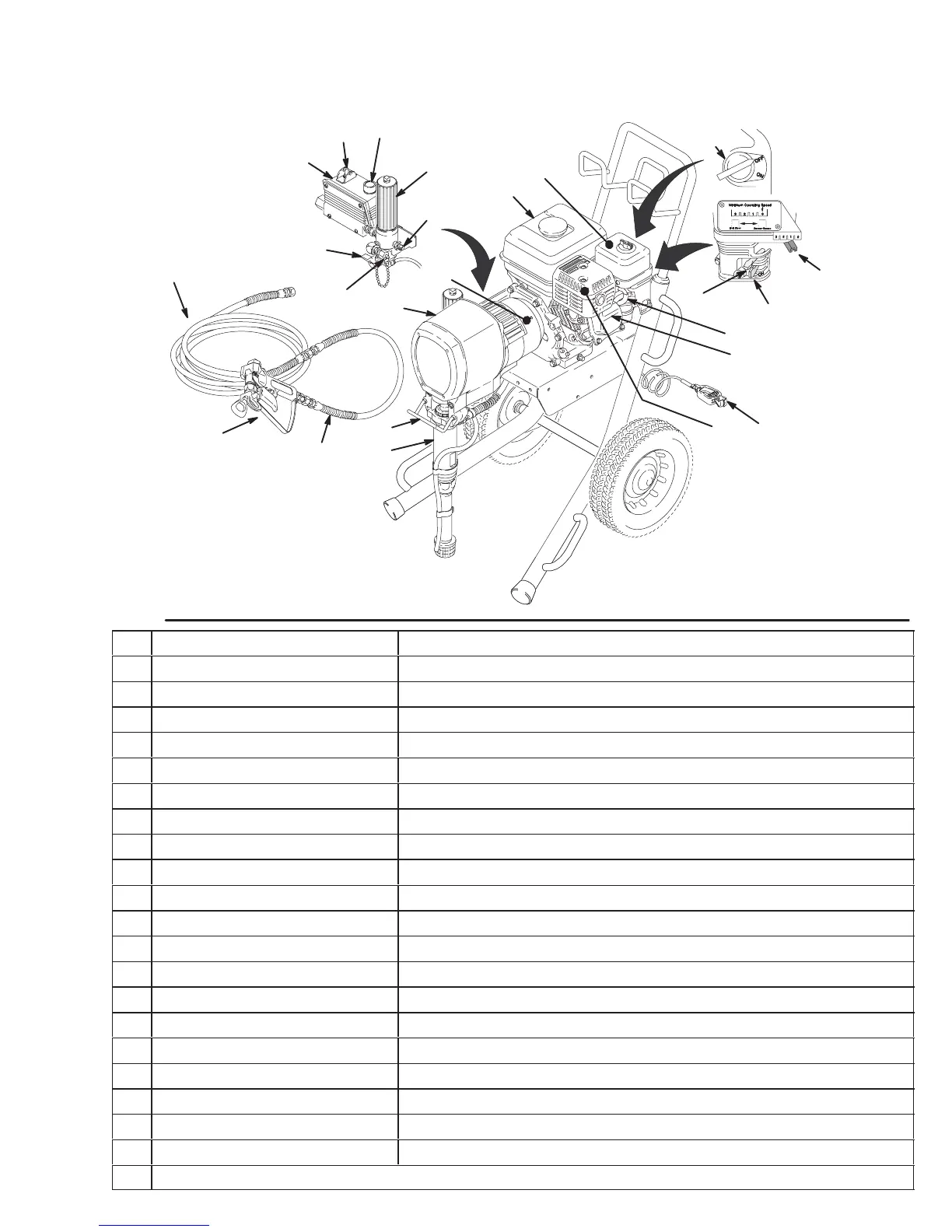

Component Identification and Function
A Pressure Control Switch ON/OFF, enables/disables clutch function
B Pressure Adjusting Knob Controls fluid outlet pressure
C Air Cleaner* Filters air entering the carburetor
D Fuel Tank* Holds 0.95 gallons (3.6 liter) of [(R+M)/2]; 86 octane gasoline
E Muffler* Reduces noise of internal combustion
F Spark Plug Cable* Routes electrical current to spark plug
G Fuel Shutoff Lever* On/off lever to regulate fuel flow from gasoline tank to carburetor
H Choke* Enriches air/gasoline mixture for cold starting
J Throttle* Adjusts engine speed for large or small orifice spray tips
K Engine Switch* Enables/disables engine operation
L Secondary Fluid Outlet Second hose and spray gun is connected here
M Pressure Control Controls clutch cycling to maintain fluid pressure.
N Primary Fluid Outlet Hose and spray gun is connected here
1 Engine* 5.5 HP gasoline engine
4 Clutch Housing Transfers power from engine to drive assembly
20 Drive Assembly Transfers power from clutch to displacement pumps
28 Displacement Pump Provides fluid to be sprayed through spray gun
51 Fluid Filter Filters fluid between source and spray gun
47 Grounding Clamp and Wire Grounds sprayer system
53 Pressure Drain Valve Relieves fluid pressure when open
71 Pail Hanger Provides a hanger for paint pail
* For more detailed explanations of these controls, refer to the Honda engine manual; supplied
