Conversion Kit Installation
12
Conversion Kit Installation
Install New Reversing Switch Activator Plate
1. Remove front cover (CA).
2. Remove right clevis 261503 and reversing switch
activator plate.
3. Install new reversing switching activator plate (21).
4. Replace right clevis 261503.
The IPH-25 and IPH-40 systems include a hydrau-
lic proportioner and conversion kit 24A024 and are
assembled at the factory.
These instructions are for installing Conversion Kit
24A024 onto an existing H-25 or H-40 hydraulic
proportioner.
See Parts on page 32 for Conversion Kit 24A024
parts.
F

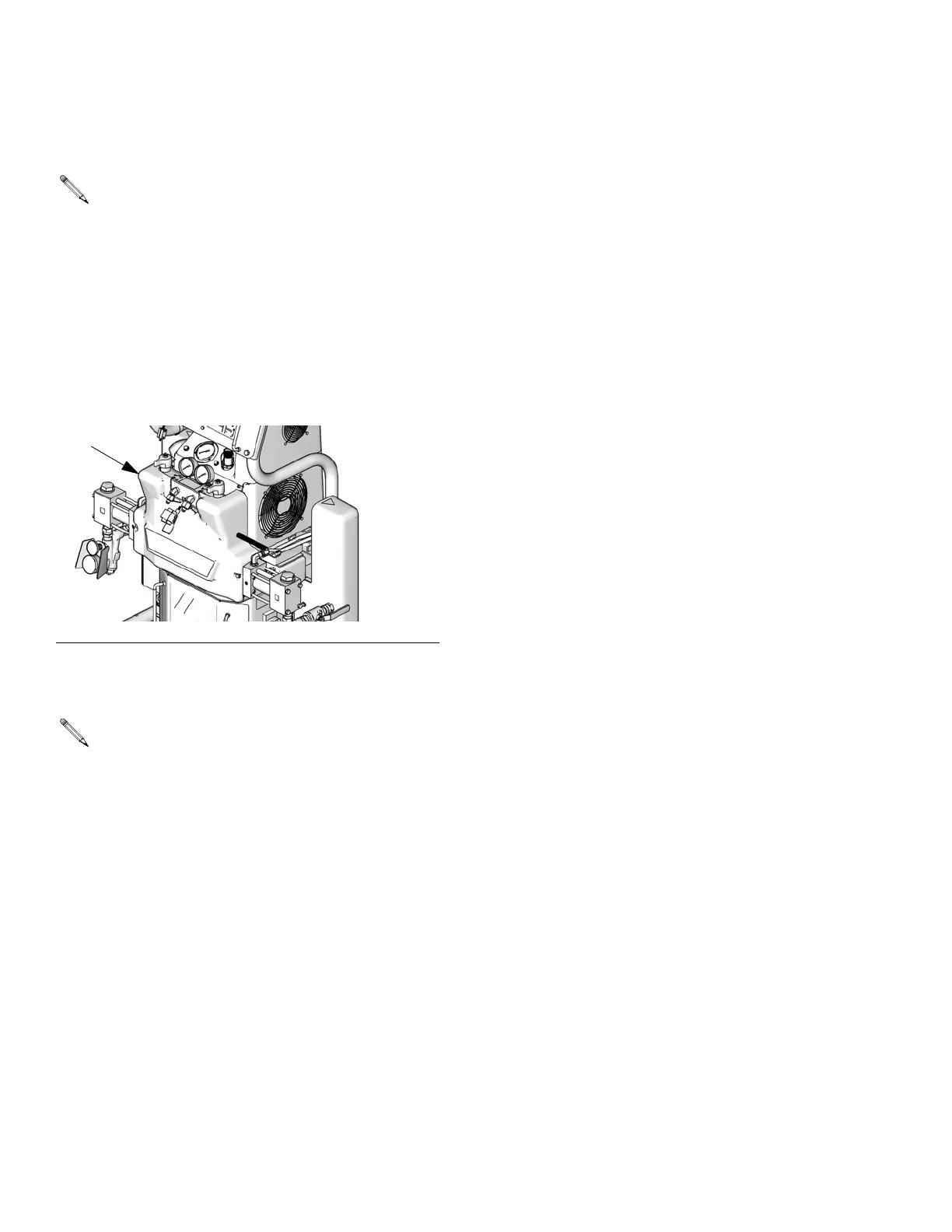

IG. 5
CA
ti11756a
For steps 2 through 4, refer to Proportioning Pump
manual 312068 for detailed instructions.
