Conversion Kit Installation
16

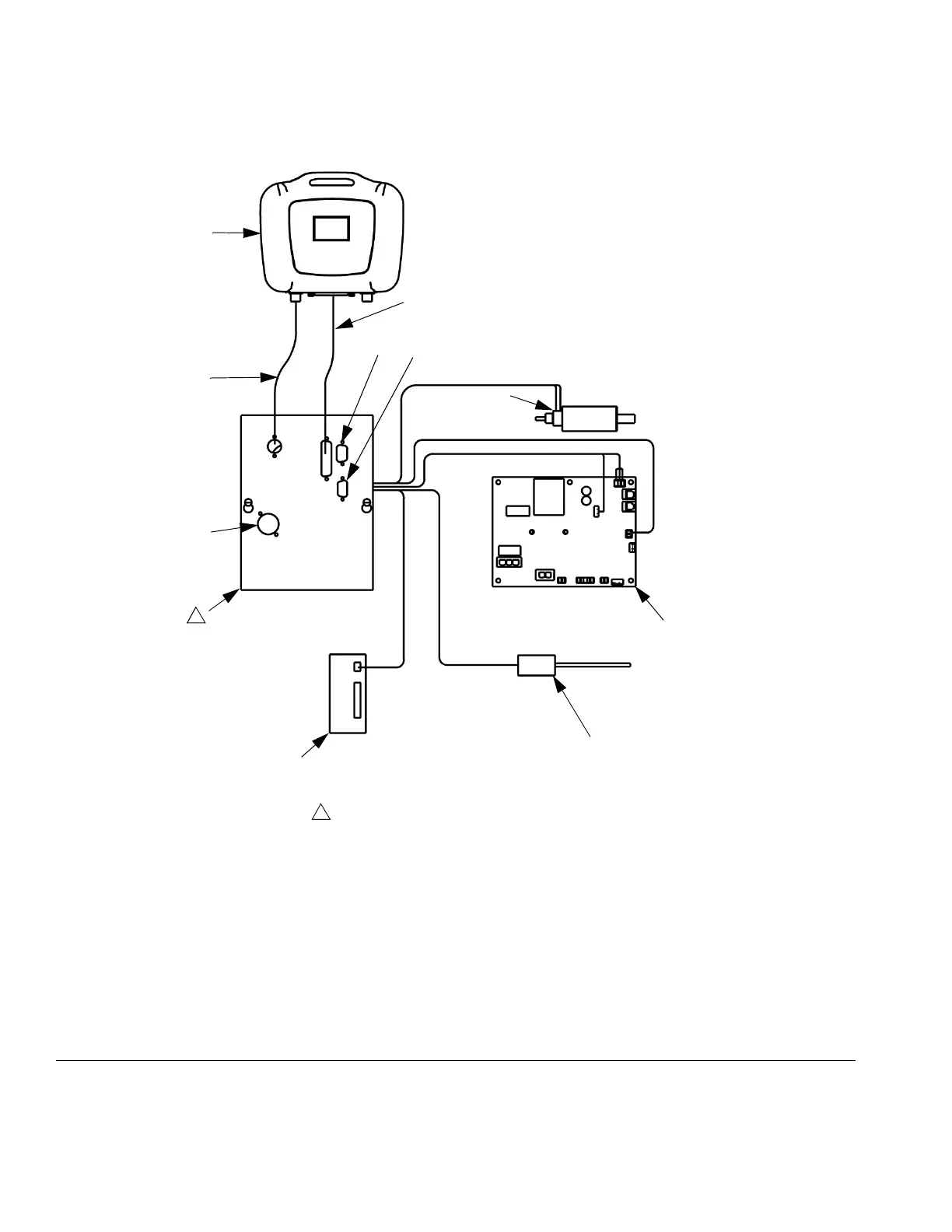

Simplified Schematic, Shot Controller Wiring
FIG. 11: H25, H40 Conversion Kit Wiring Diagram
FA
FB
FD
FE
FF
Key:
FA Shot Controller
FB Hydraulic Proportioner Fan Fuse Block
FC Electrical Enclosure
FD Hydraulic Proportioner Temperature
Control Board
(view from front of hydraulic proportioner)
FE Linear Sensor
FF Hydraulic Proportioner Motor Control
Board
FG Shot Controller Power Cable
FH Port for Optional Data Reporting Kit
248848 (purchase separately)
FJ Port for External Machine Control
FK Shot Controller Data Cable
FL Port for Gun Cable
1
See FIG. 18 on page 32 for detailed view.
1
FH
FG
FK
FL
FJ
FC
To Next Page
