2 311066C

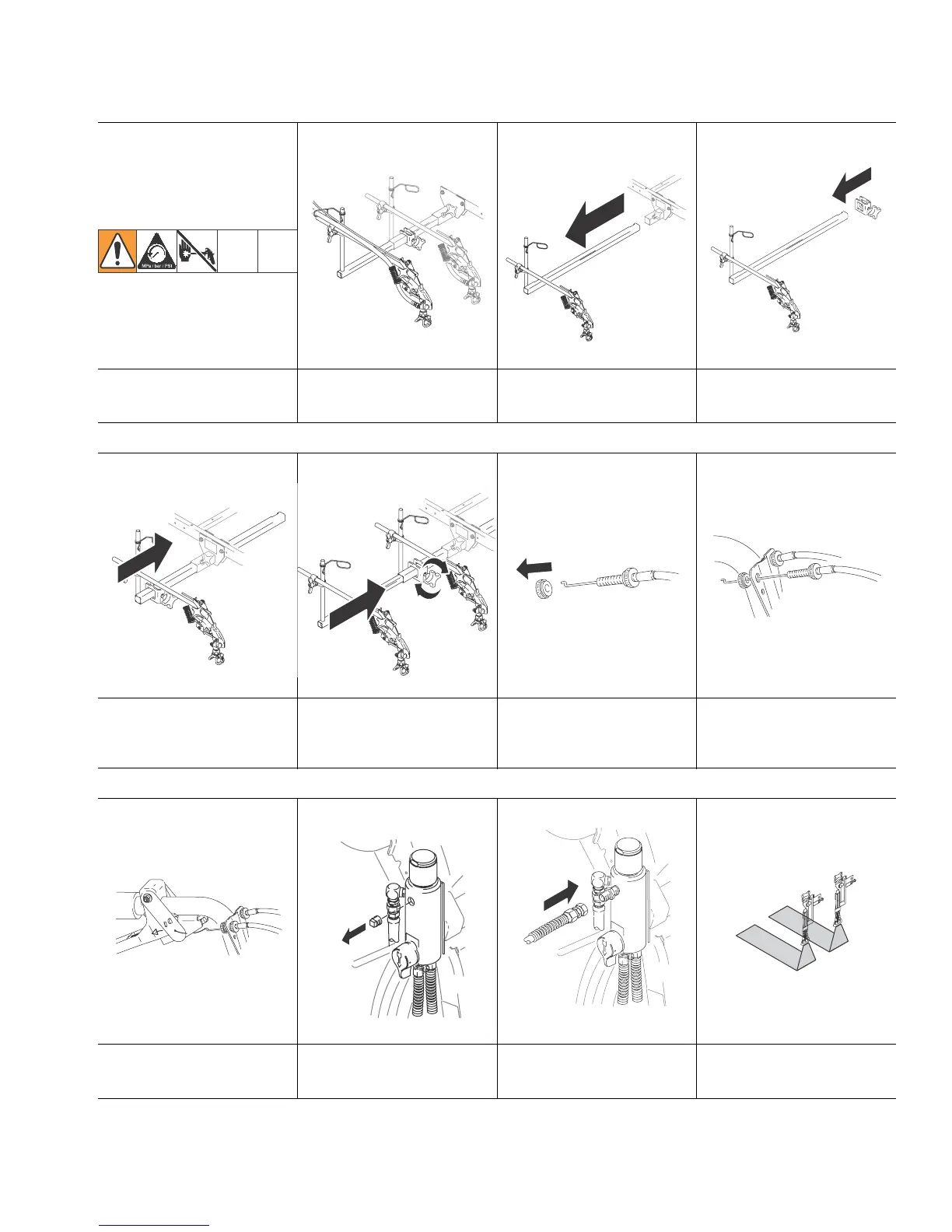

Relieve pressure. Refer to
your sprayer manual.
1 Install extension clamp (10)
and extension support
bracket (12))
a Pull out existing gun arm
support bracket
b Slide extension clamp onto
existing gun arm support
bracket
ti6654a
ti6655a
ti6656a
c Install existing gun support
bracket.
2 Install extension support
bracket (12). Tighten exten-
sion clamp (10).
3 Route gun cable (1) up to
cable bracket on handle
bar. Remove knurled nut
near end of gun cable.
4 Insert gun cable through
cable bracket. Install and
tighten knurled nut.
ti6657a
ti6658a
ti6659a
ti6660a
5 Insert gun cable in gun
selector plate
6 Remove plug from filter. 7 Connect paint hose to filter. 8 Adjust cable and gun trig-
ger so both guns trigger at
the same time.
ti6661a
ti6662b
ti6663a
ti6665a
