Graco MAGNUM PROJECT PAINTER PLUS User Manual

Setup
332643B 13

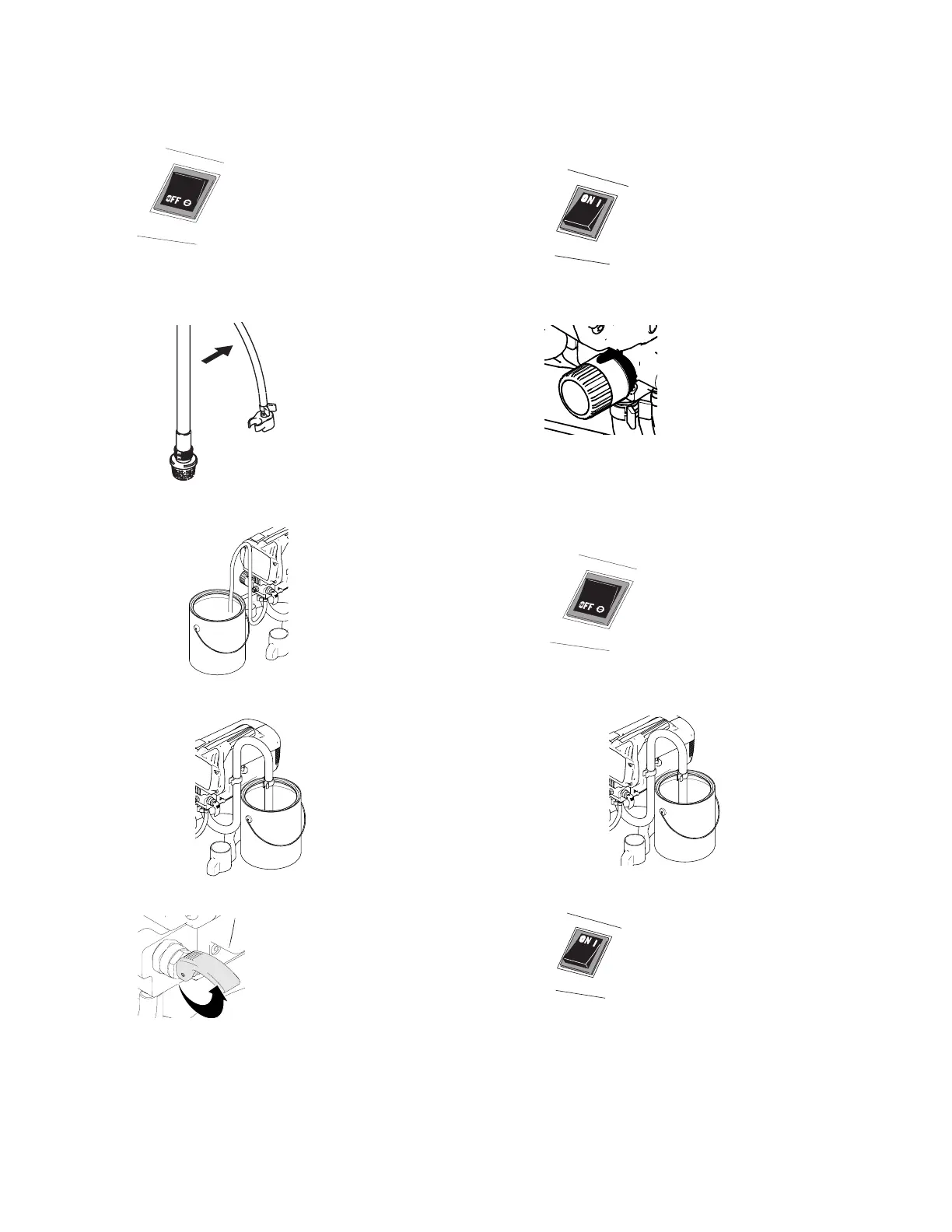

5. Make sure the power switch is OFF and the sprayer
is unplugged.
6. Separate prime tube (smaller) from suction tube
(larger).
7. Place prime tube in waste pail.
8. Submerge suction tube in water or flushing solvent.
9. Move Prime/Spray valve to PRIME.
10. Plug sprayer in a grounded outlet.
11. Turn power switch ON.
12. Align setting indicator with Prime/Clean setting on
pressure control knob until pump starts, page 11.
13. When sprayer starts pumping, flushing solvent and
air bubbles will be purged from system. Allow fluid
to flow out of prime tube, into waste pail, for 30 to 60
seconds.
14. Turn power switch OFF.
15. Transfer suction tube to paint pail and submerge
suction tube in paint.
16. Turn power switch ON.
ti2018a
ti2039a
ti14962a
WASTE
ti14963a
WATER or
SOLVENT
ti13961a
ti5580a
ti12948a
ti2018a
ti14963a
PAINT
ti5580a

Graco MAGNUM PROJECT PAINTER PLUS Specifications

General

Type	Airless Paint Sprayer
Maximum Pressure	2800 PSI
Flow Rate	0.24 GPM
Weight	15 lbs
Power Source	Electric
Maximum Flow Rate	0.24 GPM
Voltage	120V
Maximum Tip Size	0.015 in
Hose Length	25 ft
Spray Tip Size	0.015 in
