Shutdown and Cleaning
20 332643B

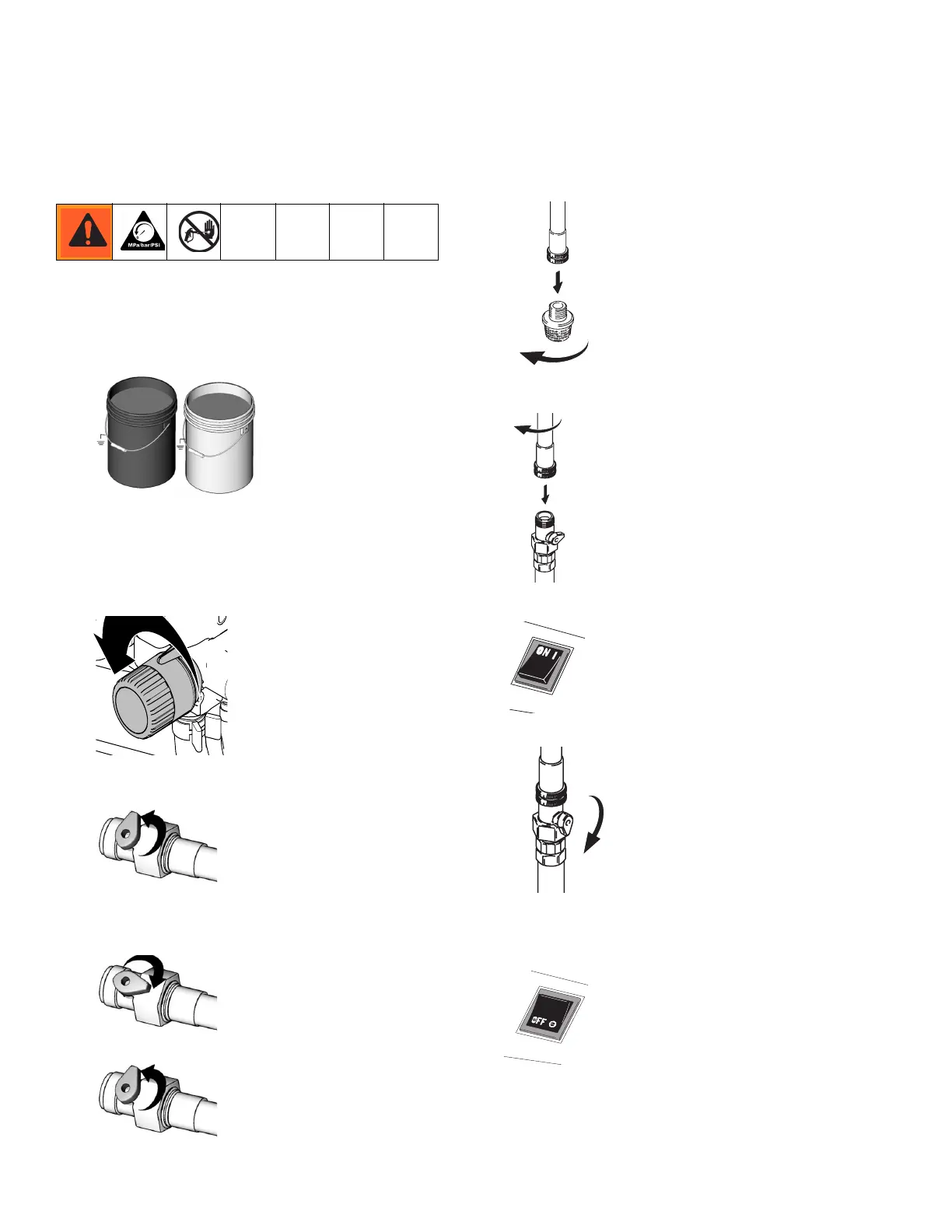

Power Flush
Power flushing is a faster method of flushing. It can only
be used after spraying water-based coatings.
1. Relieve pressure, page 11.
2. Remove tip and guard assembly from gun and place
in waste pail.
3. Place empty waste and paint pails side by side.
4. Lift suction tube and prime tube from paint pail. Let
them drain into paint for a while.
5. Place suction and prime tube in waste pail.
6. Turn Pressure Control knob to the Prime/Clean set-
ting.
7. Screw Power Flush attachment to garden hose.
Close valve.
8. Turn on water. Open valve. Rinse paint off suction
tube, prime tube and inlet screen.
9. Close valve on Power Flush attachment.
10. Unscrew inlet screen from suction tube. Place inlet
screen in waste pail.
11. Connect garden hose to suction tube with Power
Flush attachment. Leave prime tube in waste pail.
12. Turn power switch ON.
13. Open valve on Power Flush attachment.
14. Circulate water through sprayer, into waste pail, for
20 seconds.
15. Turn power switch OFF.
ti9726a
WASTE
PAINT
ti12940a
ti9413a
close
ti9727b
open
ti9413a
close
ti2040a
ti2042a
ti5580a
OPEN
ti2043a
ti2018a

Graco MAGNUM PROJECT PAINTER PLUS Specifications

General

Type	Airless Paint Sprayer
Maximum Pressure	2800 PSI
Flow Rate	0.24 GPM
Weight	15 lbs
Power Source	Electric
Maximum Flow Rate	0.24 GPM
Voltage	120V
Maximum Tip Size	0.015 in
Hose Length	25 ft
Spray Tip Size	0.015 in
