Graco MAGNUM PROJECT PAINTER PLUS User Manual

Shutdown and Cleaning
332643B 19
NOTE: Step 12 is for returning paint in hose back to
paint pail. One 50-ft hose holds approximately 1-quart
(1-liter) of paint.

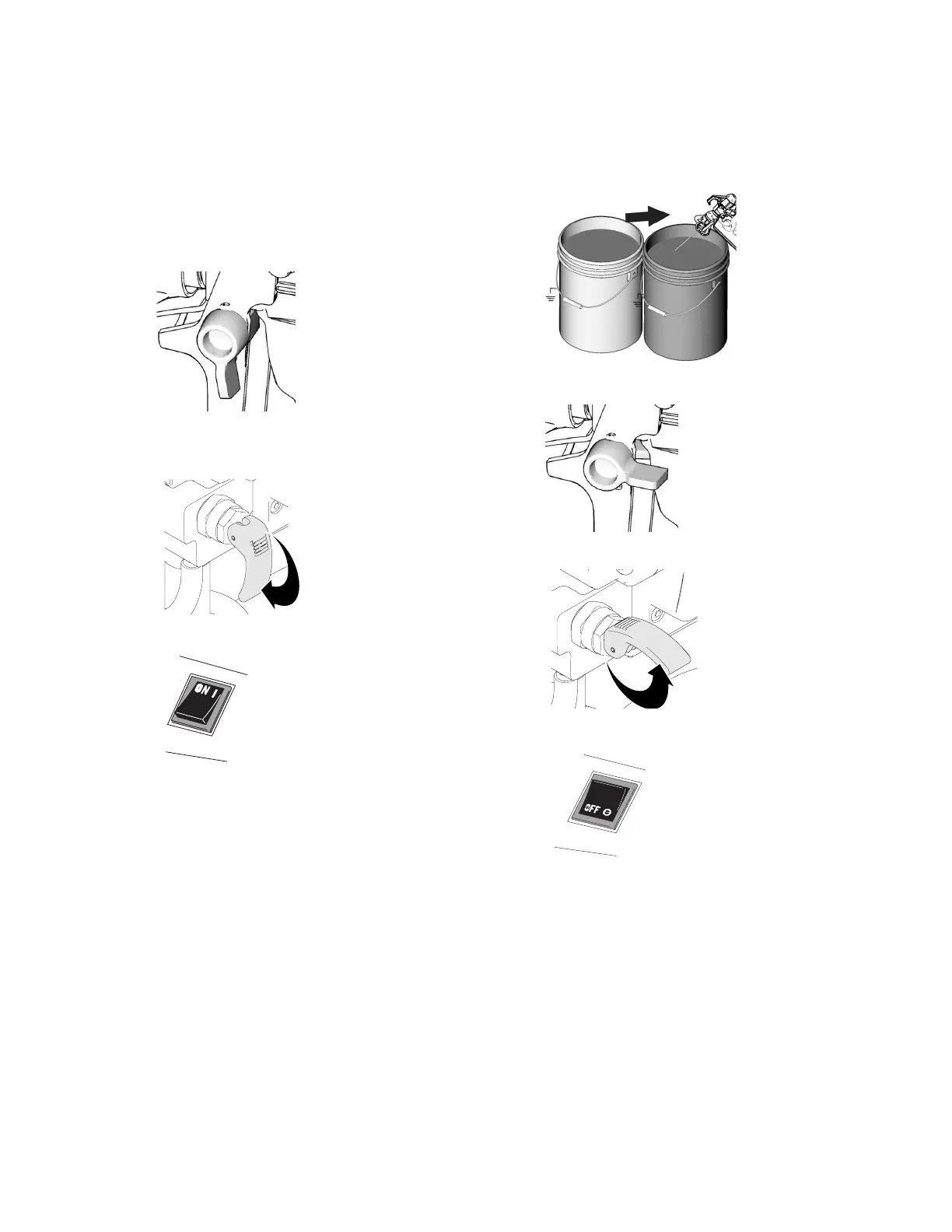

12. To preserve paint in hose:
a. Point gun into paint pail.
b. Unlock gun trigger lock.
c. Pull and hold gun trigger.
d. Move Prime/Spray valve to SPRAY.
e. Turn power switch ON.
f. Continue to hold gun trigger until you see paint
diluted with flushing fluid starting to come out of
gun.
13. While continuing to trigger gun, quickly move gun to
redirect spray into waste pail. Continue triggering
gun into waste pail until flushing fluid dispensed
from gun is relatively clear.
14. Stop triggering gun. Engage the trigger lock.
15. Move Prime/Spray valve to PRIME.
16. Turn power switch OFF.
17. Clean gun and gun filter, page 22.
18. Fill unit with Pump Armor
™
storage fluid. Read Long
Term Storage, page 23.
o preserve paint in hose, trigger gun into paint pail
to expel the remaining paint.
ti8909a
ti13960a
ti5580a
ti12942a
WASTE
WATER or
SOLVENT
ti8908a
ti13961a
ti2018a

Graco MAGNUM PROJECT PAINTER PLUS Specifications

General

Type	Airless Paint Sprayer
Maximum Pressure	2800 PSI
Flow Rate	0.24 GPM
Weight	15 lbs
Power Source	Electric
Maximum Flow Rate	0.24 GPM
Voltage	120V
Maximum Tip Size	0.015 in
Hose Length	25 ft
Spray Tip Size	0.015 in
