Graco Magnum True Airless X5 User Manual

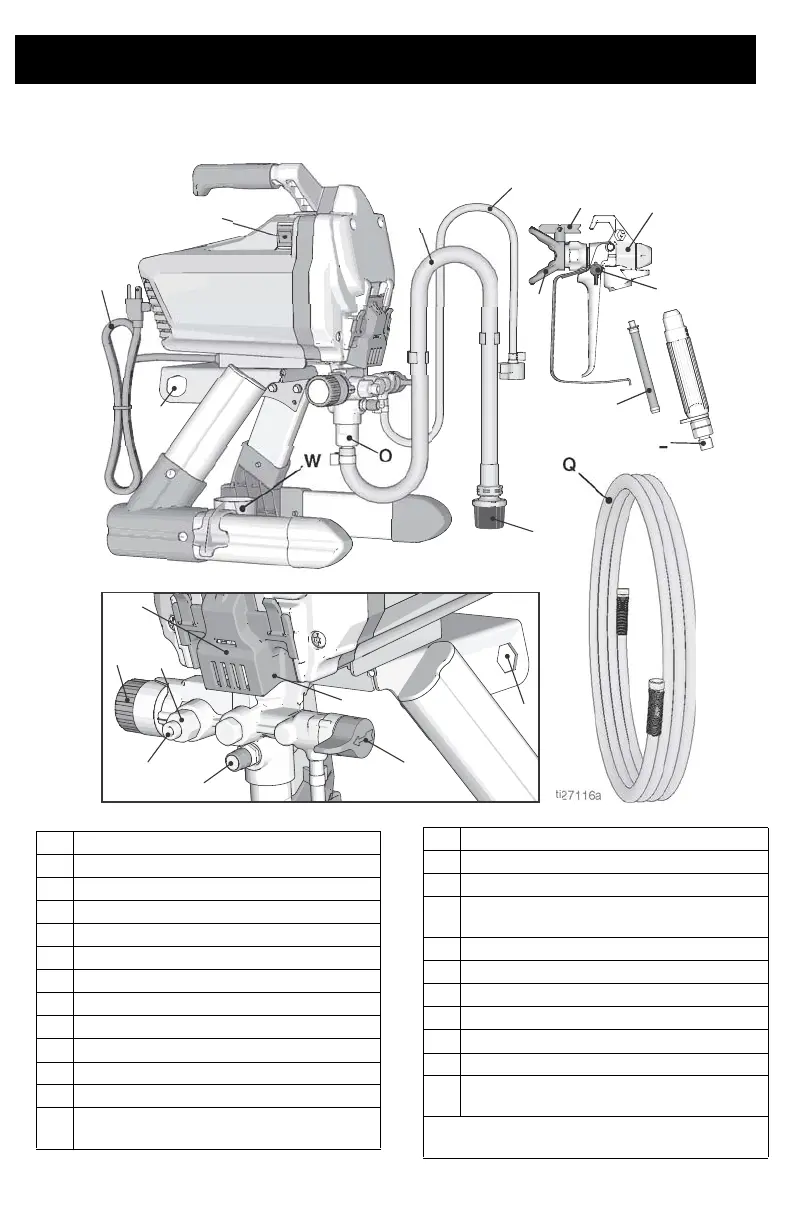

Know Your Sprayer
10 3A4416A
ProX Stand Models
R
C
U
Z
T
D
P
A
B
N
V
W
Q
F
E
X
O
K
J
G
H
M
L
A PushPrime™ Button
B Prime/Spray Valve
C Pressure Control Knob
D ON/OFF Switch
E Suction Tube
F Drain Tube (with diffuser)
G Airless Spray Gun
H Reversible Spray Tip
J Tip Guard
K Gun Trigger Lock
LGun Fitting
M Gun Filter (inside handle)
N ProXChange™ Pump (behind Easy
Access Door)
OInlet Valve
P Outlet Valve (airless hose connection)
Q Airless Hose
R InstaClean™ Fluid Filter (inside fluid
outlet)
T Inlet Strainer
U Power Cord
V Easy Access Door
W Suction Tube Drip Cup
X Pump Removal Tool
Z Inlet Valve Removal Tool
Model/Serial Tag (Not shown, located
on bottom of unit.)
See Quick Reference, page 32 for more
information.
