Graco Magnum True Airless X5 - X7 Cart Model Components

Know Your Sprayer
3A4416A 9

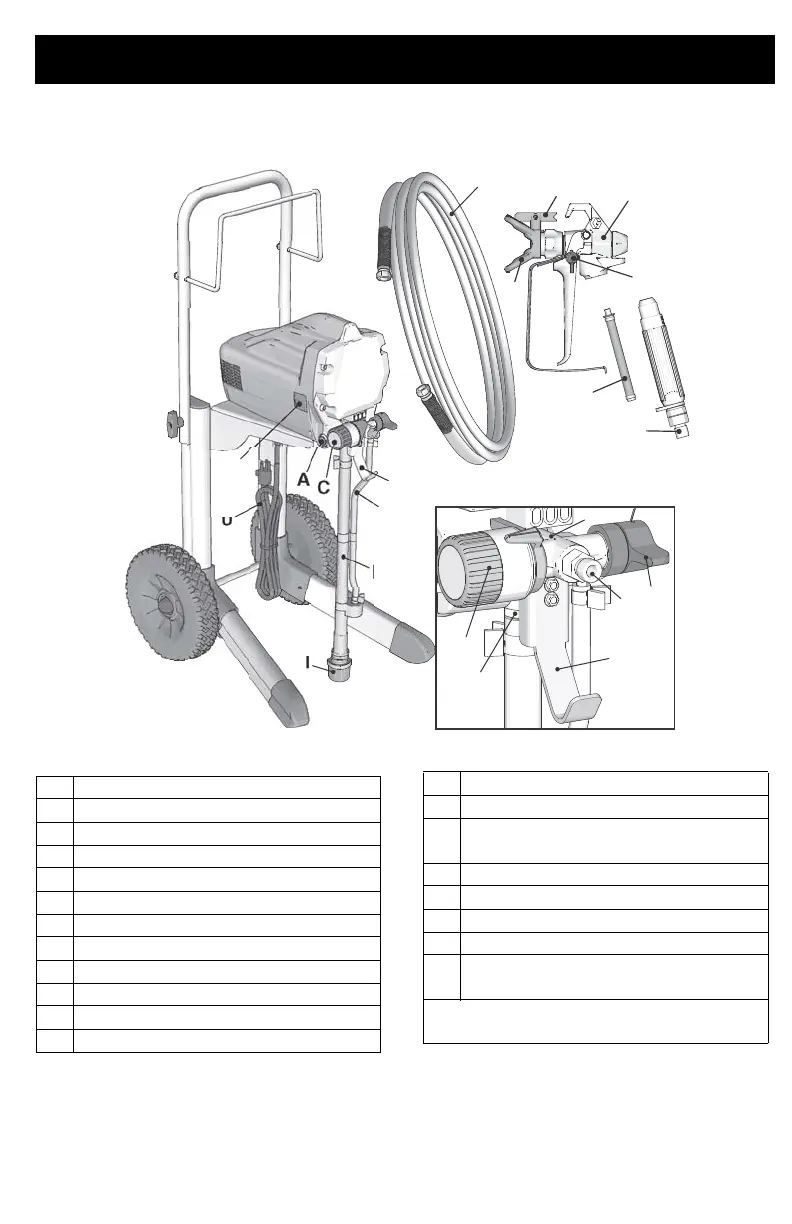

X7 Cart Model
ti30913a
A
C
U
D
T
F
S
S
E
B
N
P
O
C
K
J
G
H
M
L
Q
A PushPrime™ Button
B Prime/Spray Valve
C Pressure Control Knob
D ON/OFF Switch
E Suction Tube
F Drain Tube (with diffuser)
G Airless Spray Gun
H Reversible Spray Tip
J Tip Guard
K Gun Trigger Lock
LGun Fitting
M Gun Filter (inside handle)
NPump
OInlet Valve
P Outlet Valve (airless hose connec-
tion)
Q Airless Hose
S Pail Hanger
T Inlet Strainer
U Power Cord
Model/Serial Tag (Not shown, located
on bottom of unit.)
See Quick Reference, page 32 for more
information.
