Setup

332689D 15

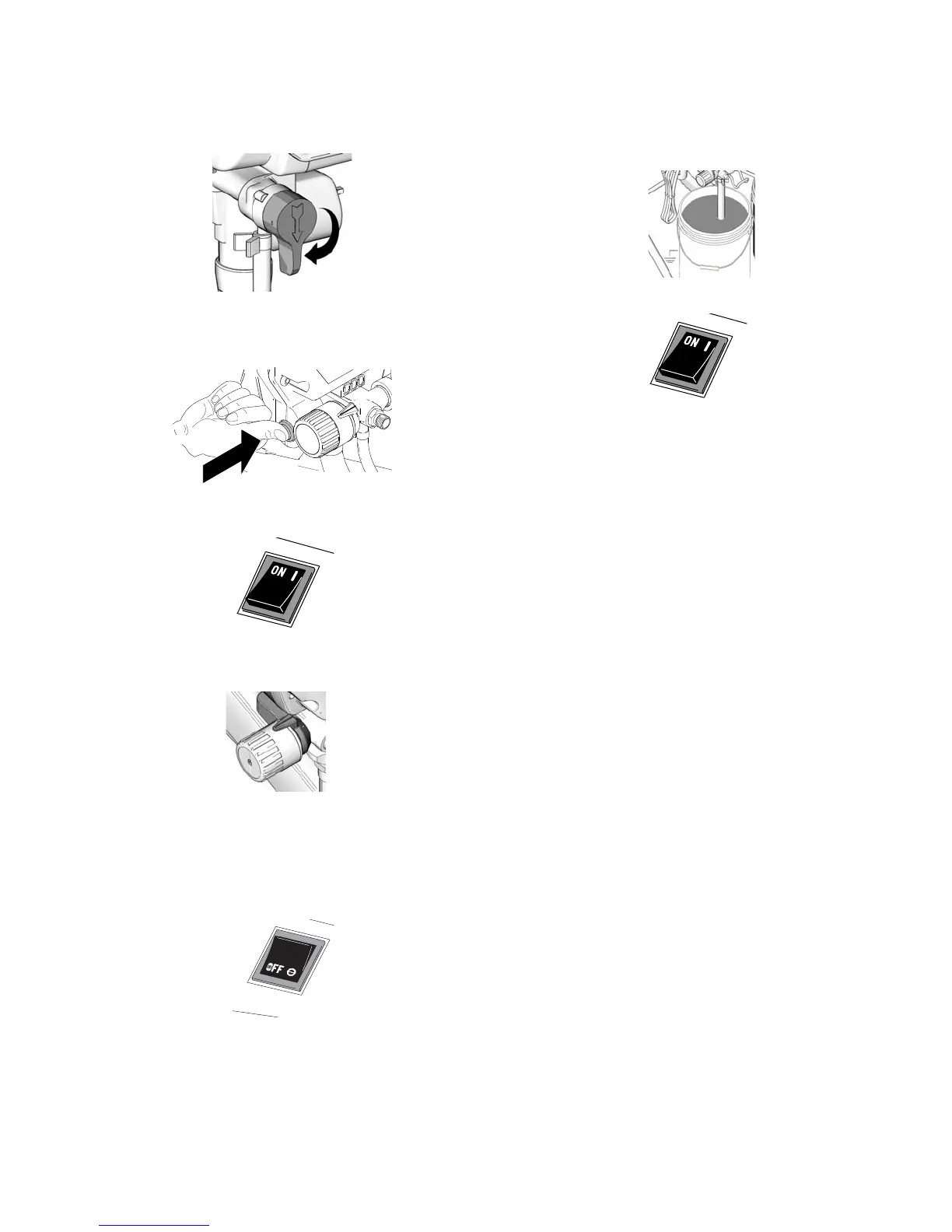

9. Move Prime/Spray Valve to PRIME.

10. Plug sprayer in a grounded outlet.

11. Push pump priming button two times.

12. Turn power switch ON.

13. Align setting indicator with Prime/Clean setting on

Pressure Control knob until pump starts, page 13.

14. When sprayer starts pumping, water and air bub-

bles will be purged from system. Allow fluid to flow

out of prime tube, into waste pail, for 30 to 60 sec-

onds.

15. Turn power switch OFF.

16. Transfer suction tube to paint pail and submerge

suction tube in paint.

17. Turn power switch ON.

ti9346a

ti15972a

X5 and X7 Only

ti5580a

ti9718a

ti2810a

ti9653a

PAINT
