Shutdown and Cleaning

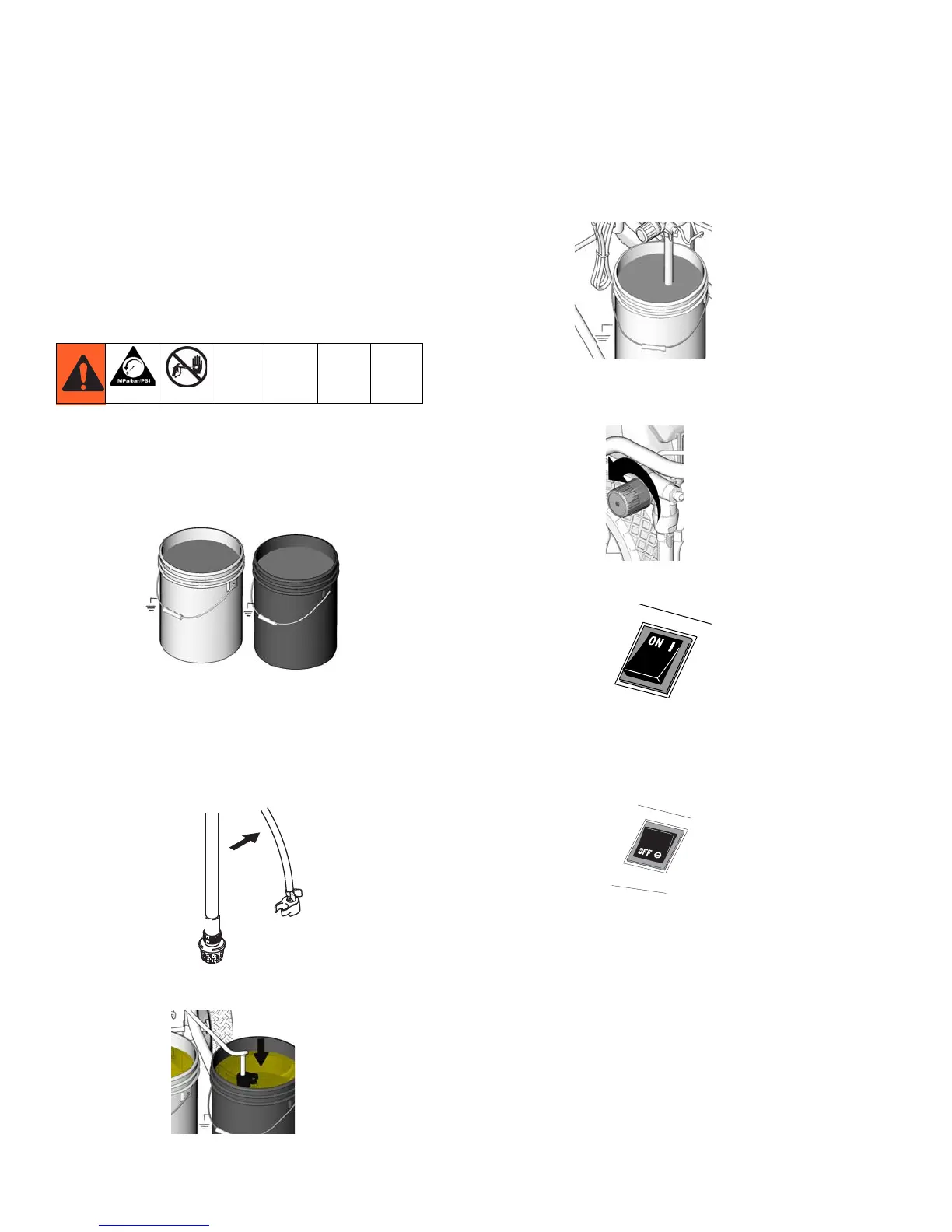

Pail Flushing

• For short term shutdown periods (overnight to two

days) refer to Short Term Storage, page 25.

• Use only water for flushing. Read Priming and

Flushing Storage Fluid, page 14 or Power Flush,

page 22.

1. Relieve pressure, page 13.

2. Remove tip and guard assembly from gun and place

in flushing fluid.

3. Place empty waste and water pails side by side.

4. Lift suction tube and prime tube from paint pail. Let

them drain into paint pail for a while.

5. Separate prime tube (smaller) from suction tube

(larger).

6. Place prime tube in waste pail.

7. Submerge suction tube in water

8. Turn pressure control knob to the Prime/Clean set-

ting.

9. Turn power switch ON.

10. Flush until approximately 1/3 of the water is emptied

from the pail.

11. Turn power switch OFF.

ti9726b

WASTE

WATER

ti2039a

ti9652b

WASTE

ti9651b

WATER

ti9344a

ti5580a

ti2018a
