Pail Flushing
WARNING
See Fire and Explosion
Hazard
on page 2.
See Fluid Injection Hazard
on page 2.
This is the procedure for pail flushing with a compatible
flushing fluid. The assumed starting point for this
procedure is as follows:
D You have just finished spraying.
D System is under pressure.
D Power switch is OFF.
Pail Flushing HINTS:
D
If the flushing fluid is water, use at least 4 gallons
(15 liters).
D Keep the paint pail near. You will need it in Step 6 to
get unused paint out of the hose.
NOTE: In Step 1, the sprayer must be under pressure
for the InstaClean fluid filter system to be activated. If
the sprayer has no pressure, it needs to be primed. See
Priming in the enclosed Operator’s Quick Guide.

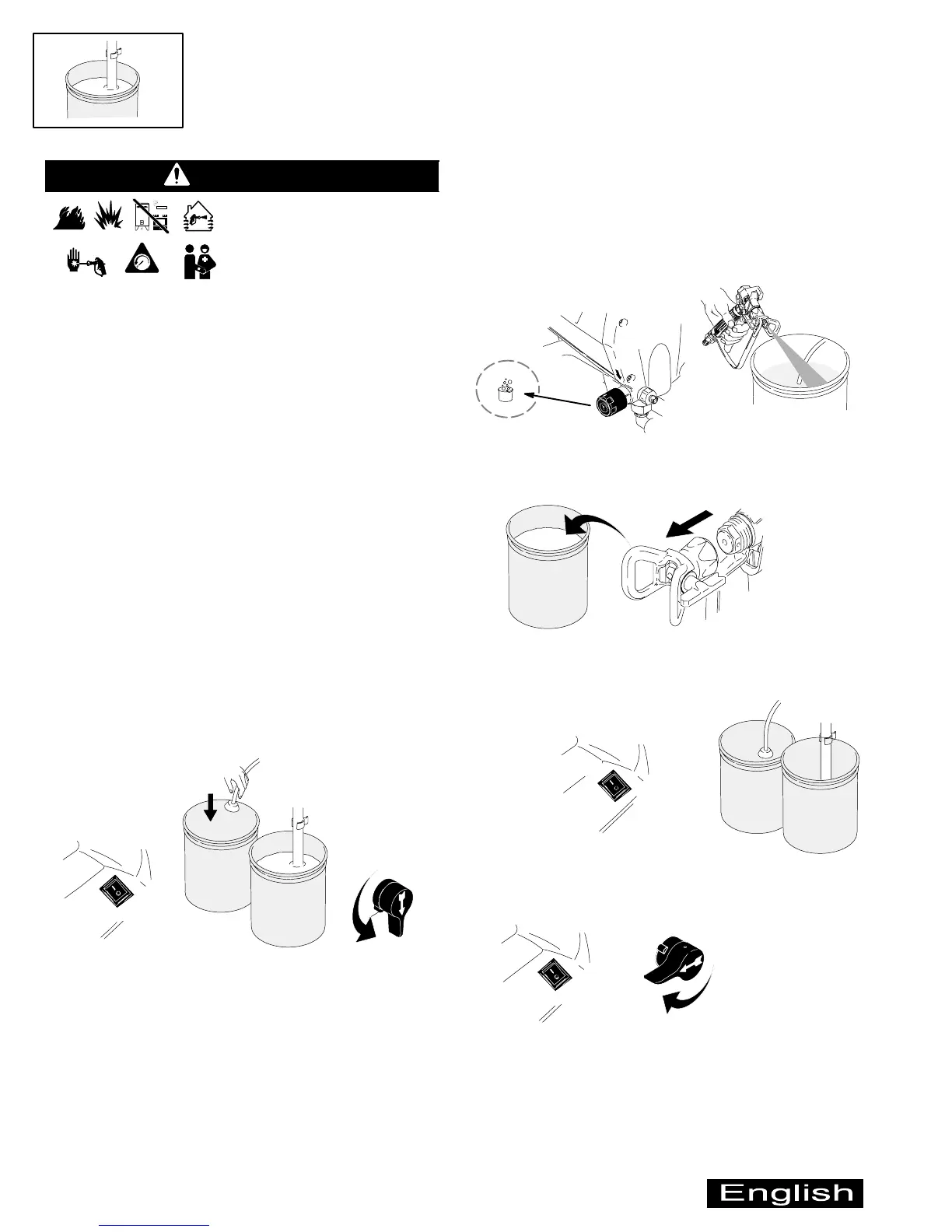

1. With Power switch OFF, lift suction tube and prime
tube from paint pail, and let them drain into paint for
awhile. Place suction tube in flushing fluid pail, and
place prime tube in waste pail. Turn Spray/Prime
valve to PRIME to relieve fluid pressure into waste
pail.
WASTE
FLUSHING
FLUID
9567A
OFF
PRIME
2. Align the bucket symbol on the pressure control
knob and the arrow on the sprayer. Trigger gun into
waste pail to relieve pressure that might be in hose.
NOTE: To minimize splashing, aim gun at inside wall of
empty waste pail.
WASTE
9567A
3. Remove tip & guard assembly from gun, and place
in flushing fluid pail.
FLUSHING
FLUID
9567A
4. Turn Power switch ON. Continue flushing until about
1/3 of flushing fluid is gone from flushing fluid pail.
ON
WASTE
FLUSHING
FLUID
5. Turn Power switch OFF, and turn Prime valve to
SPRAY.
OFF
SPRAY
FLUSH
To Next Page
