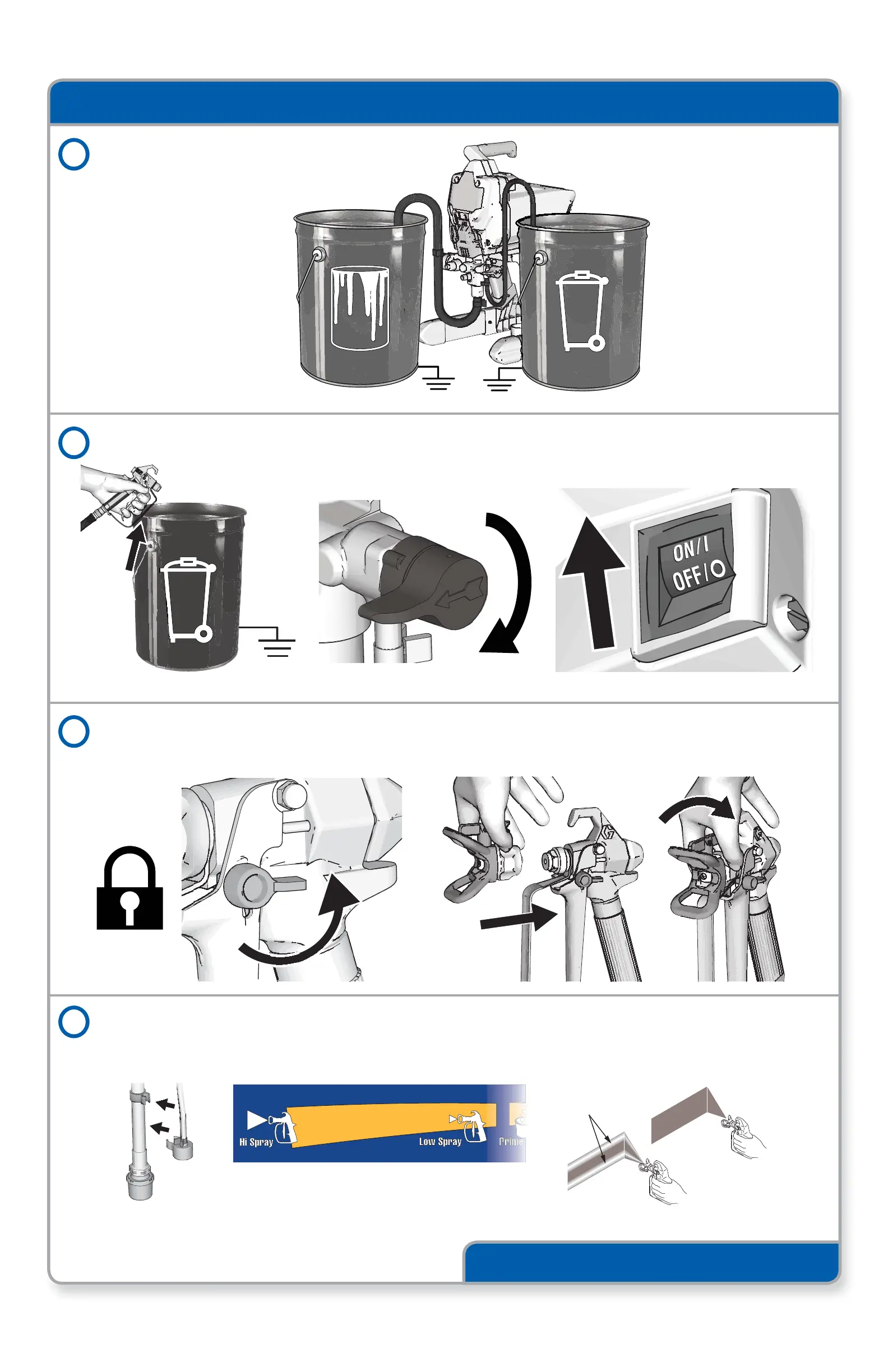

START UP – FILL PUMP, GUN & HOSE WITH PAINT
Trigger gun into waste pail, turn Prime/Spray Valve forward to
SPRAY
and turn Power Switch
ON
.
When paint comes out of the gun, release trigger. Turn gun trigger lock to locked position. Thread spray tip and
guard assembly to gun.
Attach drain tube to suction tube and turn Pressure Control Knob to Spray Setting. Start at lowest
setting and increase until pattern is evenly distributed, no gaps at edge.
YOU ARE NOW READY TO SPRAY!
1
2
3
4
Submerge suction tube in paint. Turn Power Switch
ON
and wait to see paint coming into the drain tube.
Turn Power Switch
OFF
.
1500 psi
103 bar/10.3 MPa
3000 psi
207 bar/20.7 MPa
Good
spray pattern
tails- gaps at edges
pressure
too low
2
To Next Page
