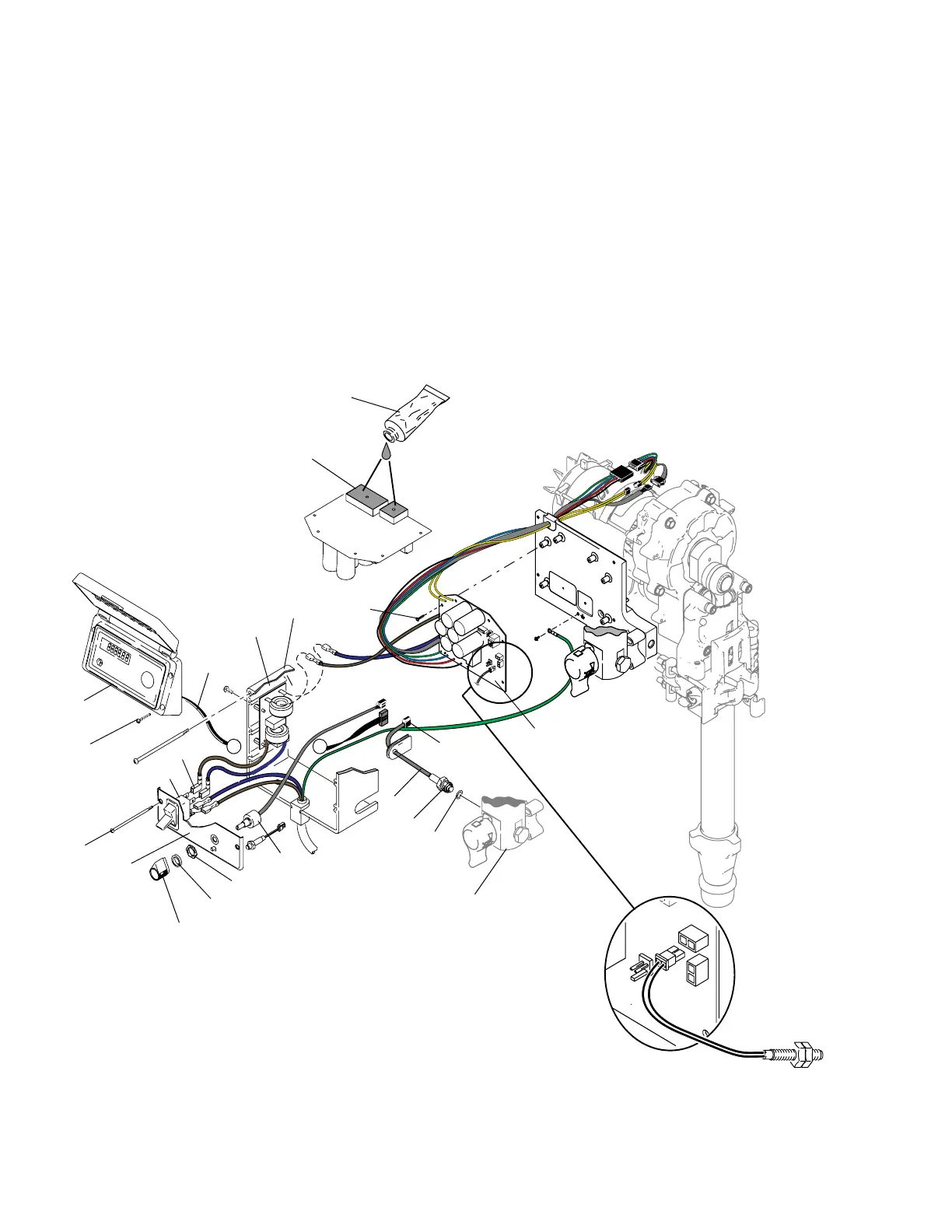

Motor Control Board
22 3A2333B
5. Make switch dip switch is moved to the left (toward
inside of board). See Wiring Diagram, page 36.
6. Connect motor connectors and install into baffle.
7. Connect transducer connector (E) to motor control
board.
8. Connect motor control board power connectors to
filter board (146).
9. Install control box (61) with top two screws (39).
10. Connect filter board power connectors and power
cord connectors (D) to ON/OFF switch (33).
11. Connect potentiometer connector to motor control
board.
12. Connect Fast Flush switch connector to motor con-
trol board.
13. Install control panel (68) with two screws (39).
14. Connect display connector (A) to motor control
board (52).
15. Install cover (96) with four screws (38)
16. Install motor shroud.
A
A
Fast Flush
5
52
61
A
96
38
39
68
34
115
82
82
E
20
80
67
E
27
52
D
33
146
J
ti18442a
