Graco Mark V Premium - Pressure Control Transducer Removal; Steps to Remove Transducer

Pressure Control Transducer
3A2333B 25

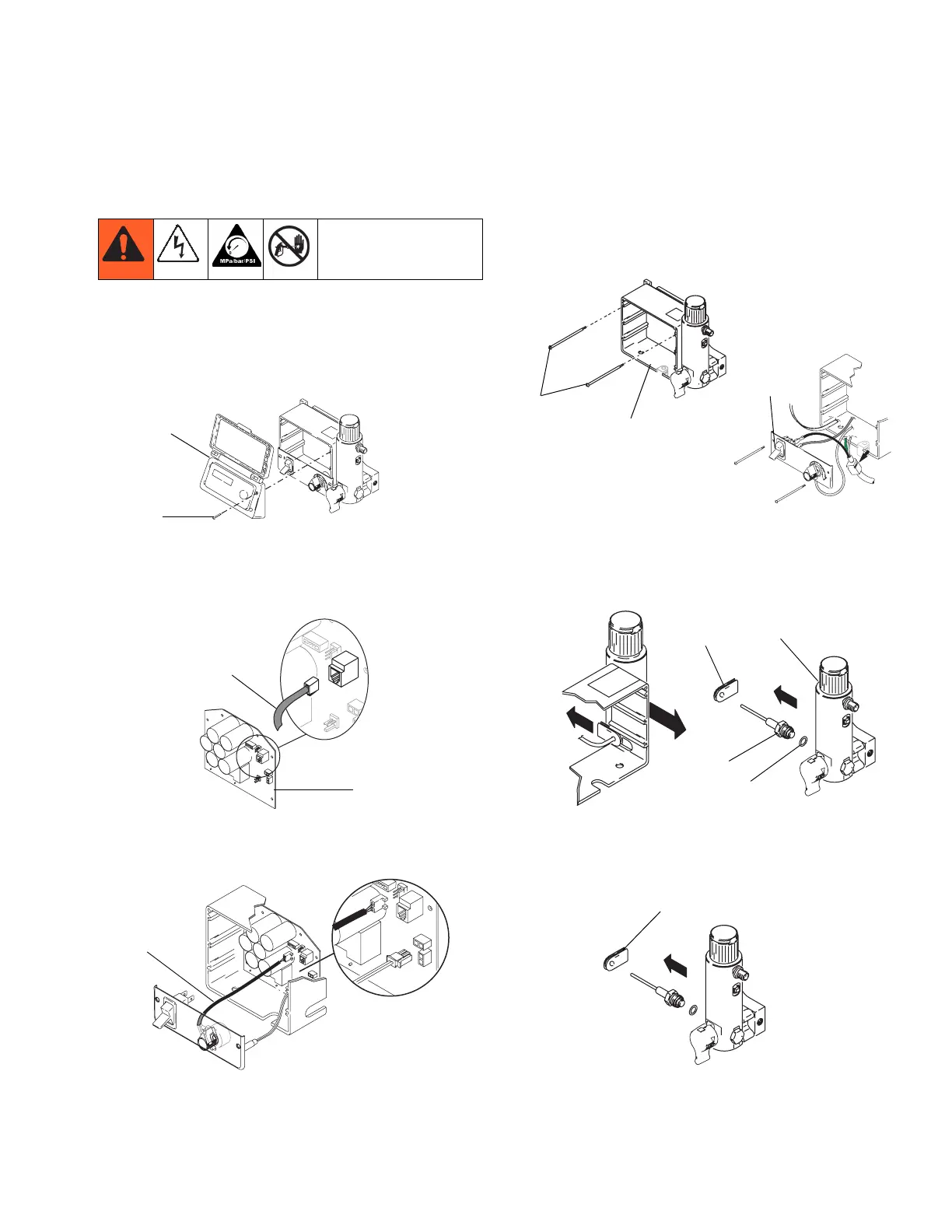

Pressure Control Transducer
Removal
1. Perform Pressure Relief Procedure; page 9. Wait
5 minutes before servicing.
2. Remove four screws (38) and cover (96).
3. Disconnect transducer connector (E) from motor
control board (95).
4. Disconnect potentiometer connector (C), and Fast
Flush switch connector from motor control board.
5. Remove four screws (39), control panel (68), and
control box (61). Allow control panel (68) to hang
down freely.
6. Remove grommet (40) from control box then
remove transducer (86) and o-ring (20) from filter
base (67).
7. Remove grommet (40) from transducer and save for
reuse.
38
96
ti13493b
E
95
ti12999a
C
ti13722b
39
61
68
ti13494a
ti7458b
ti7260a
67
86
20
40
ti13495a
40
ti13495a
