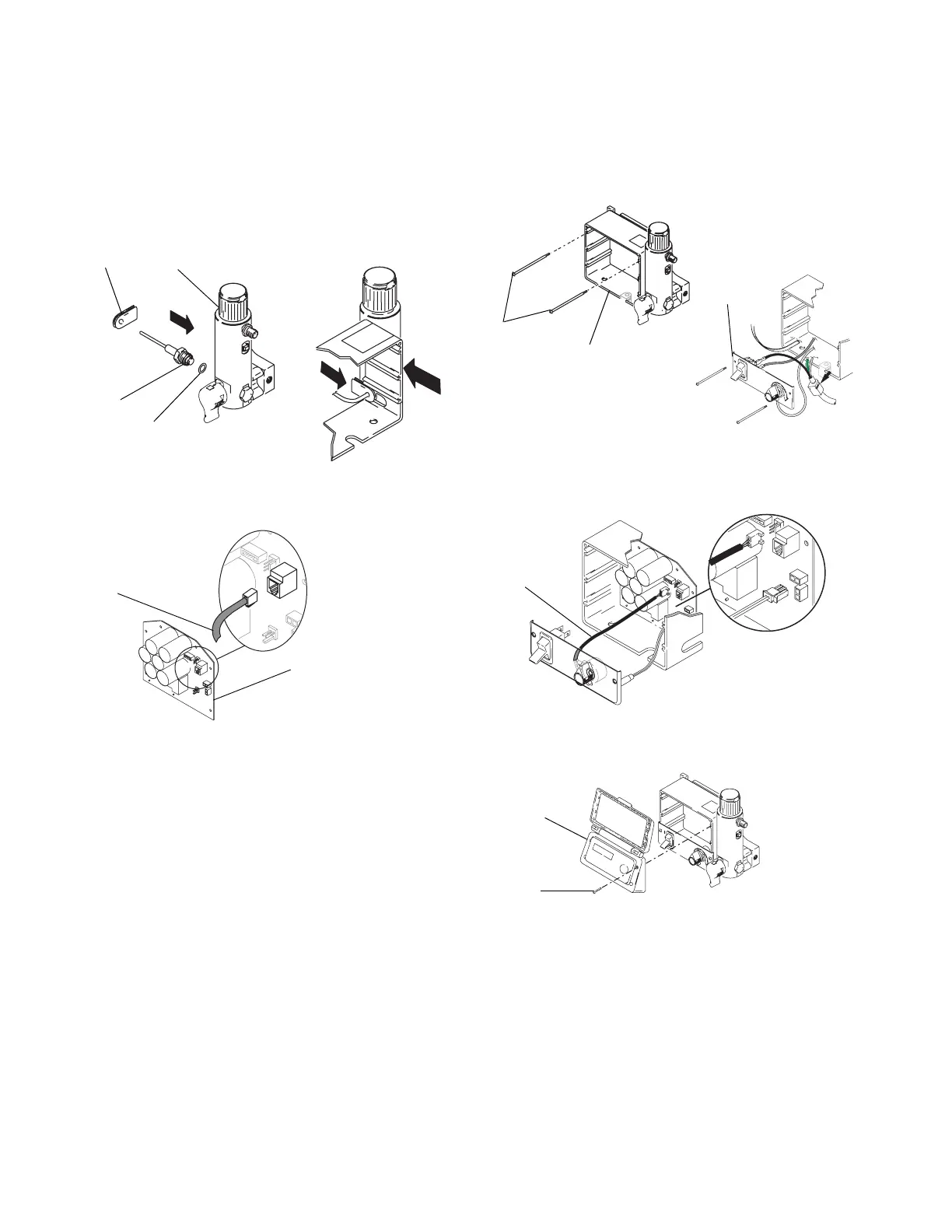

Pressure Control Transducer
26 3A2333B
Installation
1. Install o-ring (20) and transducer (86) in filter base
(67). Torque to 35-45 ft-lb (47-61 N•m). Install grom-
met onto transducer (86) and transducer into control
box.
2. Connect transducer connector (E), and Fast Flush
switch connector to control board (95).
3. Install control box (61) and control panel (68) with
four screws (39).
4. Connect potentiometer connector (C), and Fast
Flush switch connector to control board.
5. Install cover (96) with four screws (38).
ti7447a
40
67
20
86
ti13496a
E
95
ti12999a
39
61
ti13494a
68
C
ti13722b
38
96
ti13493b
