Displacement Pump Replacement 1095/1595/Mark V
34 3A0157A
Displacement Pump Replacement 1095/1595/Mark V

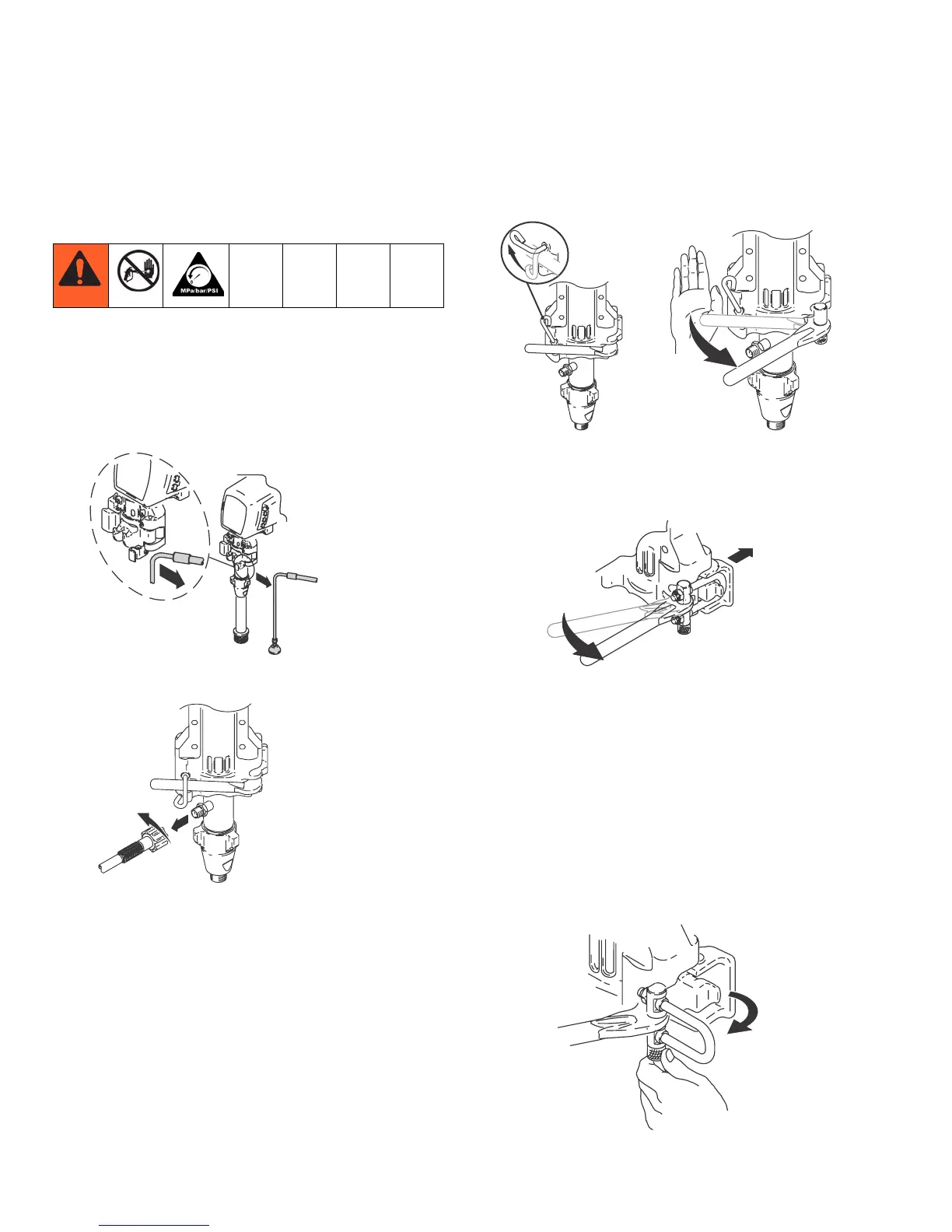

Removal
1. Flush pump.
2. Stop pump with piston rod in its lowest position.
3. Perform Pressure Relief Procedure, page 8.
4. Separate drain hose from sprayer.
5. Disconnect paint hose from pump.
6. Raise latch lock. Push latch open.
7. Ratchet open pump door.
a. Ratchet pump door forward.
b. Twist latch u-bolt out of pump door recess.
c. Place u-bolt on pump door outer edge.
d. If pump door is stuck, do steps e, f, and 8, other-
wise go to step 9.
e. Twist latch u-bolt back from pump door outer
edge.
ti6300a
ti6369a
ti6370a
ti6373a
