Graco MARK V Instruction Manual

Hose Reel
3A0157A 37

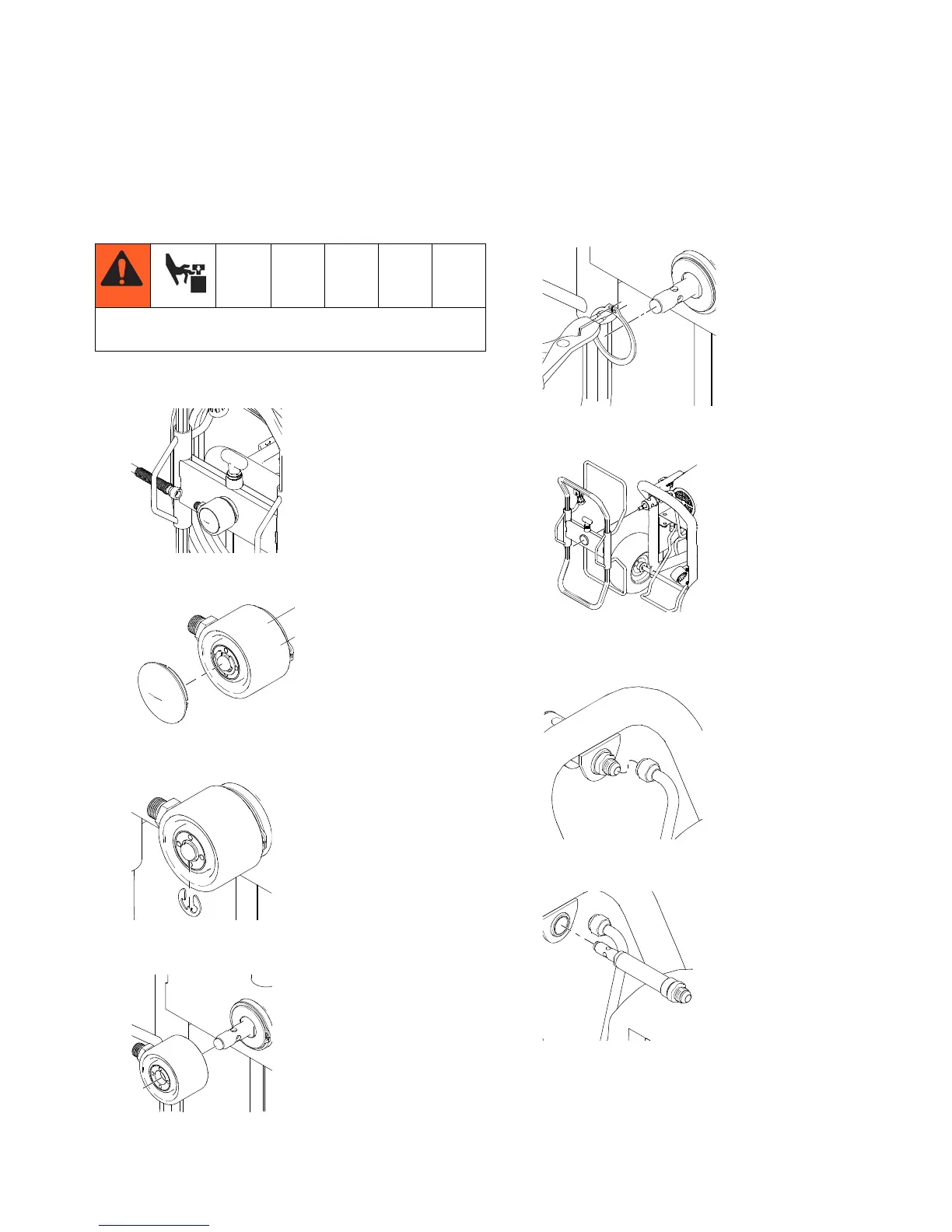

Hose Reel
Removal
1. Remove hose fitting from swivel cap and completely
remove hose.
2. Remove cap from swivel.
3. Remove E-clip from swivel shaft.
4. Remove swivel.
5. Remove snap ring.
6. Remove hose reel.
7. Remove rigid fluid tube from swivel shaft (if neces-
sary).
8. Remove swivel shaft (if necessary).
Be sure to keep your head clear of hose reel while
winding up hose.
ti13539a
ti13675a
ti13538a
ti13543a
ti13542a
ti13540a
ti13541a
ti13544a
