Displacement Pump Replacement 1095/1595/Mark V
36 3A0157A

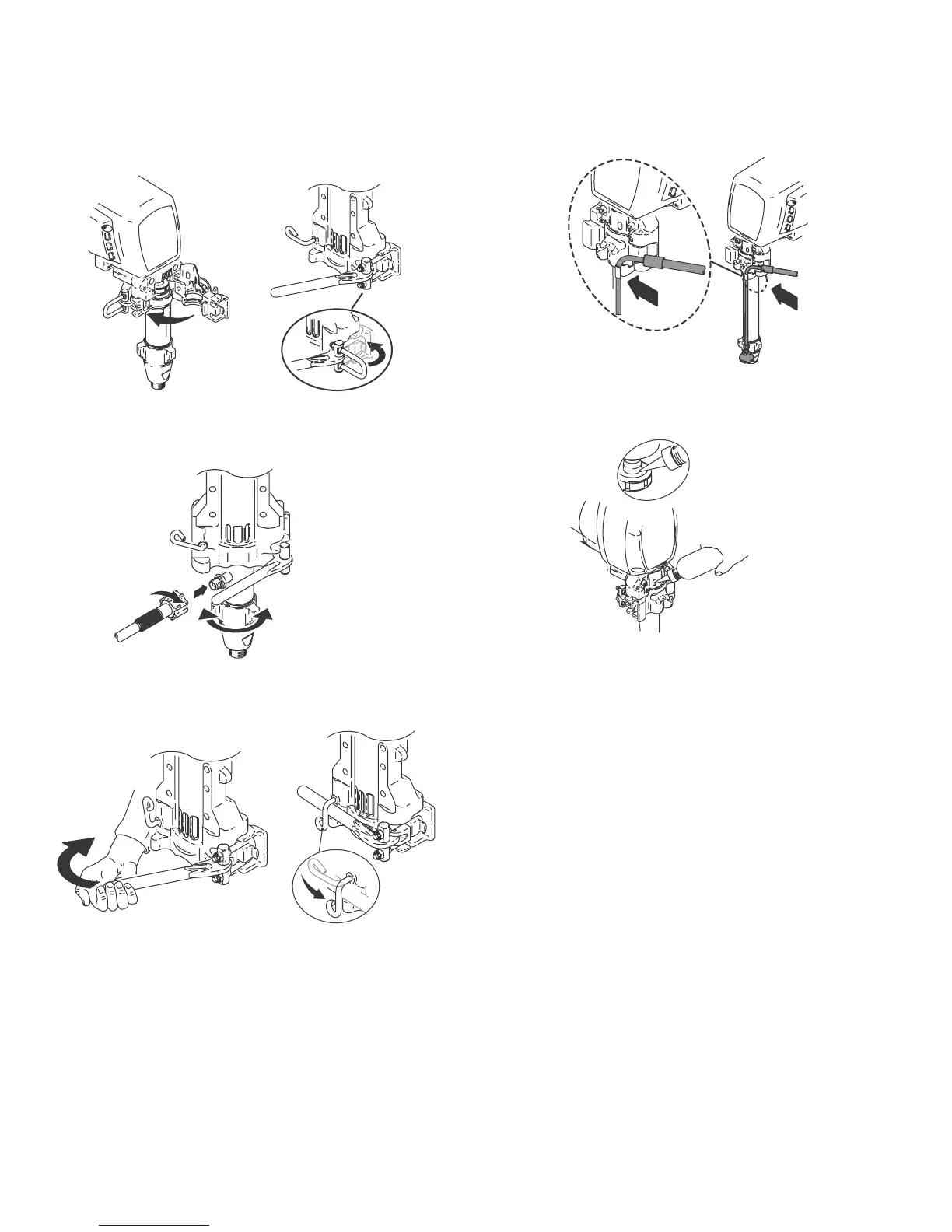

4. Close pump door and rotate latch into position. Do
not tighten latch.
5. Rotate pump to align with paint hose. Connect paint
hose and hand tighten to 70 in-lb.
6. Tighten latch and rotate latch lock into locked posi-
tion.
7. Attach drain hose to sprayer.
8. Fill pump with Graco TSL until fluid flows onto top of
seal.
ti7329a
ti6313a
ti6299a
ti6204a
TI6312a
ti7330a
ti5493a
