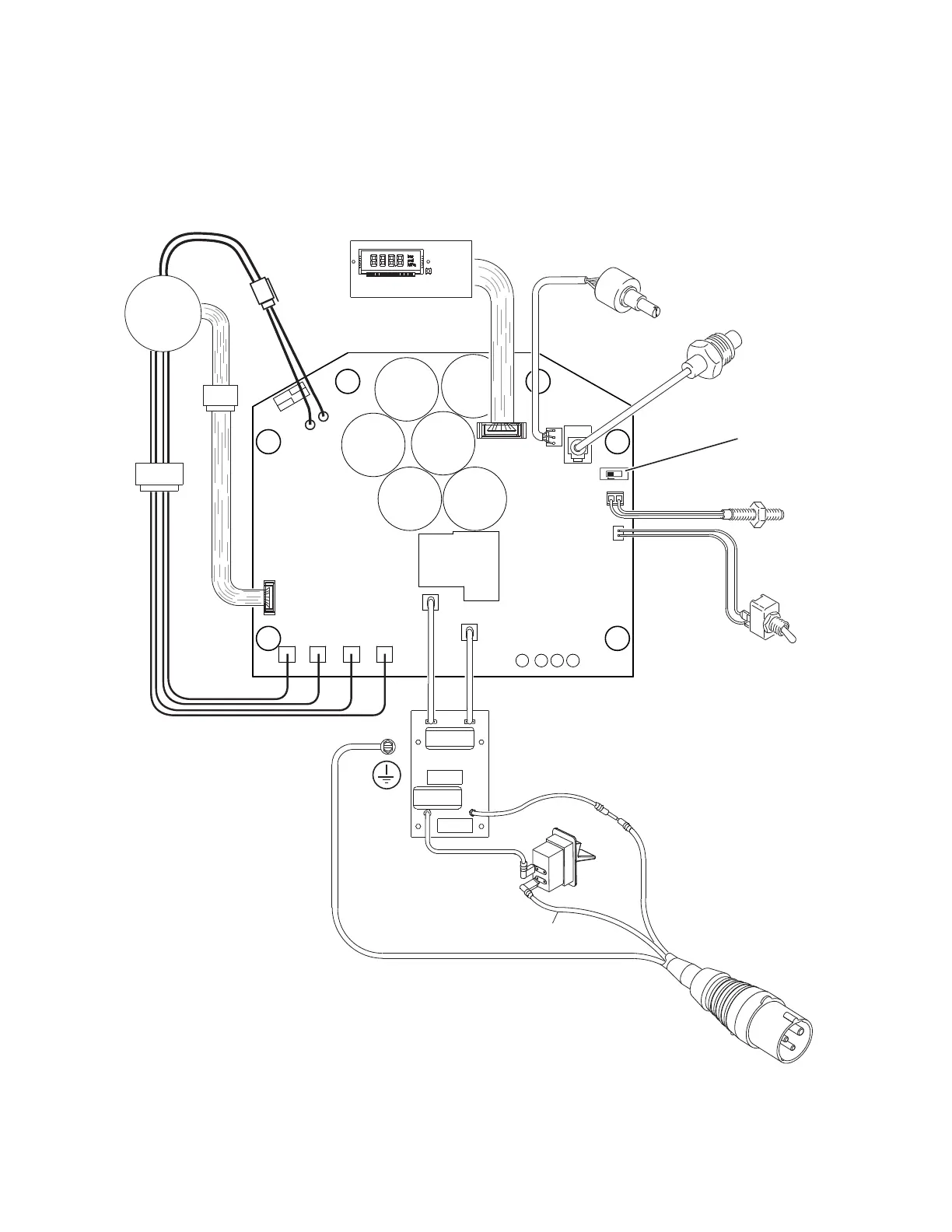

Wiring Diagram
42 3A0157C
240V Models:
Black
Pressure
Transducer
Digital Display
ON/OFF
Switch
Power Plug
Motor
green/ground
Potentiometer
AutoClean
Watchdog
Motor
Leads
Motor
Sensor
Leads
Thermal
Switch
Black
Blue
Blue
Brown
Brown +
Blue
ON
Dip Switch
ti13485a
