Hose Reel
38 3A0157C

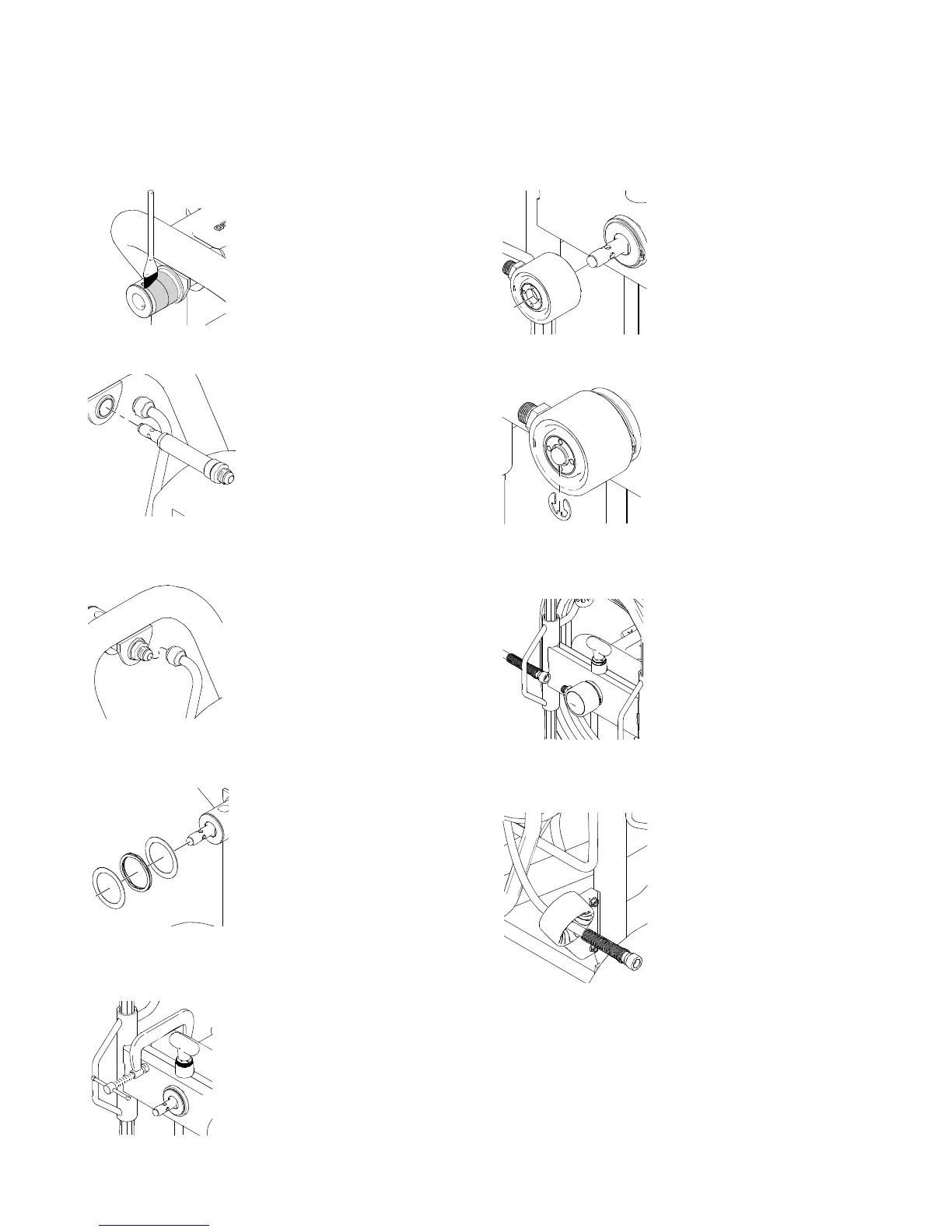

Installation
1. Grease shaft.
2. Make sure two washers and wave spring are on hub
before hose reel is installed.
3. Install hose reel onto frame. Place C-clamp on reel
and frame to allow snap ring to fit into place. Install
snap ring.
4. Install swivel.
5. Install E-clip and swivel cap.
6. Install hose to swivel. Make sure to route hose
through side arm of hose reel.
7. Turn hose reel clockwise to wrap up hose. Make
sure hose is routed through hose guide.
