Graco Monark K Series Instructions-Parts List

17
307043

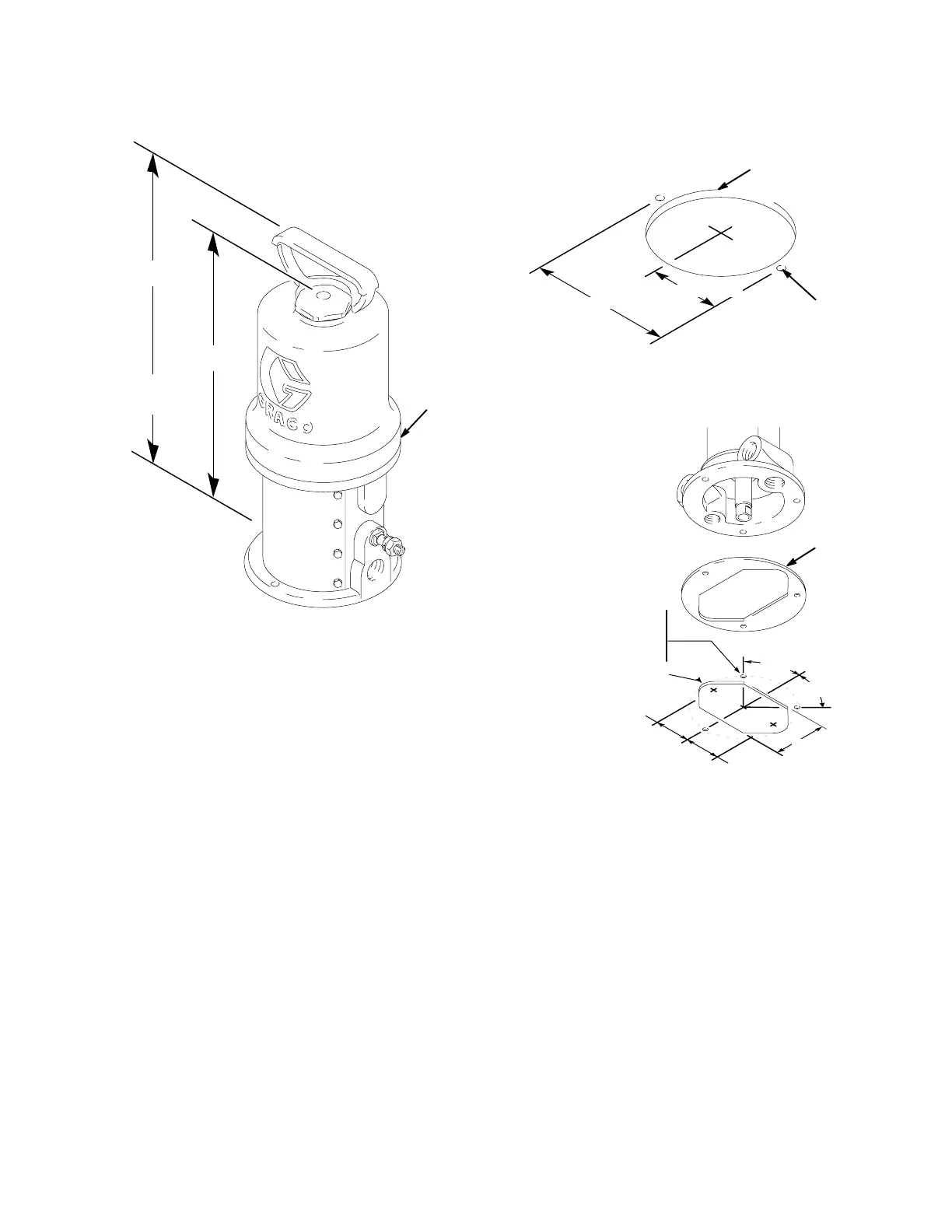

Dimensional
Drawings
05709
11.75 in.
(298.4 mm)
13.25 in.
(336.6 mm)
15.75 in.
(400.1 mm)
for 206955
5.75 in.
(146.1 mm)
Mounting Hole
Layouts
Three 0.34 in. (8.6 mm)
diameter holes
on 6.38 in. (162.1 mm) bolt
circle
3 Tie Rod Pumps
05707
05708
45_
45_
2.5 in. (64 mm)
2.5 in.
(64 mm)
4 in. (102 mm)
1 in. (25 mm)
radius
161322
gasket
5 in. (127 mm)
2.5 in. (64 mm)
2 Stanchion Tube Pumps
0.28 in. (7.1 mm)
diameter
4.38 in. (111.3 mm)
diameter
Technical Data
Maximum Working Pressure
180 psi (12 bar, 1.2 MPa). . . . . . . . . . . . . . . . . . . . . . . . . .
Effective piston area 7 in.
2
(45 cm
2
). . . . . . . . . . . . . . . .
Effective piston diameter 3 in. (76 mm). . . . . . . . . . . . .
Stroke 3 in. (76 mm). . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sound Data*
Sound Level at 180 psi, 25 cycles/min: 96 dBa. . . . . .
Sound Power at 180 psi, 25 cycles/min: 112 dBa. . . .
Air Valves Urethane. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Valve mechanism Balanced; detented. . . . . . . . . . . . . .
Seal Nitrile rubber. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Approximate weight 13 lb (5.9 Kg). . . . . . . . . . . . . . . . . .
* Tested in accordance with ISO 3744.
