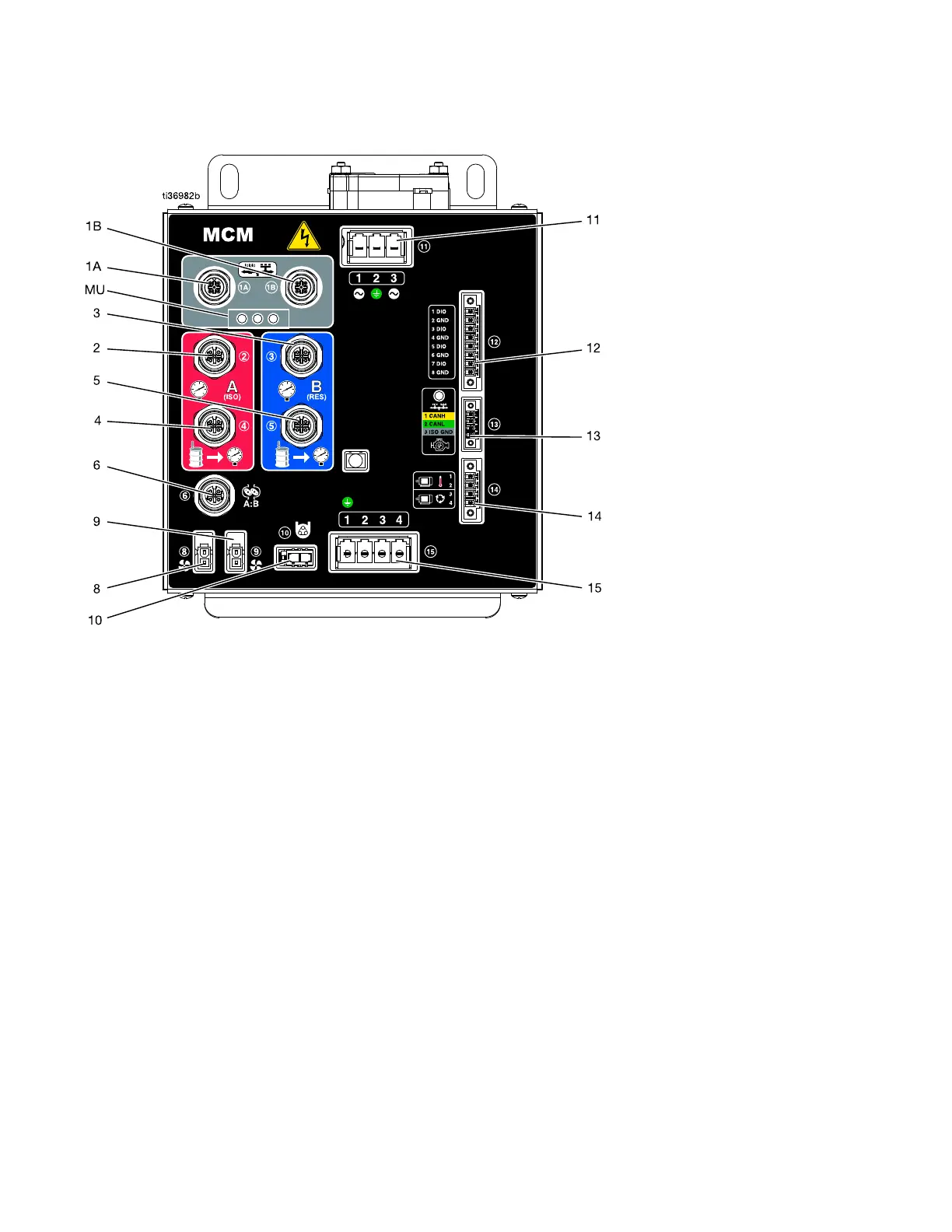

Graco Reactor 3 E-XP1 - Motor Control Module (MCM)

ComponentIdentication
Motor Motor
Motor
Control Control
Control
Module Module
Module
(MCM) (MCM)
(MCM)
ti36 982b
1A
1B
2
3
5
4
6
9
8
10
15
14
13
12
11
MU
Ref. Ref.
Ref.
Description Description
Description
Ref. Ref.
Ref.
Description Description
Description
1A
9
MotorFan
1B
CANCommunicationConnections
10
ISOLubePumpOutput
2
A-SidePumpOutletPressure
11
MainPowerInput
3
B-SidePumpOutletPressure
12
DigitalInputs/Outputs
4
A-SidePumpInletPressure
13
EngineJ1939CANConnection
5
B-SidePumpInletPressure
14
MotorTemperatureandCycleSwitch
6
FlowMeterInputs
15
MotorOutput
8
TransformerFan
MU
MCMLEDStatusLights
22
3A8500E
