Graco Reactor A-25

Repair
30 3A1570L

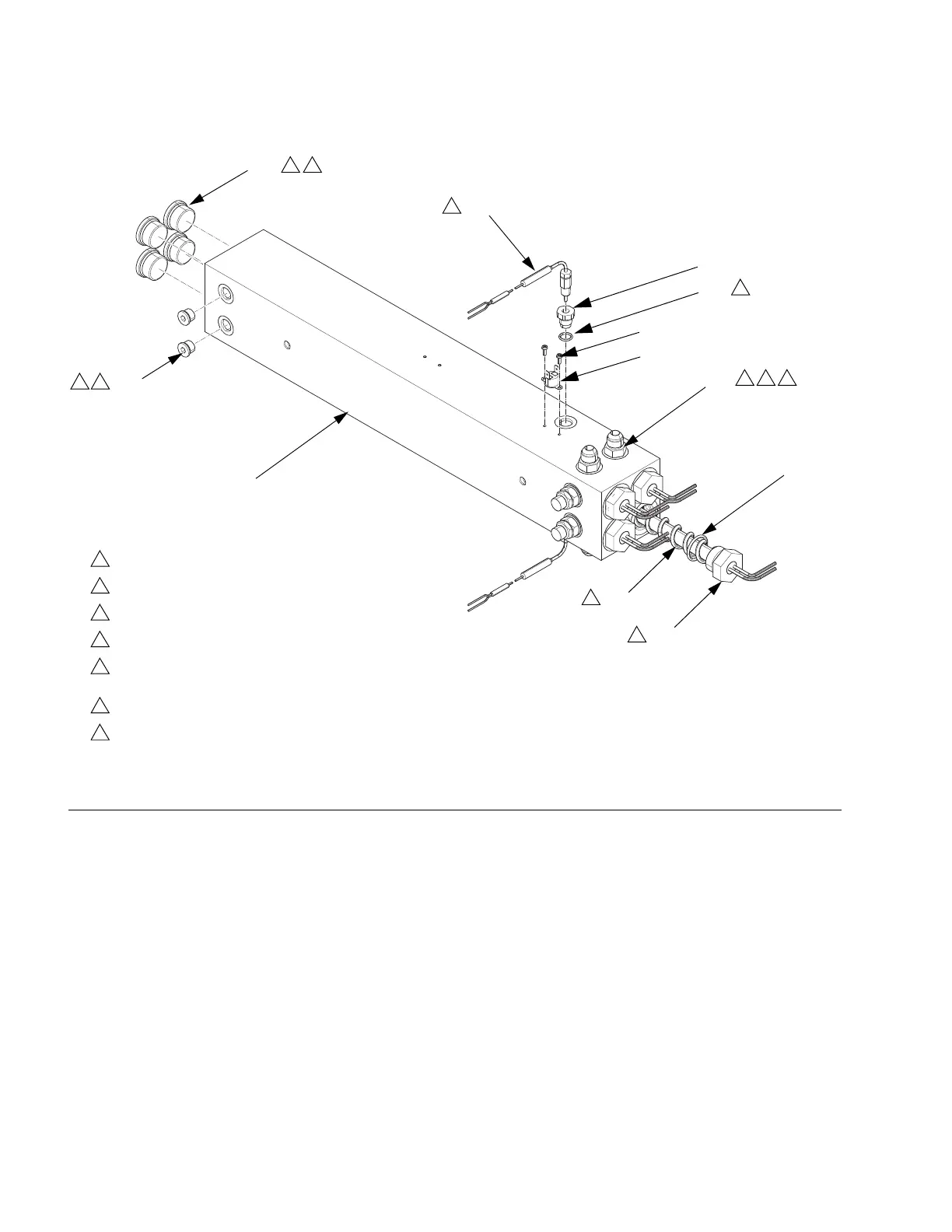

FIG. 7. 6 or 10 kW Dual Zone Heater
1
351
361
354
357
356
362
359
352
358
360
355
353
Torque to 120 ft-lbs (163 N•m).
Torque to 23 ft-lbs (31 N•m).
Torque to 40 ft-lbs (54 N•m).
Apply 110009 thermal heatsink compound.
Apply sealant and PTFE tape to all non swiveling
and threads without o-rings.
Apply lubricant to o-rings.
Orient rupture disc housing (369) with exhaust
hole pointing towards the bottom of the heater.
1
2
3
4
5
6
7
6
3 6 7
6
5
1 6
2 5
ti17998a
