Parts
3A1570L 43

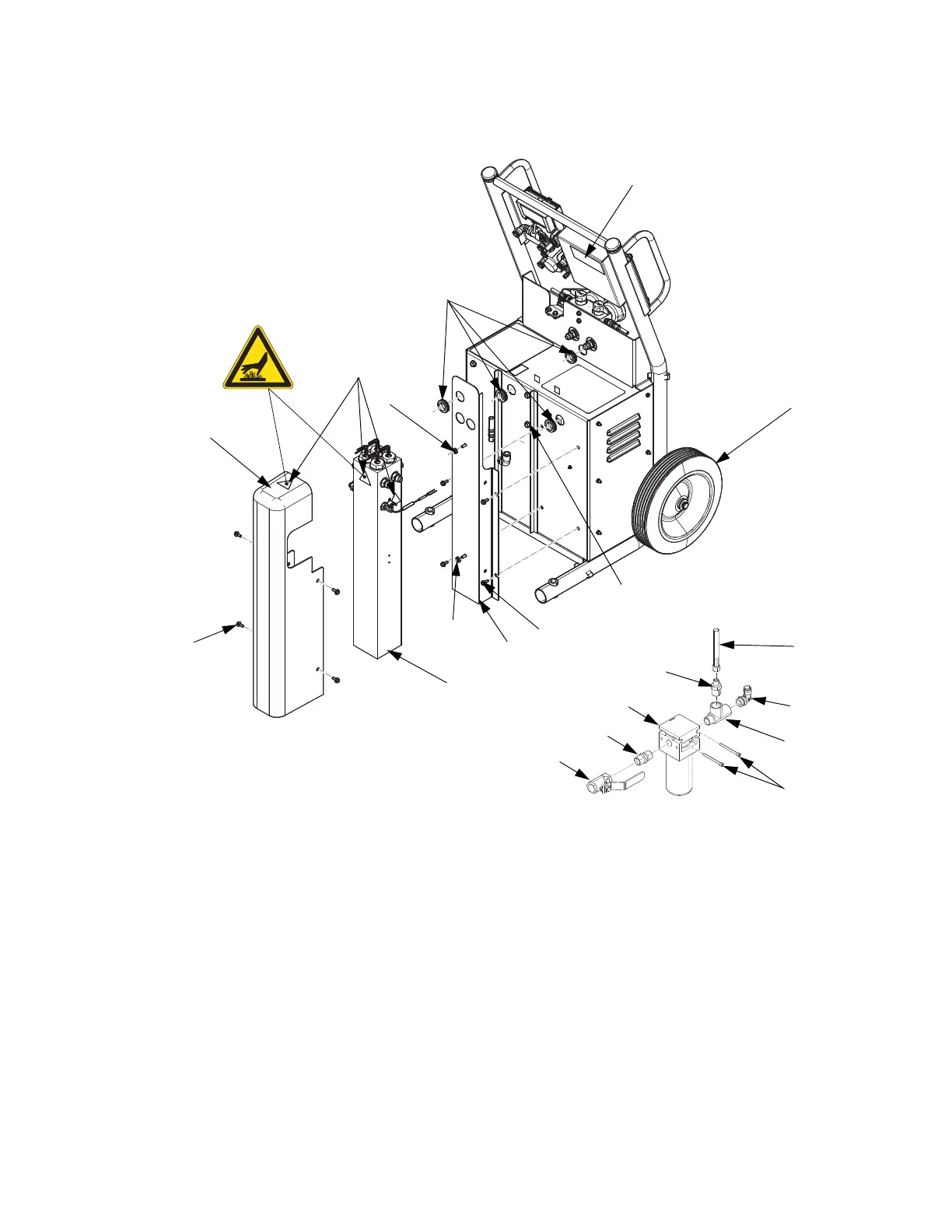

262572, Bare Reactor A-25 / 24Y164, Bare Reactor A-XP1
262614, Reactor A-25 with DataTrak and Wheels / 24Y165, Reactor A-XP1 with DataTrak and Wheels
34
13 (x4)
60
5
33
13 (x4)
12
49
49
83
30
29
28
80
27
31
32
ti18007a
98
37
10
Ref. Part Description Qty.
1 --- CART 1
2 262573 PUMP (A-25); see page 49 1
24Y086 PUMP (A-XP1); see page 49
3 262577 MANIFOLD (A-25), relief; see page
47
1
24Y177 MANIFOLD (A-XP1), relief; see page
47
4 --- PANEL, control, heater;
see page 46
1
5 24J788 HEATER (A-25), system, (6.0kw,
230v); see page 48
1
24Y163 HEATER (A-XP1), system, (6.0kw,
230v); see page 48
6 262575 PANEL (A-25), control; see page 45 1
24Y167 PANEL (A-XP1), control; see page 45
7 262576 MODULE (A-25), breaker; see page
51
1
24Y166 MODULE (A-XP1), breaker; see page
51
8 247840 TRANSFORMER, 2790va, 230/62 1
9 111799 SCREW, cap, hex hd; M8 x 1.25 8
10 108296 SCREW, mach, hex wash hd; 1/4-20
UNC-2A
4
11 125621 SCREW, machine, hex washer, hd;
M6 x 1
6
12 16G917 BRACKET, heater 1
