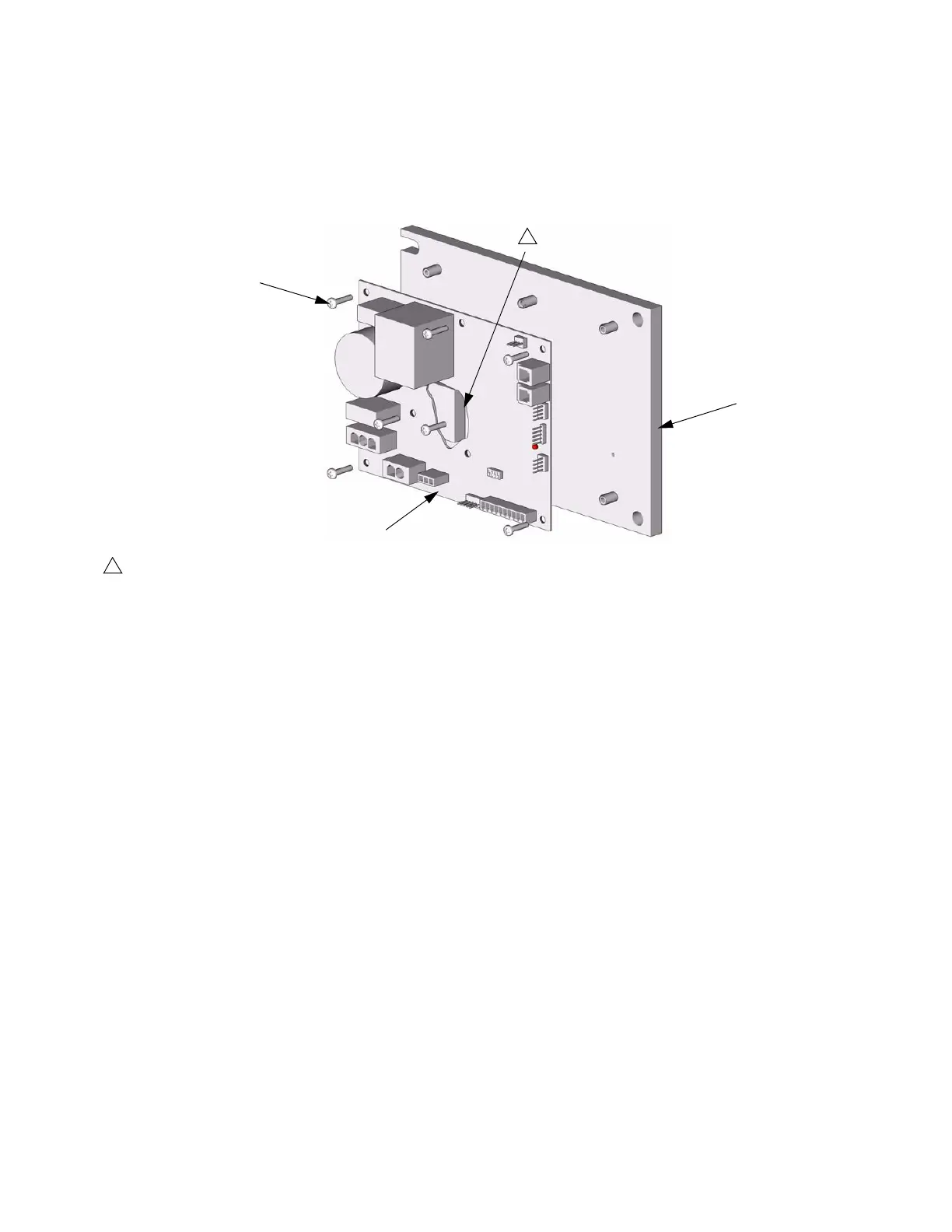

Reactor Assembly
309574L
65
Motor Contr
ol
245980 Motor Control,
f
or E-20 and E-XP1
TI3153A
602
603
601
1
Apply 110009 thermal heatsink compoun
d to mating surfaces
.
1
Ref.
No.
Part No.
Description
Qty
601
15B2
97
HEA
T SINK
1
602
246
195
BOARD
, motor control
1
603
107
156
SCREW
, machine; 6-32
7
64
66
Table of Contents
Default Chapter
2
Table of Contents
2
Models
3
Manual Conventions
4
Supplied Manuals
4
Related Manuals
5
Warning
6
Before Beginning Repair
8
Flushing
8
Pressure Relief Procedure
9
Temperature Control Diagnostic Codes
10
E01: High Fluid Temperature
10
E02: High Hose Current
11
E03: no Hose Current
11
E04: Fluid Temperature Sensor (FTS) or "A" or "B" Thermocouple Not Connected
13
E05: Board Overtemperature
14
Motor Control Diagnostic Codes
15
Alarms
15
Warnings
15
E21: no Component a Transducer
16
E22: no Component B Transducer
16
E23: High Pressure
16
E24: Pressure Imbalance
16
E25: High Line Voltage
18
E26: Low Line Voltage
18
E27: High Motor Temperature
18
E28: High Current in Motor
18
E29: Brush Wear
19
Communication Diagnostic Codes
19
E30: Momentary Loss of Communication
19
E99: Loss of Communication
19
Troubleshooting
20
Repair
24
Pump Removal
24
Pump Installation
26
Drive Housing
28
Motor Brushes
30
Circuit Breaker Module
32
Electric Motor
33
Motor Control Board
34
Transducers
36
Temperature Control Board
38
245979 Temperature Control Board
39
Heater
40
Heated Hose
43
Fluid Temperature Sensor (FTS)
44
Display Module
50
Parts
53
Reactor Assembly
55
Common Parts
55
Parts that Vary by Model
56
248669 Conversion Kit
72
Technical Data
73
Graco Standard Warranty
74
Graco Information
74
