Graco REACTOR E-XP1

Reactor Error Code Trouble Shooting Guide
Rev 2.6 (02/2014) Page 29

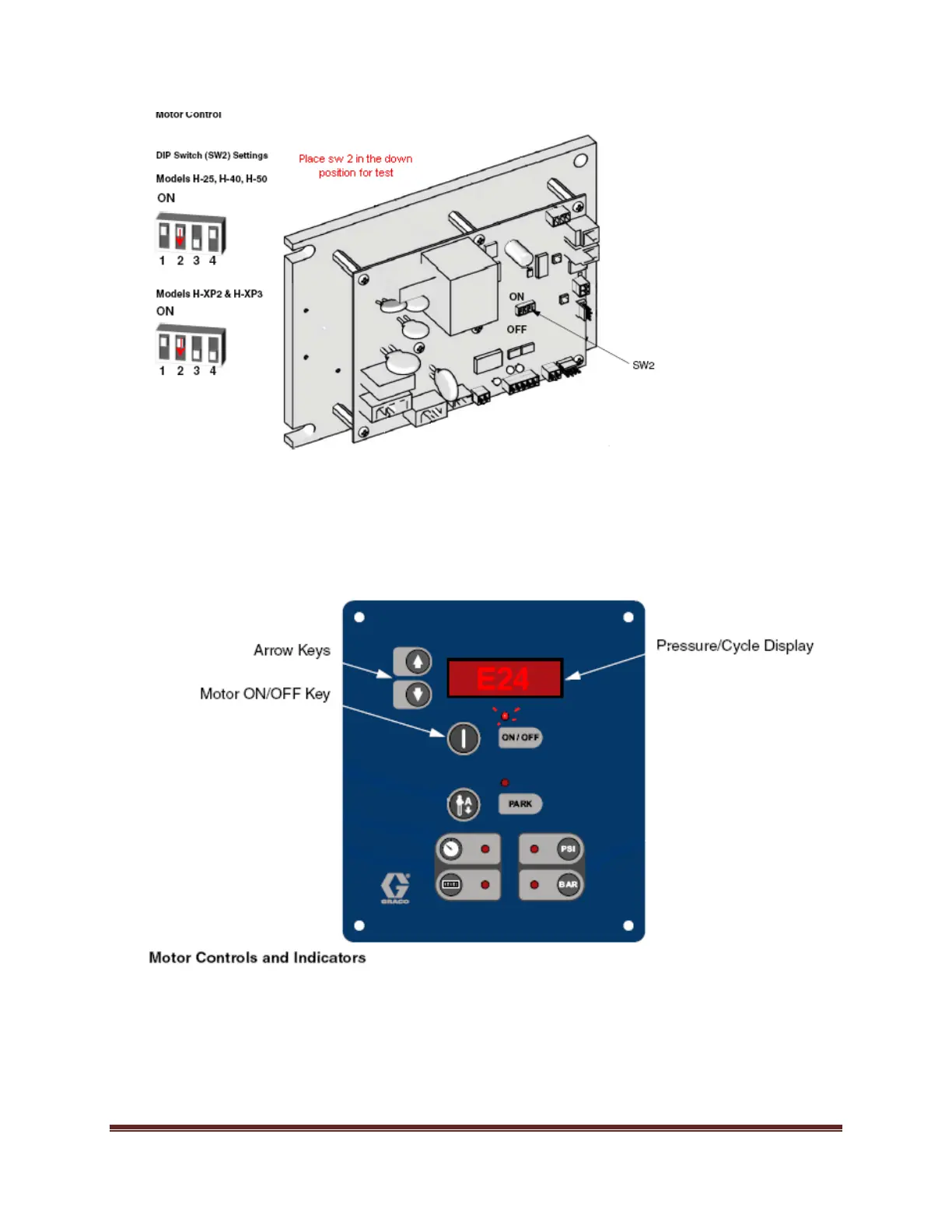

 Run the unit to build up pressure (1000 – 1200 psi) with the motor ON
key. When the machine then stalls at set pressure, press the motor OFF
key to clear the E24 warning, but don’t depressurize the unit.
