Reactor Error Code Trouble Shooting Guide
Rev 2.6 (02/2014) Page 7

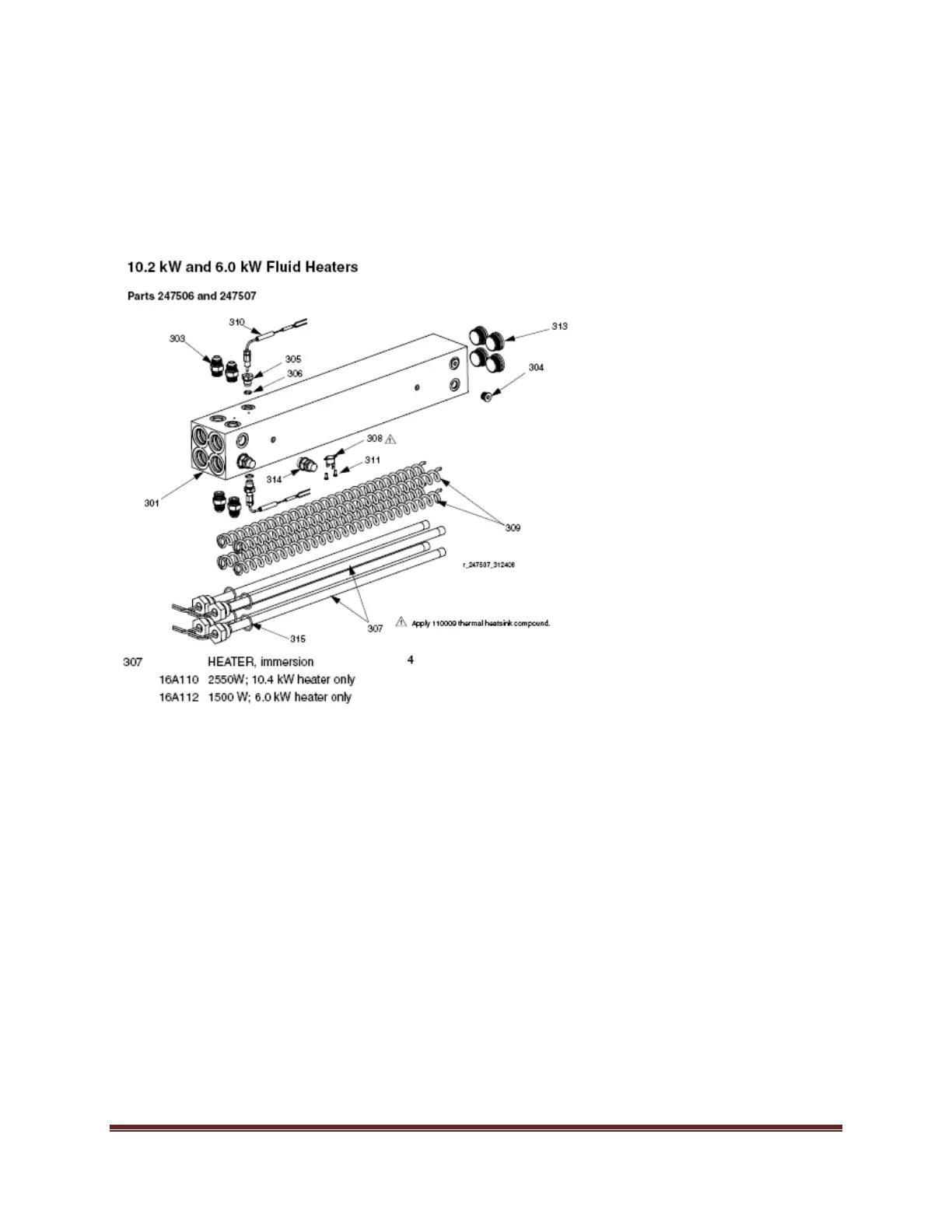

Primary Heaters / Heater Elements
6.0 kW – 1500w (30-35 ohms) x 2 each per side = 15–17.5 ohms combined.
10.2 kW – 2550w (18-21 ohms) x 2 each per side = 9-10.5 ohms combined.
8.0 kW – 2000w (23-26 ohms) x 2 each per side = 11.5-13 ohms combined.
7.65 kW – 2550w (18-21 ohms) x 3 each per side = 6-7 ohms combined.
