Graco T-Max Applicator 256383 User Manual

Parts 256383
312879E 9

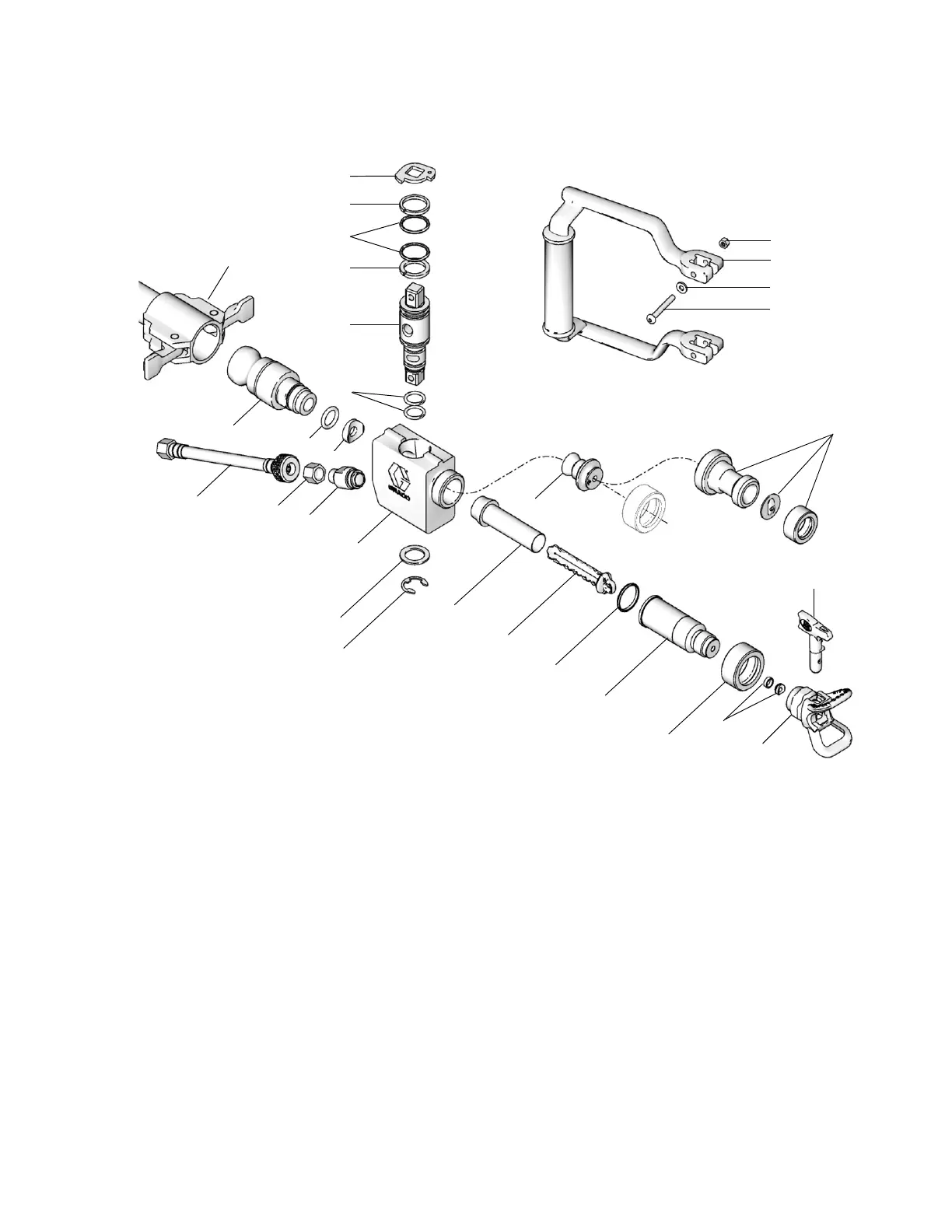

Parts 256383
13
1
14
15
2
4a
4b
4c
3
4d
27
33
34
10
19
20
18
12
31
30
11,35
9
17
7
36
8
40
ti11785a
41
42
‡
Ref Part Description Qty
1 289921 HANDLE, valve, includes 2, 13, 14, 15 1
2* 15T848 PLATE, stop, valve 1
3* 289916 SPOOL, valve 1
4* 289918 KIT, o-ring and bearing 1
4a BEARING, upper 1
4b O-RING, fluid 2
4c BEARING, lower 1
4d O-RING, air 2
7 111027 O-RING 1
8 289919 KIT, check valve 1
9 15T827 HOUSING, valve 1
10 15T326 RING, retaining, nozzle 1
11 289922 FILTER, screen, texture, 18 mesh,
includes 33
1
12 15D727 ADAPTER, GHD RAC 1
13 107110 LOCKNUT 2
14 108193 WASHER, plain 2
15 514237 SCREW, cap sch 10-32 x 1 1/2 2
17 289920 SWIVEL, assy, texture heavy 1
18 246215 GUARD, RAC X 1
19 HDA651 TIP, spray, RAC X (651) 1
20 246453 KIT, gasket and seat (5 sets) 1
27 248524 NOZZLE, 4 mm, rnd 1
30*† 121548 WASHER, plain 1
31*† 121549 RING, retaining, E-ring 1
33 277789 SUPPORT, filter 2
34 15U687 SEAL, adapter, filter, texture 1
35 289923 FILTER, screen, texture, 30 mesh,
includes 33
1
36* 289917 SEAT, spool, valve, includes 7 1
40 287227 KIT, Accessory, Tex, Fine Finish 1
41 15U027 HOSE, air, extension 1
42 15U368 NUT, cap 1
* Included in Spool Repair Kit 289916
† Included in O-ring and Bearing Kit 289918
‡ This applicator requires Graco coupler 289874
Ref Part Description Qty
