Graco TX 90 - Page 18

Idler
18
Idler
Use Idler Repair Kit 288611.

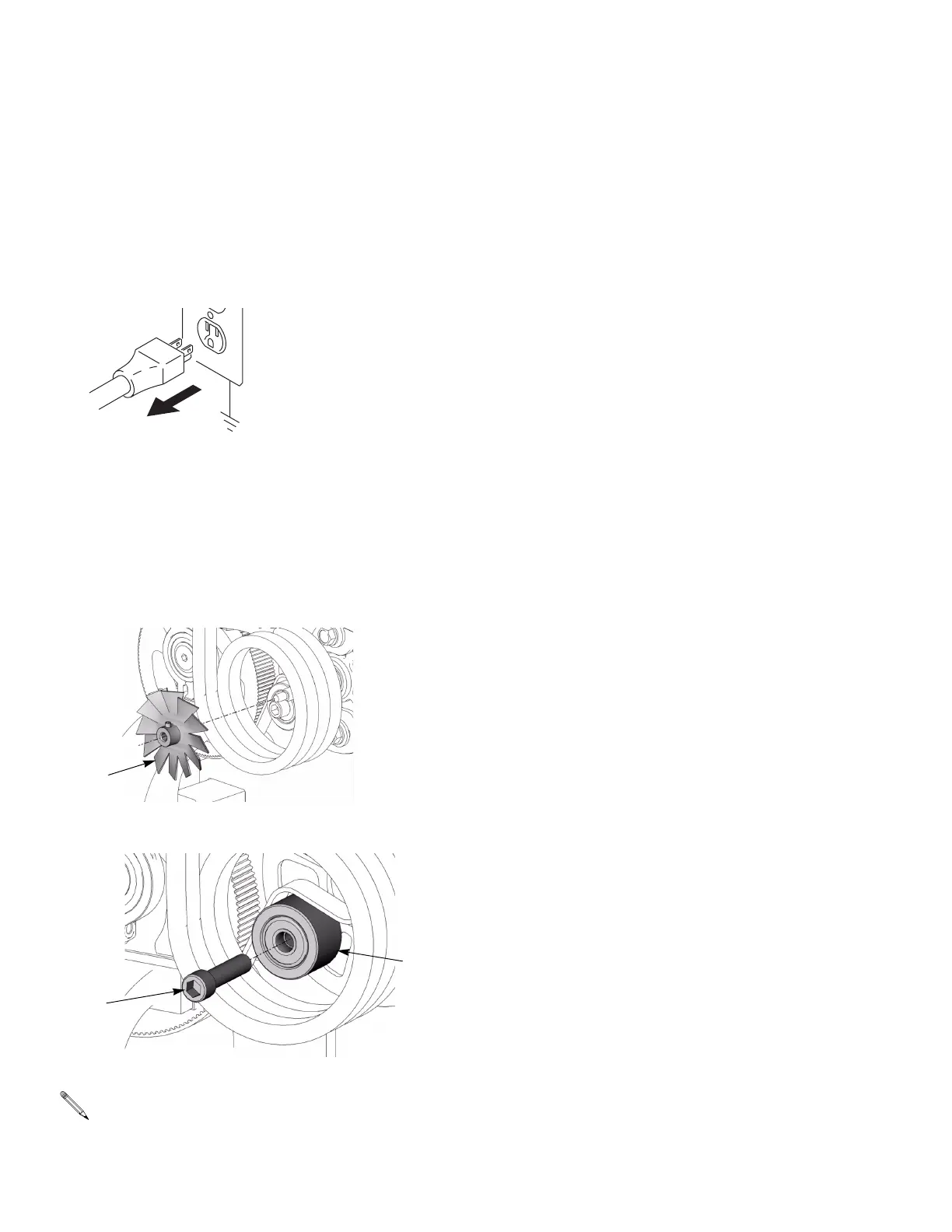

Disassembly
1. Relieve Pressure, page 6.
2. Unplug sprayer from outlet.
3. Remove Shroud, page 7.
4. Remove RotoFlex
™
II Pump hose; page 8.
5. Remove Compressor, page 9.
6. Remove compressor belt, page 14.
7. Loosen set screw and remove fan (72).
8. Loosen screw (109) and remove Idler (108).
Reassembly
1. Install new compressor belt, page 14.
2. Replace new Idler (108) and tighten screw (109).
3. Replace fan (72) and tighten set screw.
4. Replace Compressor, page 9.
5. Replace RotoFlex
™
II Pump hose; page 8.
6. Replace Shroud, page 7.
Every time you replace the Idler you should also
replace the compressor belt, page 14.
ti2810b
ti8892a
72
ti8889a
39
106
