Graco TX 90 - Component Identification

Component Identification
5

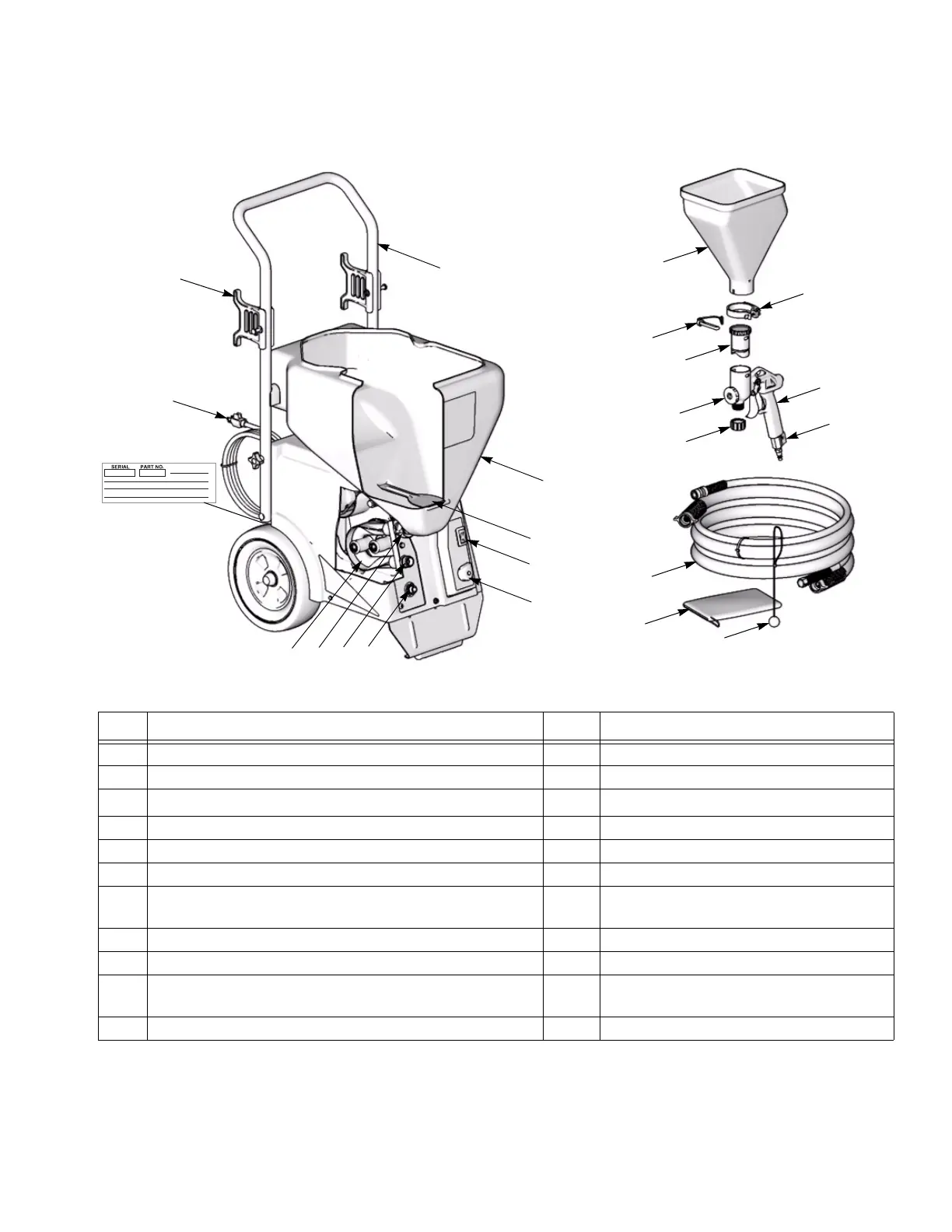

Component Identification
Item Component Item Component
A Hose Rack/Cord Wrap M Touch-Up Hopper (3/4 Gallon)
B Power Cord N Gun Plug Clip
C
RotoFlex
™
II Pump (inside)
P Gun Plug
D Hopper Fitting (fluid inlet) Q Nozzle
E Material Hose Outlet R Hose Plug
F Air Hose Outlet S Material/Air Hose
G
TX 90 - Hopper Gun/Spray Selector Switch
TX 125 - Hopper Gun Selector & Material Flow Control
T Accessories Bag
H ON/OFF Switch U Material Thickness Gauge
J Burp Guard V Gun Air Flow Control Valve
K
TX 90 - Material Hopper, 8 Gallon
TX125 - Material Hopper, 10 Gallon
W Texture Spray Gun (manual 311777)
L Handle Z Hopper Clamp
D
E
H
S
A
P
U
G
ti8697a
J
C
F
T
R
K
Q
N
M
Z
W
V
B
L
