Parts
30
Parts

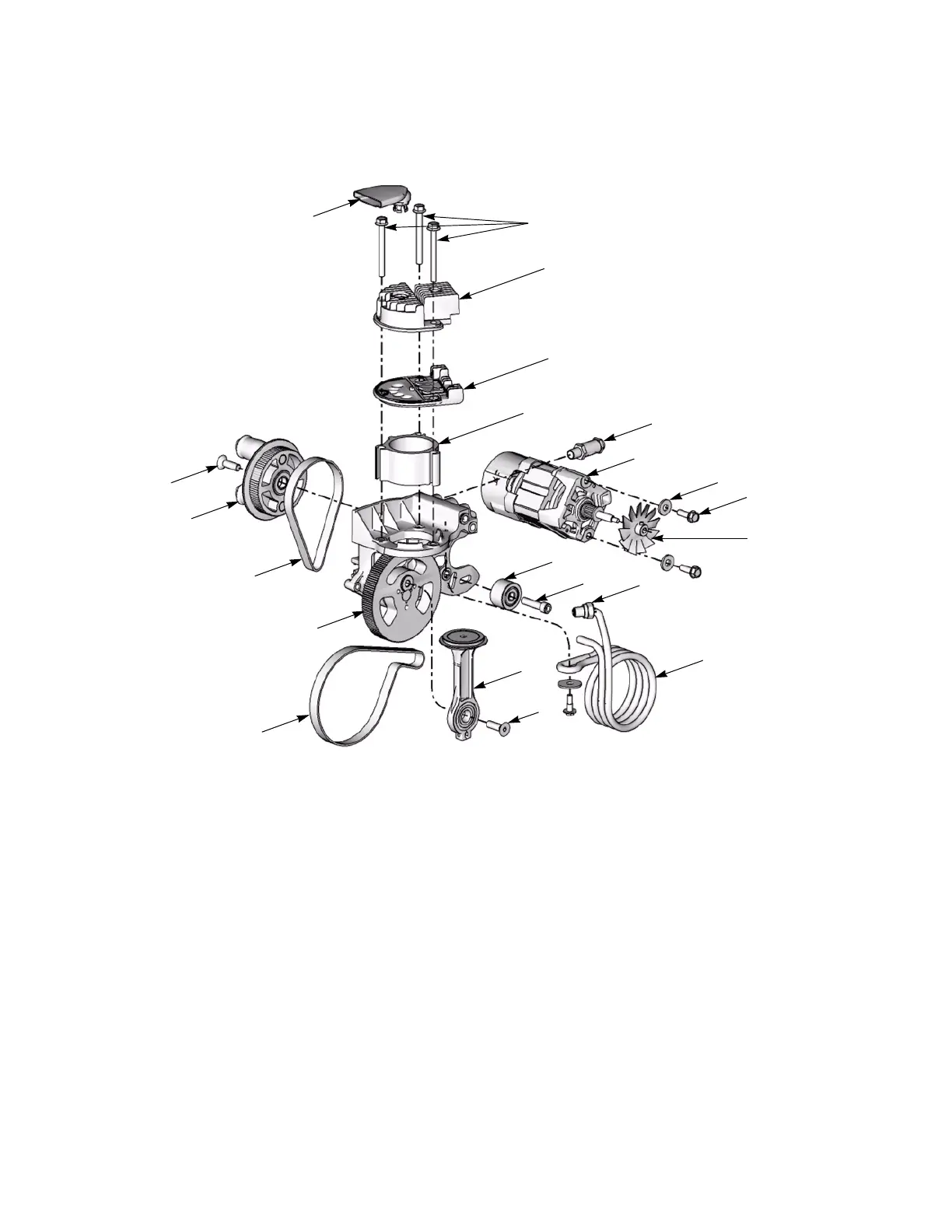

Compressor 288856 & 288651
110
100
74
75
71
108
106
105
77
73
87
83
84
87
72
79
ti8903a
86
76
117
109
104
Ref. Part Description Qty.
288856 KIT, repair, compressor, complete;
TX 90 (includes all items)
288651 KIT, repair, compressor; TX 125
(complete; includes all items)
288612 KIT, repair, compressor, rebuild
(includes 100, 74, 86, 75, 76, 77,
87)
71 288613 KIT, repair, motor, universal, 120v
(includes 71, 84, 105, 106)
1
72 120466 FAN 1
73 288616 KIT, repair, pulley, w/rollers
(includes 73, 83, 87)
1
74 288746 HEAD, compressor
(includes 74, 75)
1
75 288610 KIT, repair, plate, valve
(includes 76)
1
76 CYLINDER, compressor 1
77 288609 KIT, repair, piston/cylinder
(includes 75, 76, 77, 87)
1
79 288614 KIT, repair, cooler
(includes 79, 86)
1
83 120234 BELT 1
84 120233 BELT 1
86 120245 FITTING 1
87 120204 SCREW, mach, hex flat head 2
95 120593 SCREW, mach, torx pan hd 3
100 120229 SCREW, hex flange 3
101 118890 SCREW, shoulder 1
102 120659 WASHER, flat 1
104 15G817 PULLEY 1
105 260215 SCREW, hex hd 2
106 100023 WASHER, flat 2
108 288611 KIT, repair, idler (includes 108, 84) 1
109 104272 SCREW, cap, sch 1
110 15H940 FITTING, muffler, intake 1
117 VALVE, pressure relief 1
120257 TX 90 Models
(Compressor 288856)
120617 TX 125 Models
(Compressor 288651)
Ref. Part Description Qty.
