20 309251
Drive Housing Replacement
CAUTION
Do not drop gear cluster (7) when removing drive
housing (10). Gear cluster may stay engaged in
motor front end bell or drive housing.
695 Removal
1.
Relieve pressure; page 4.
2. Remove pump (79); Displacement Pump Re-
placement, page 23.
3. Fig. 15. Remove four screws (39) and remove
shroud (90).
4. Remove four screws (104) and washers (17).
5. Remove four screws (40) and front cover (100).
6. Remove two nuts (33), pail hanger (54) and spring
clip (95).
7. Remove two screws (105) and washers (17).
8. Pull drive housing (78) off of motor (75).
9. Slide connecting rod (76) out of drive housing.
695 Installation
1. Slide connecting rod (76) into drive housing.
2. Push drive housing (78) onto motor (75).
3. Install washers (17) and two screws (105).
4. Install spring clip (95), pail hanger (54) and two
nuts (33).
5. Install front cover (100) and four screws (40).
6. Install washers (17) and four screws (104).
7. Fig. 15. Install shroud (90) with four screws (39).
8. Install pump (79); Displacement Pump Replace-
ment, page 23.
695

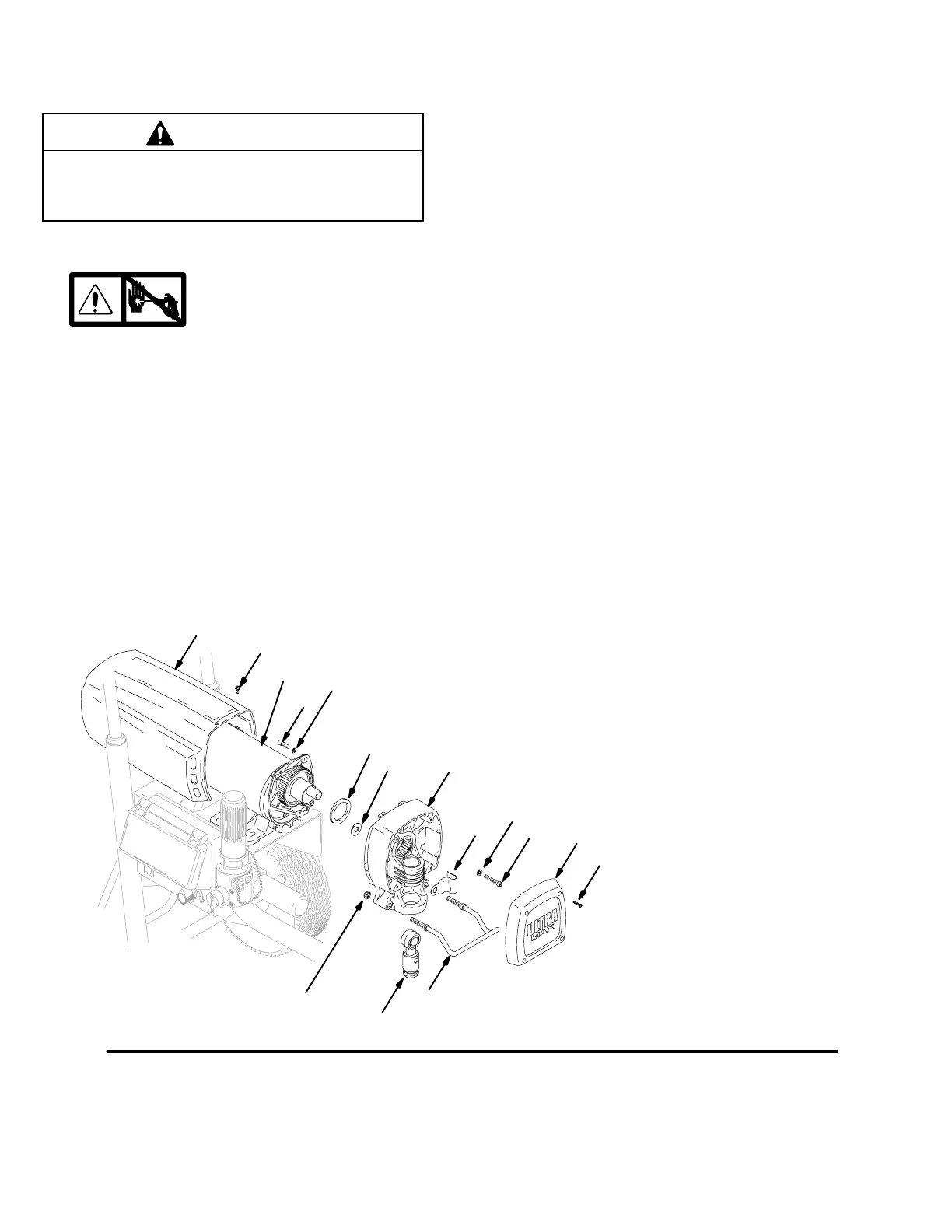

Fig. 14
76
100
104
90
54
40
95
105
39
17
17
33
78
75
19
115
ti0767A
