Component Identification
6 3A2988C
Component Identification
Key:
A A (Resin) Supply Inlet, 3/4 npt(m)
B B (Hardener) Supply Inlet, 1/2 npt (m)
C A (Resin) Ball Valve and Shutoff Handle
D B (Hardener) Ball Valve and Shutoff Handle
E Fluid Pressure Gauge
F A (Resin) Solvent Inlet Valve, 1/4 npt(m)
G B (Hardener) Solvent Inlet Valve
H Main Solvent Inlet
J A (Resin) Check Valve
K B (Hardener) Check Valve
L *Integrator Hose
M A (Resin) Solvent Check
P B (Hardener) Injector (not visible; inside outlet R)
R Mix Manifold Outlet, 1/2 x 1/2 male
S *Static Mixer Housing
T1 *Mix Hose
T2 *Fluid Whip Hose
U *Airless Spray Gun
V B (Hardener) Solvent Check
W *Static Mixing Element (not visible; inside tube S)
X Heated Water Circulation Plate
Y *Swivel Accessory 207946
* Not included in mix manifold kit.

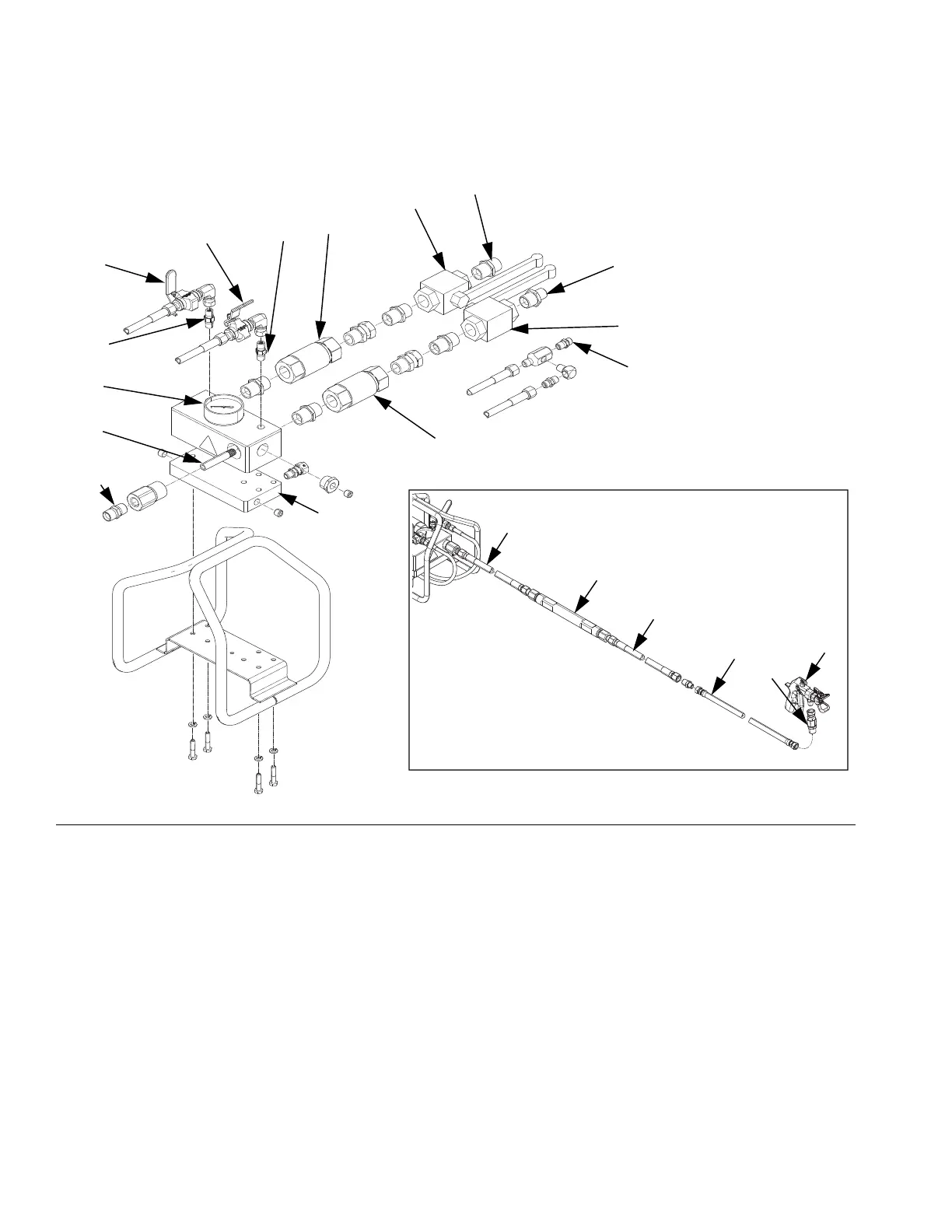

FIG. 1: Typical Installation
ti20089a
A
H
B
C
J
F
M
E
P
R
D
G
V
K
X
L*
S*, W*
U*
T2*
ti20090a
T1*
Y*
