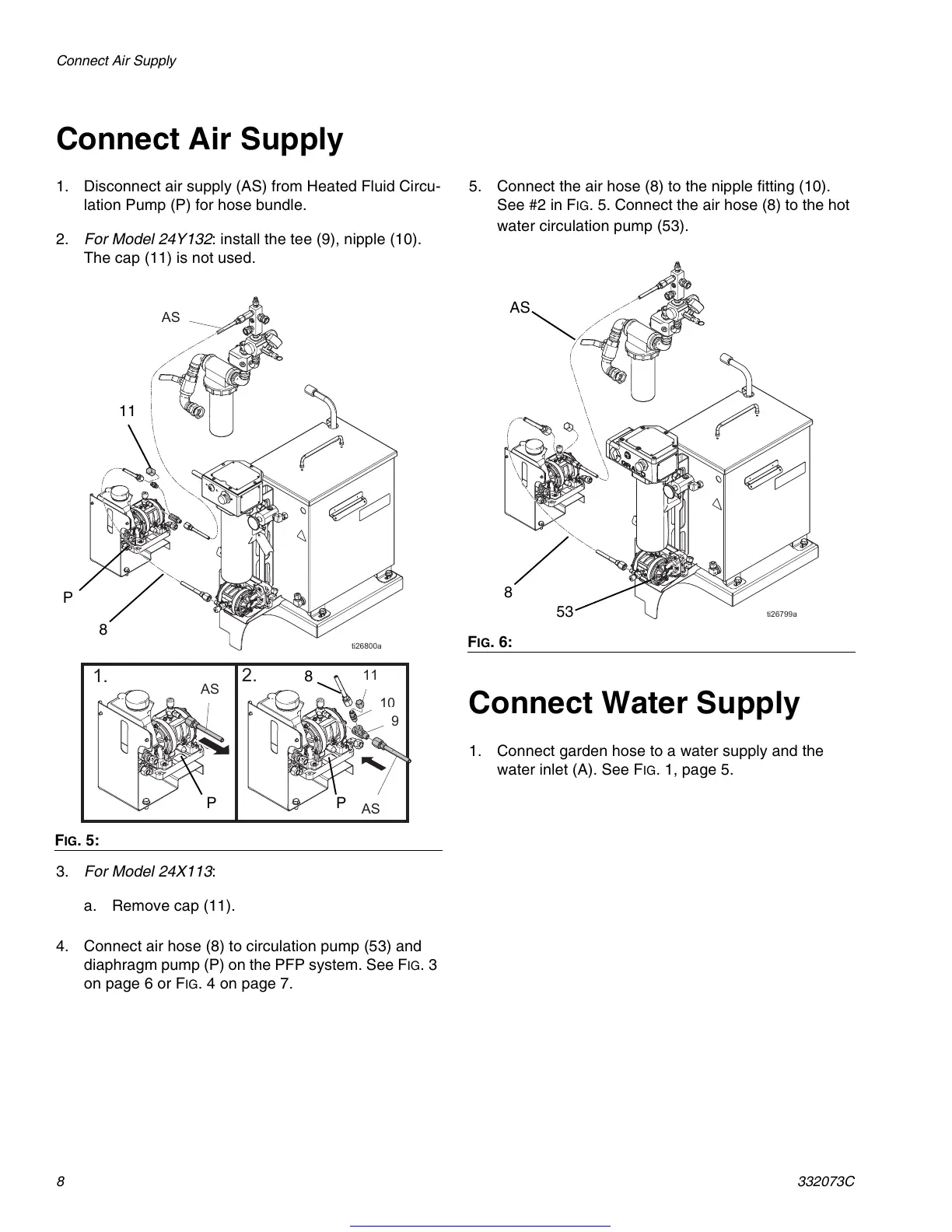

Connect Air Supply
8 332073C
Connect Air Supply
1. Disconnect air supply (AS) from Heated Fluid Circu-
lation Pump (P) for hose bundle.
2. For Model 24Y132: install the tee (9), nipple (10).
The cap (11) is not used.
3. For Model 24X113:
a. Remove cap (11).
4. Connect air hose (8) to circulation pump (53) and
diaphragm pump (P) on the PFP system. See F
IG
. 3
on page 6 or F
IG
. 4 on page 7.
5. Connect the air hose (8) to the nipple fitting (10).
See #2 in F
IG
. 5. Connect the air hose (8) to the hot
water circulation pump (53).
Connect Water Supply
1. Connect garden hose to a water supply and the
water inlet (A). See F
IG
. 1, page 5.
F
IG
. 5:
WLD
$6
$6
$6
11
8
P
P P
8
F
IG
. 6:
WLD
8
AS
53
