Component Identification
313292K 15
User Interface Display
NOTE: For details regarding the user interface display,
see your XM Plural-Component Sprayer operation
manual.
Main Display Screen Components
The following figure calls out the navigational, status, and general informational components of each display screen.

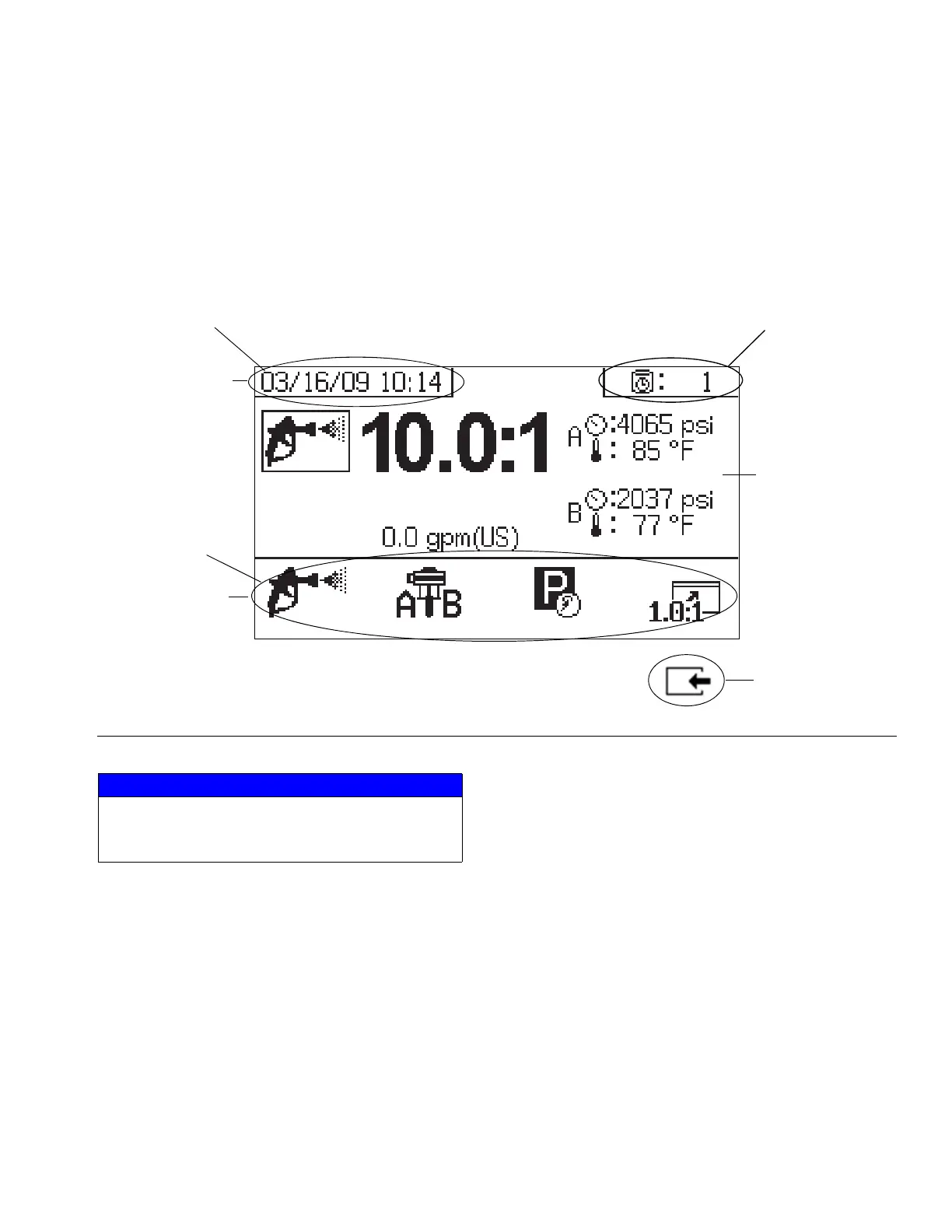

FIG. 5: Main Display Screen Components
Current Date and Time
Navigate to screens
within same group
Go back one screen
Current Status Bar
Navigational Bar
Function Display
Remaining Pot Life Time
NOTICE
To prevent damage to soft key buttons, do not
press the buttons with sharp objects such as pens,
plastic cards, or fingernails.
