Installation and Setup
18 313292K
Installation and Setup
See Dimensions, page 26, to aid in component
installation.
Connect Air Lines
Refer to component identification in FIG. 1, page 11.
Refer to the pneumatic schematic drawings in your XM
Plural-Component Sprayer repair-parts manual for
guidance.
• Connect air lines (68, 69) between the fluid control
assembly (B) and the control box (C).
• Connect air lines (68, 69) between the air controls
assembly (E) and the control box.
Connect Fluid Hoses

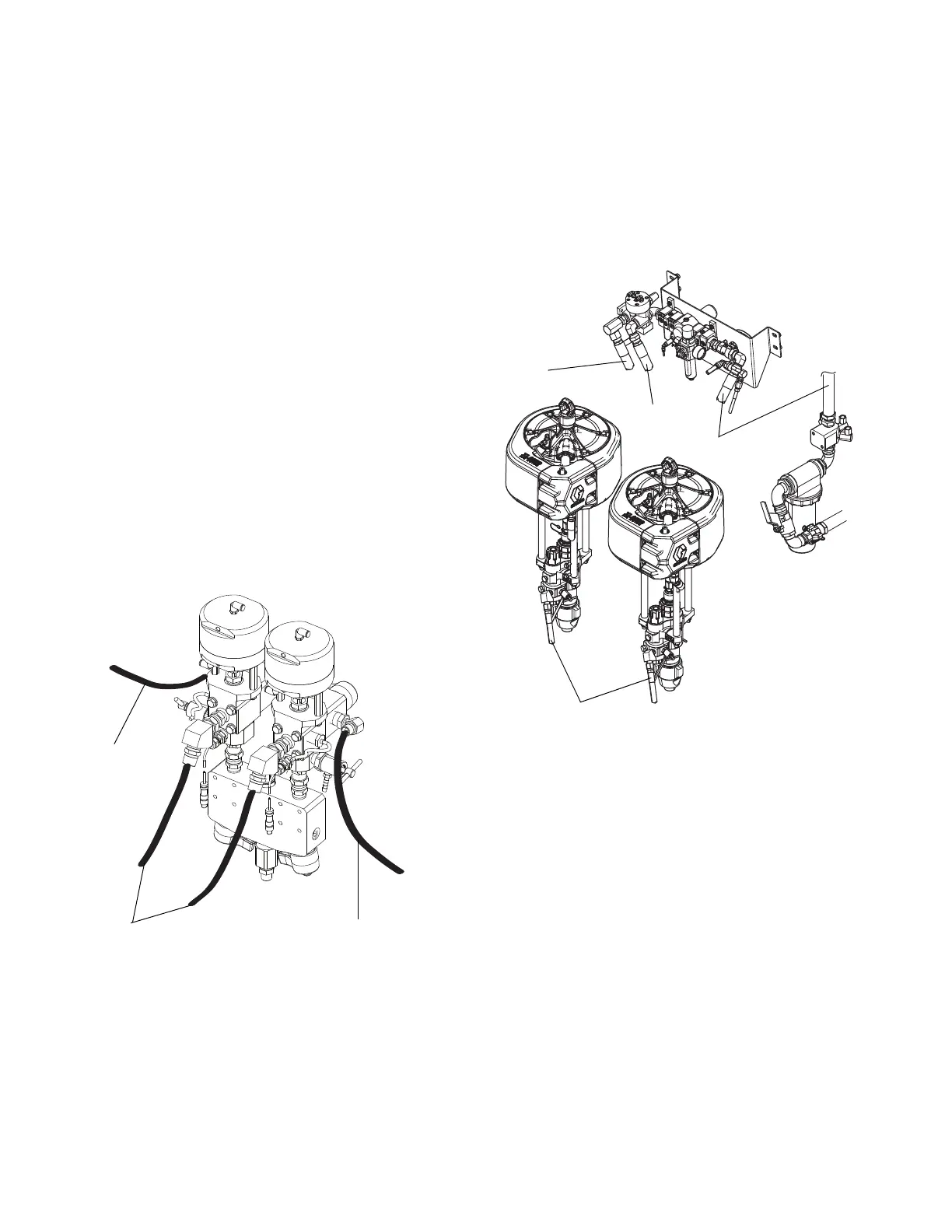

Use the following illustration as a guide to connect the
fluid hoses.
Connect Air Hoses
• Connect air hose (12) between the air inlet manifold
and the air controls assembly. See (12c).
• Connect air hose (12) between air controls
assembly and both air motors. See (12a or 12b).
Recirculation
Hose (gray)
Hose to Pump
Lower (black)
Recirculation
Hose (gray)
To Next Page
