4. Assembling the set-up kit
18 / 33
13.
14.

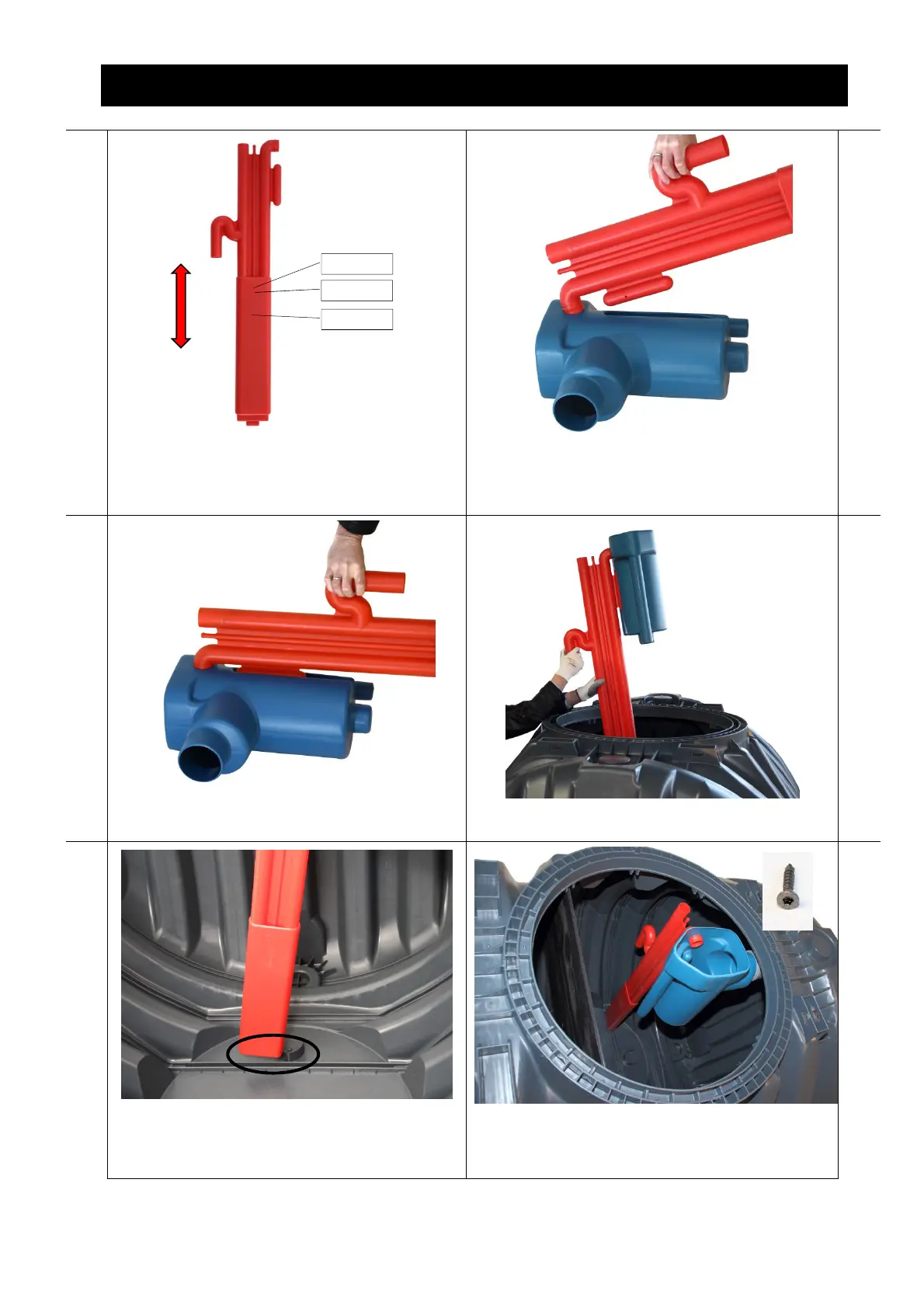

Depending on the tank size, the length of the jack
must be adjusted by moving the jack base. The
rough position is specified on the jack. The exact
height is to be determined inside the tank.
Assemble the jack and sampler. To do this, push
the jack outflow into the sampler hole.
15.
-
16.
Push the jack into the sampler (until it snaps into
place).
Insert the jack into the tank along with the sampler.
17.
18.
Insert the jack into the profile for holding the parti-
tion wall from above.
Insert the sampler’s outflow connection into the
sleeve of the outflow pipe (use lubricant!). The
sleeve connection must be secured with a Spax
screw.
