3.4 ELECTRIC CONTROL
LOCATIONS
3.4.1 Pendant Control Location
The pendant is located in the pendant holder
on the back of the chair (Figure 3-4).
This chair is equipped with a battery back up
for transport but the unit should be plugged
into a wall receptacle when not in transport.
The plug is located on the back of the base
cover (Figure 3-5). Do not position the unit so
that it is difcult to disconnect the plug.
s NOTICE: Place pendant in holder when
not in use. Keep cord clear of moving
parts.
3.4.2 Plug Location
This chair is equipped with a battery back up
for transport but the unit should be plugged
into a wall receptacle when not in transport.
The plug is located on back of the base cover
(Figure 3-5). Do not position the unit so that it
is difcult to disconnect the plug.
Important: It is recommended that unit
remain plugged in wall receptacle during
normal use. Battery back-up is recommended
for transport and emergency only.
3.4.3 Low Battery Alarm
This chair is equipped with an audible low
battery alarm. When the system requires
charging, a continuous beep will sound during
motor operation; plug the unit into the wall
receptacle.

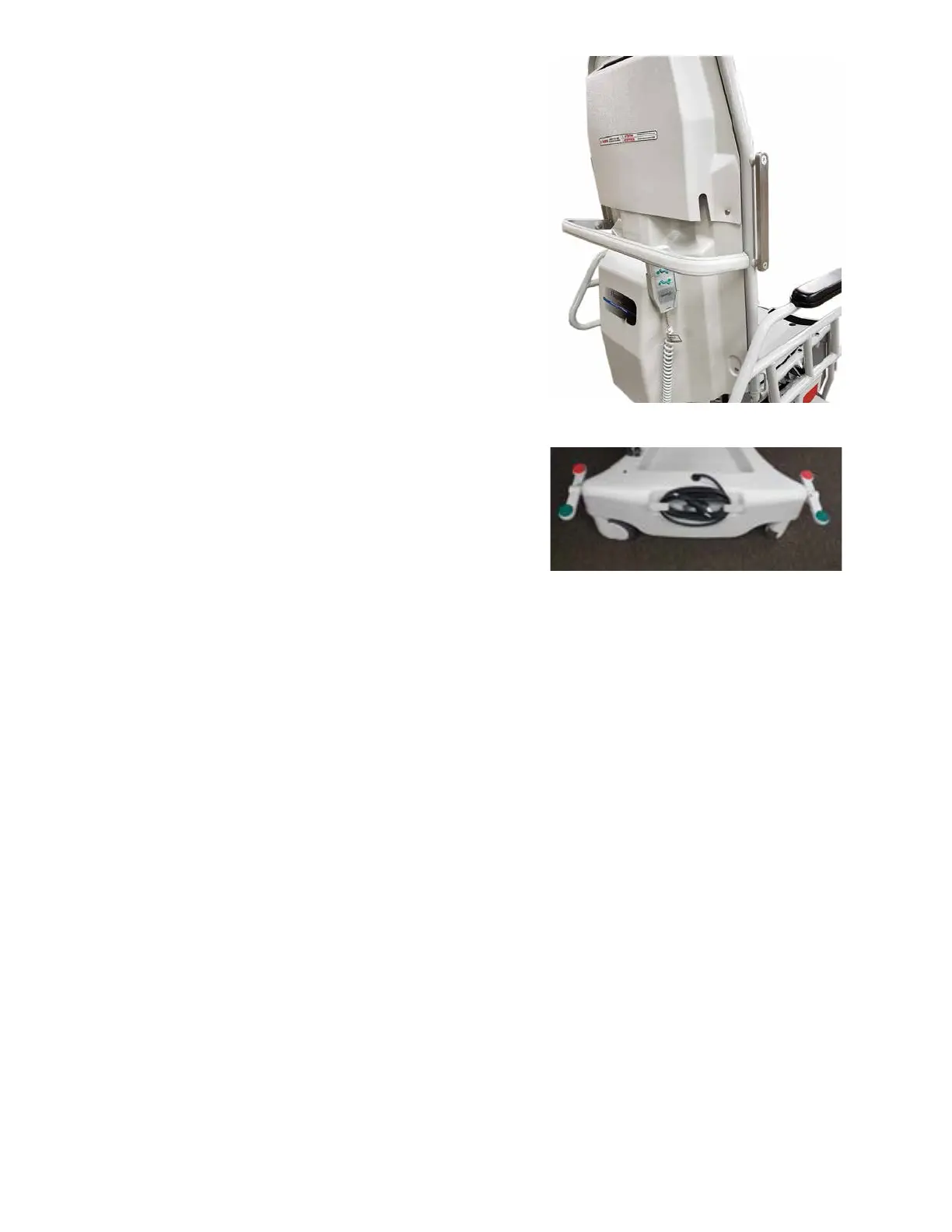

FIGURE 3-4
FIGURE 3-5
