APC-US-INS-LAB-RevC18 18
3.9 ESCEYE / ESDEYE HEADREST
3.9.1 Pre-op / Post-op Head Extension
To remove the head extension, rotate the
knobs on the two ends of the extension
counterclockwise (Figure 3-24). With knobs
loose, pull out on the extension. To install
the extension, slide the extension over the
surgical mounting bars using the guides on
the extension. Slide the extension fully down
the surgical side bars, then tighten the knobs
on the end of the extension.
s NOTICE: Ensure the head extension is
secure before applying any pressure.
3.9.2 Adjusting the Headrest
Remove the head extension as explained in
3.8.1. Grasp the right ball style knob (Figure
3-25), and rotate it counterclockwise to
articulate the head section upward (Figure
3-26); rotate the knob clockwise to articulate
the head section downward (Figure 3-27).
Once the upward articulation has been set,
grasp the left ball style knob (Figure 3-28), and
rotate the knob counterclockwise to adjust
the height of the headrest (Figure 3-29).
Info: After understanding which knob creates
which action, quick and smooth adjustment
can be achieved by rotating the knobs
simultaneously (Figure 3-30).

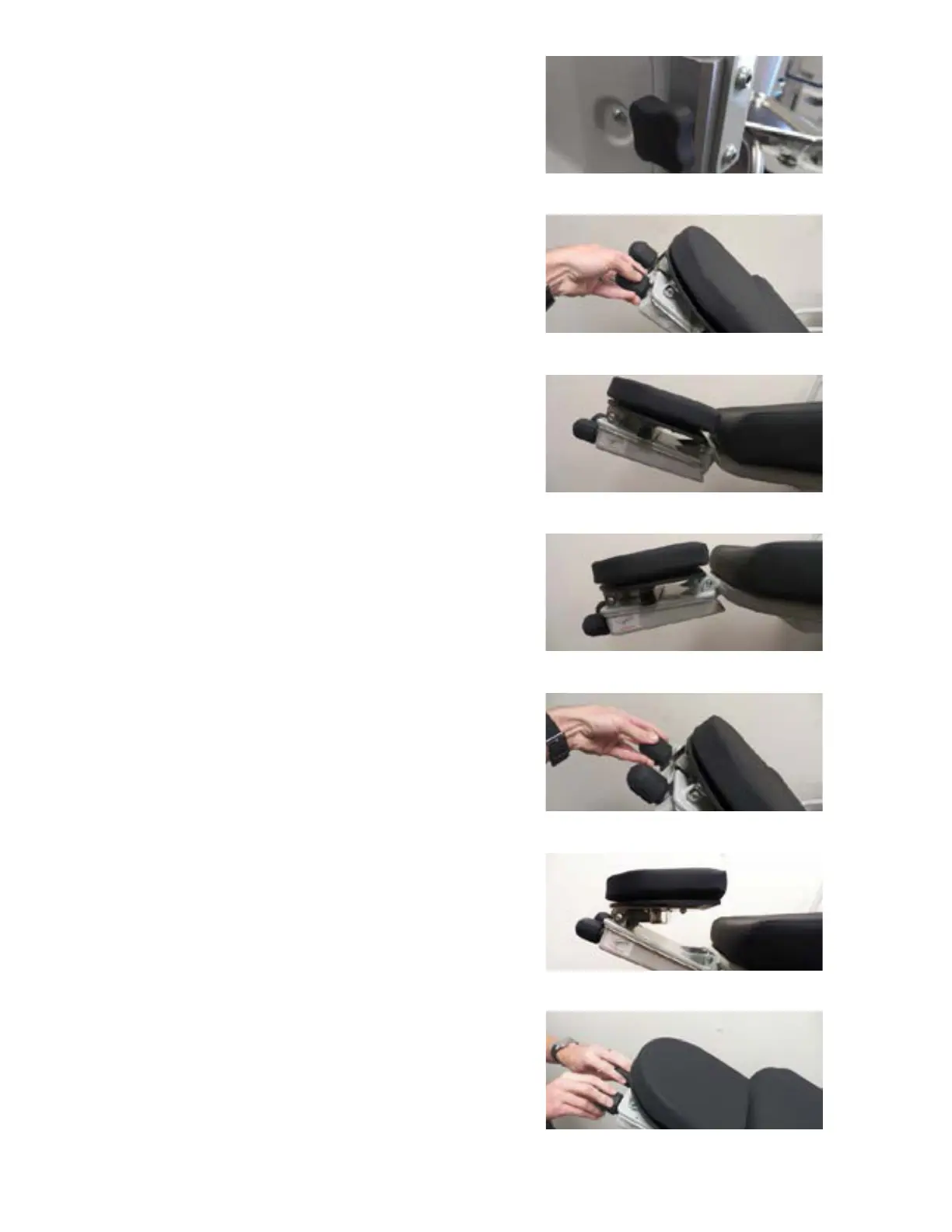

FIGURE 3-24
FIGURE 3-25
FIGURE 3-26
FIGURE 3-27
FIGURE 3-28
FIGURE 3-29
FIGURE 3-30
