GM8136/GM8136S EVB User Guide
www.grain-media.com
2
1.1 Overview
GM8136/GM8136S EVB provides a cost-effective and easy-development system for integration and
verification of the video application at the early development stage.
This user guide provides the needed information on using the EVB.

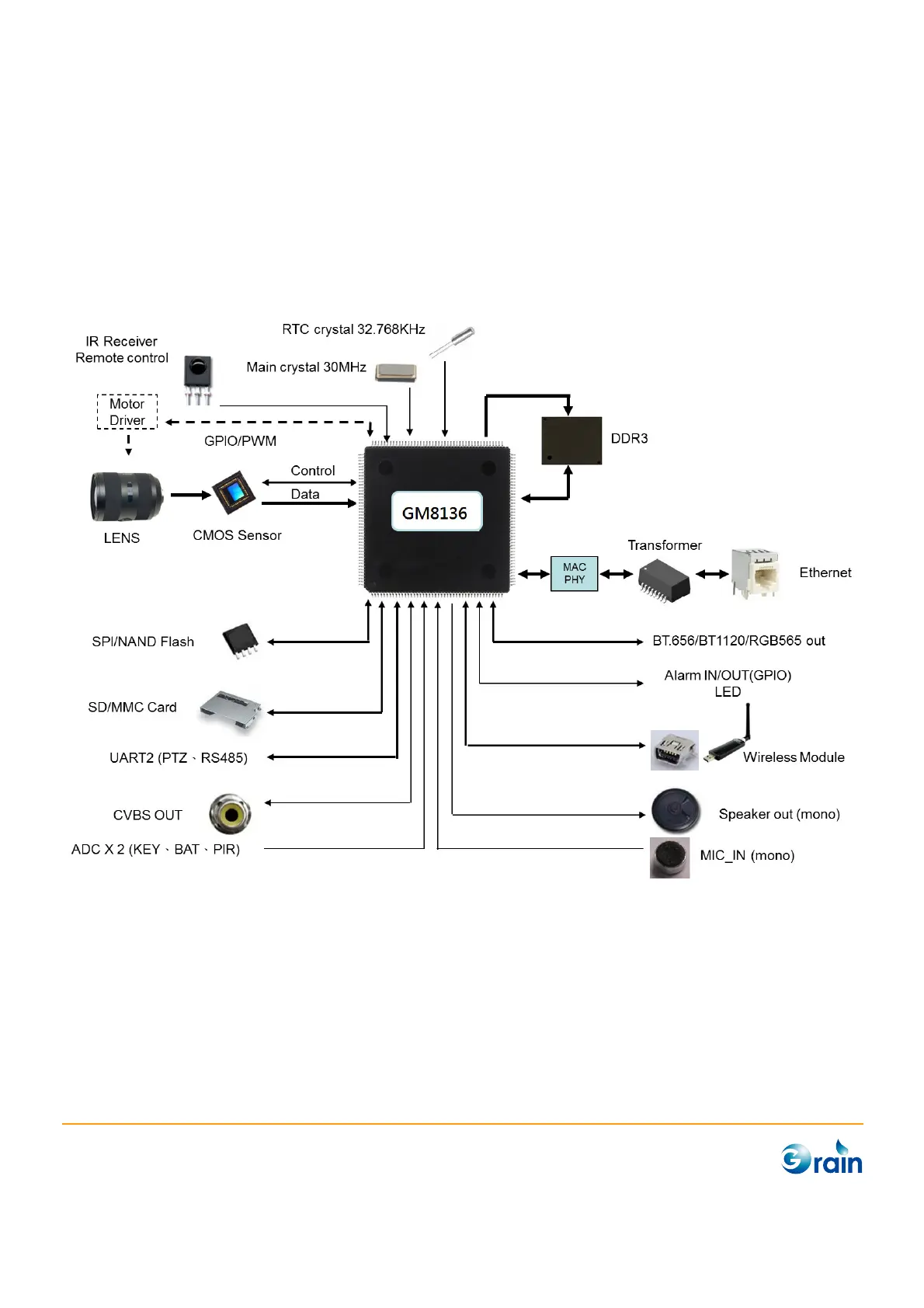

Figure 1-1. Block Diagram of GM8136/GM8136S
