137
Slideout Systems
Only one (1) side moving
The Schwintek slide system has a separate motor to operate
each side of the room. If only one side of the room moves a
short distance (2 to 4 inches) and stops;
• Will non-moving side move with help?
If only one (1) side of the room is moving, with someone’s
assistance, push the non-moving side in the appropriate
direction while pressing the switch to extend or retract
the room. On larger rooms it may be necessary to have
two (2) or more people pushing the room.
• Non-moving side moved manually.
Try to push the non-moving side in and out. If a motor
shaft has broken then it will be possible to move that side
of the room several inches by hand. Larger rooms may
require several people to push.
Schwintek slide system maintenance
• Check all four (4) gear racks installed on the exterior
sidewalls of the slide room for debris (if found, remove
any debris immediately).
• The slideout system is designed to be
maintenance-free. If needed, lubricate ONLY the upper
& lower Gib, Bearing Block, Coupler, and V-Roller on
each side of the slide with CRC Power Lube with PTFE
(in the green can). See the diagrams, Right.
Synchronizing the Slideout Motors
Periodically your Schwintek Slide System
should be Re-Synchronized. To do so follow
the simple procedure bellow:
1. Run the room OUT 10"- 12" and STOP.
2. Run rooms back IN and HOLD switch down
until the motors limit out.
3. Repeat steps 1 & 2. Five to Six times, then
4. Run the room OUT all the way until the
motors limit out.
5. Run rooms back IN 10"- 12" and STOP.
6. Repeat steps 4 & 5. Five to Six times
This process will Synchronize the motors
so they are timed correctly.

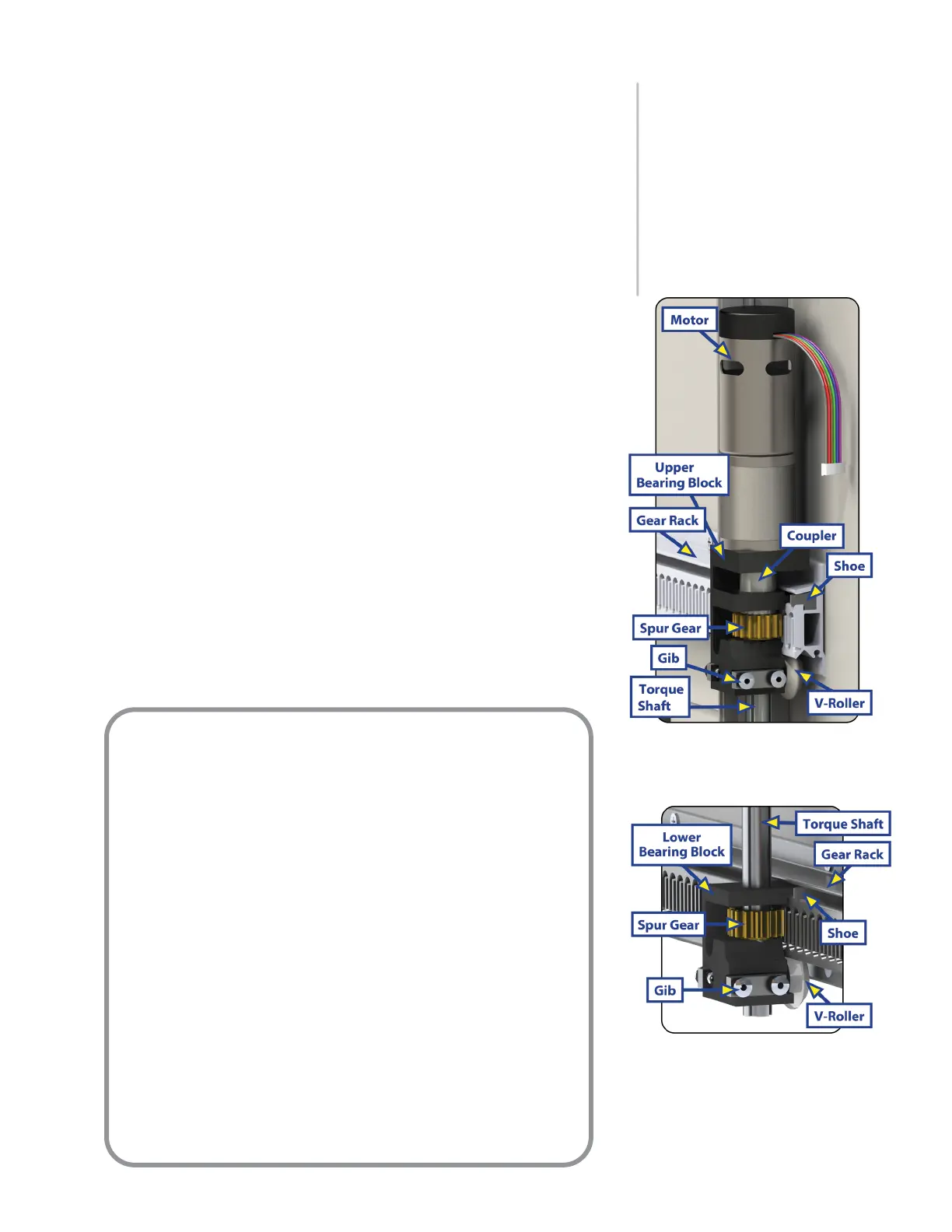

Upper Gear Rack Detail
Lower Gear Rack Detail
