Grandstream Networks GDS370 Series

Wiring Sample using PoE to power GDS370x and 3 Party Power Supply for Electric Strike

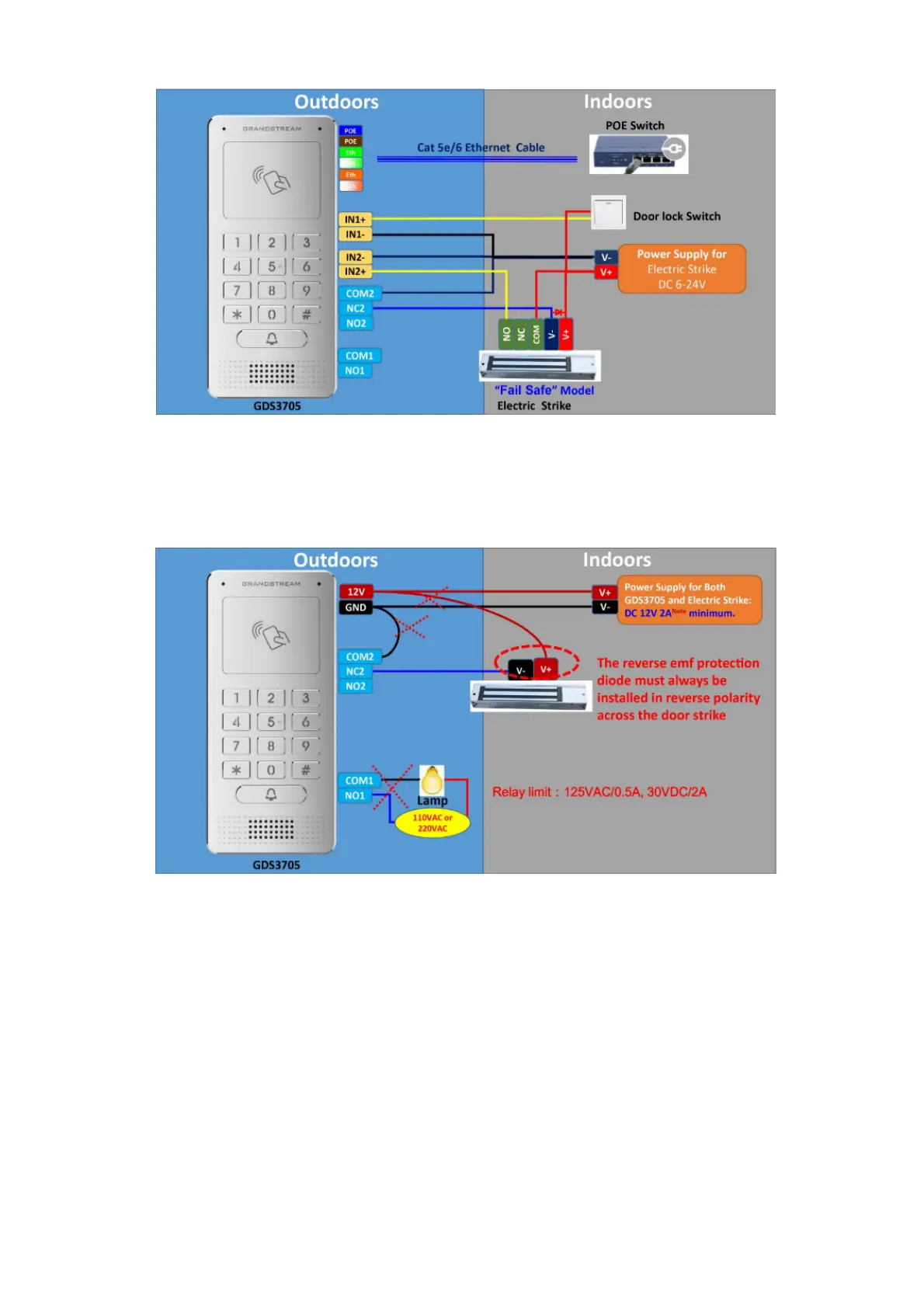

Figure 20: Wiring Sample using PoE to power GDS370x and 3 party Power Supply for Electric Strike
Figure 21: Example to Avoid when Powering the Electric Strike
Good Wiring Sample for Electric Strike and High-Power Device
rd
rd
Warning
The following example should be avoided when powering the electric strike.
