1. Power cycle the GDS370x
2. Pick up the Alarm Phone Call (if configured)
3. Open Door using a PIN (either public PIN or private PIN) for the GDS3705 Model only.
Once the alarm is triggered, the GDS370x will play a siren sound, send an email to the administrator (if configured SMTP); call
the configured alarm SIP phone, and send the alarm output (if connected). Users will only be able to disable the siren using
the 3 methods mentioned above.
For detailed action information please refer to GDS37xx User Manual, “Alarm Action Settings” configuration. Below are some
diagrams showing the correct wiring to enable this new security enhancement feature.

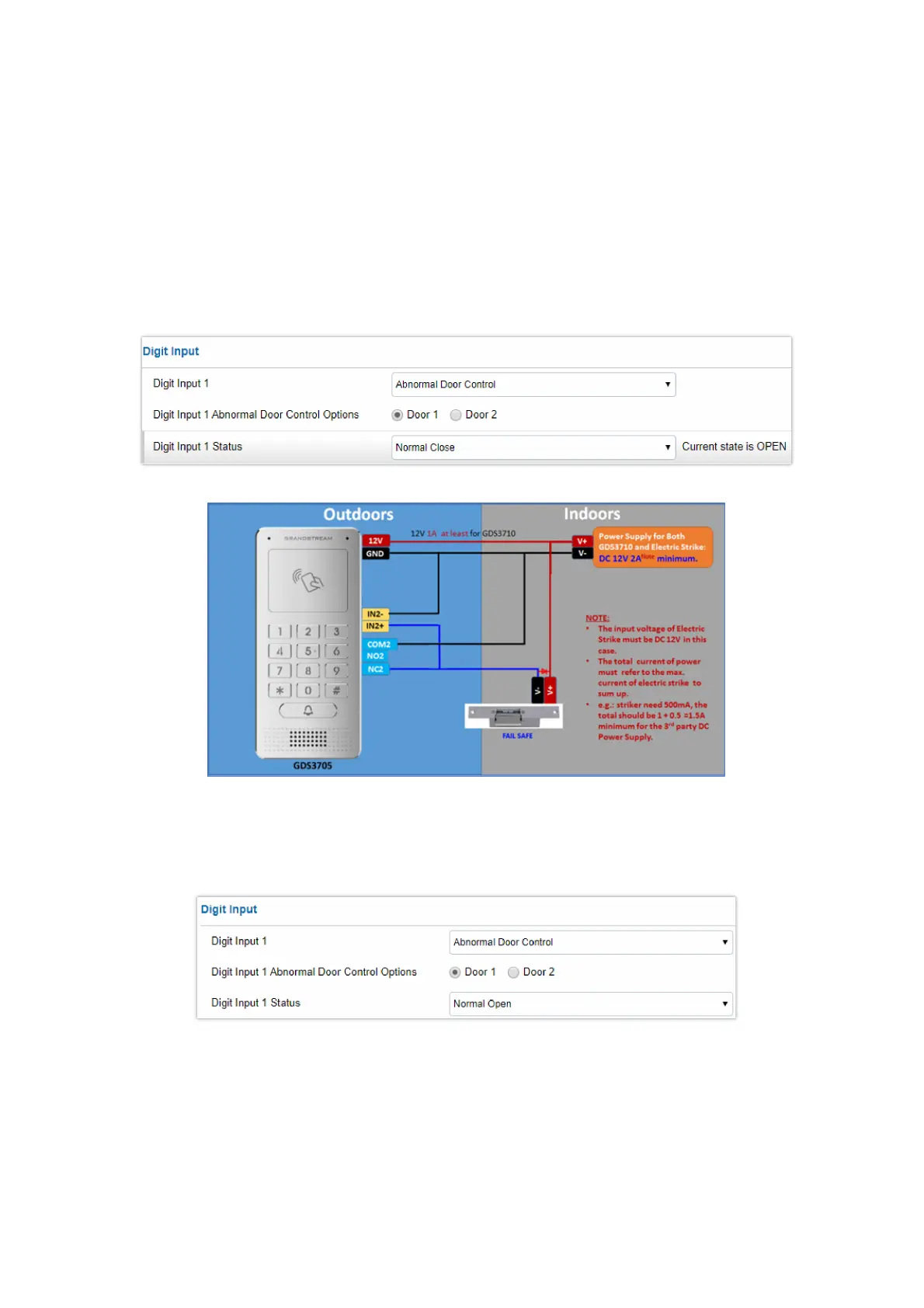

GDS370x Connection: IN2 set as Normal Close and “Fail-Safe” Electric Strike using 3 Party
Power Supply
Figure 27: Digital Input set as Normal close
Figure 28: “Failsafe” Electric Strike using 3rd Party Power Supply
GDS370x Connection: IN2 set as Normal Open and “Fail Secure” Electric Strike using 3 Party
Power Supply
Figure 29: Digital Input set as Normal open
rd
rd
