Grandstream Networks GDS370 Series User Manual

This page allows users to configure GDS370x events to trigger programmed actions within predefined schedule.

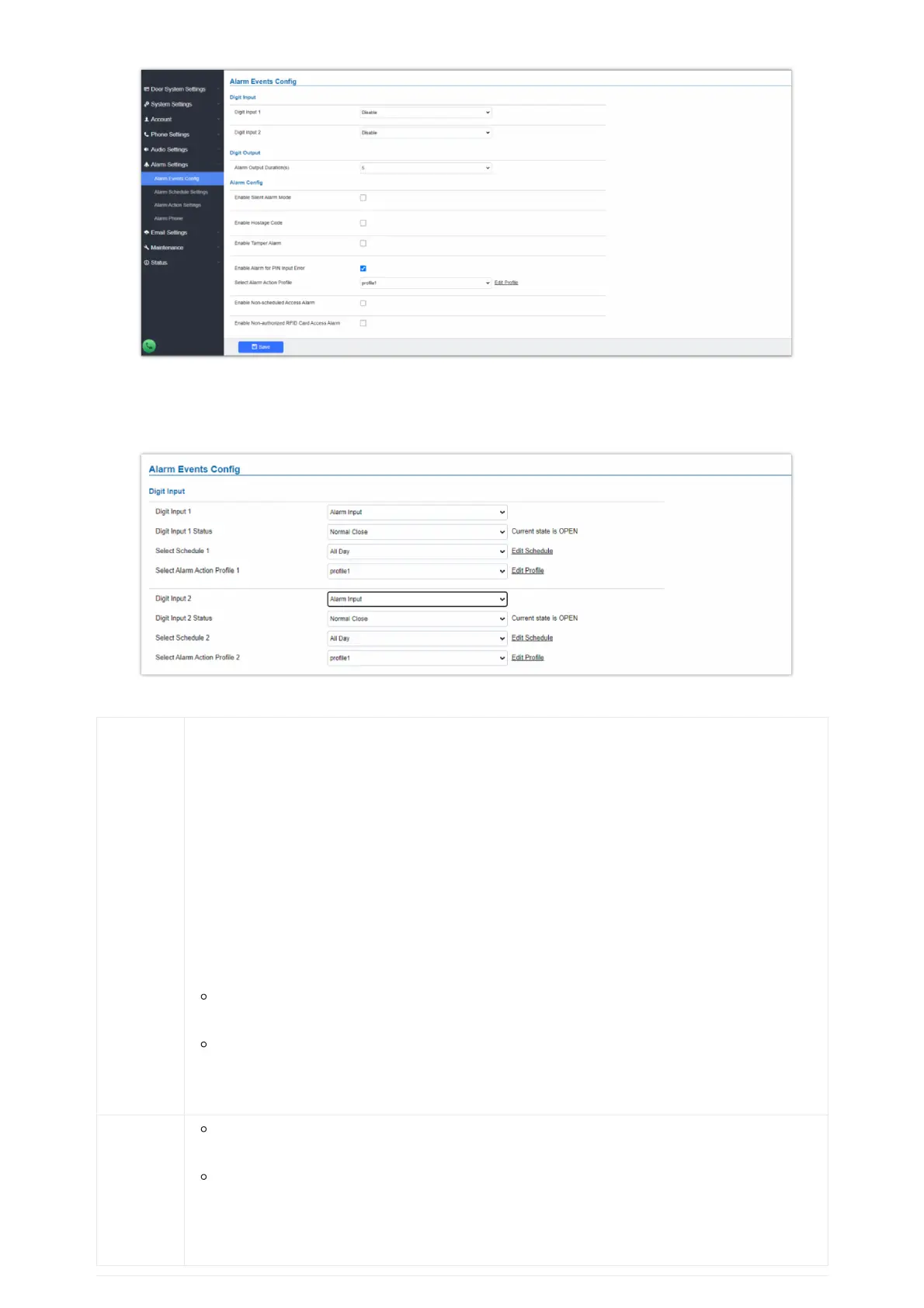

Figure 67: Events Page
Input Digit
Figure 68: Input Digit
Digit Input
1
Selects the Input method (alarm Input or Door Open).
Default disabled.
Digital Input Port operates in 3 Modes:
1. Alarm Input: Connect various of sensor to trigger alarm.
2. Open door: Connect a switch to open door from inside.
3. Abnormal Door Control: When enabled (special wiring required, see below wiring diagram), abnormal
open door will be detected and therefore trigger siren alarm.
Notes:
If Digital Input port is connected to a switch, it will not work during the time of power outage, device
booting or firmware upgrading.
Abnormal open door will be detected by DI port (Alarm_In2 or IN2 in below diagram showed) if wired
correctly (connecting the COMx port to DIx port). Please refer to XXX for diagrams showing the correct
wiring to enable this feature.
Digit Input
1 Status
If set to Normal Open: Configured alarm will be triggered when Digital Input Status switch from Close
to Open.
If set to Normal Close: Configured alarm will be triggered when Digital Input Status switch from Open
to Close.
By default, Input Digit 1 Status is “Disabled”.
