Grandstream Networks GXP2100 User Manual

3 4
CONNECTING THE PHONE:
PHONE SETUP:
To setup the GXP2100, follow the steps below:
1. Connect the handset and main phone case with the phone cord.
2. Connect the LAN port of the phone to the RJ-45 socket of a hub/switch or a
router (LAN side of the router) using the Ethernet cable.
3. Connect the 5V DC output plug to the power jack on the phone; plug the power
adapter into an electrical outlet.
4. The LCD will display provisioning or rmware upgrade information. Before con-
tinuing, please wait for the date/time display to show up.
5. Using the phone embedded web server or keypad conguration menu, you can
further congure the phone using either a static IP or DHCP.

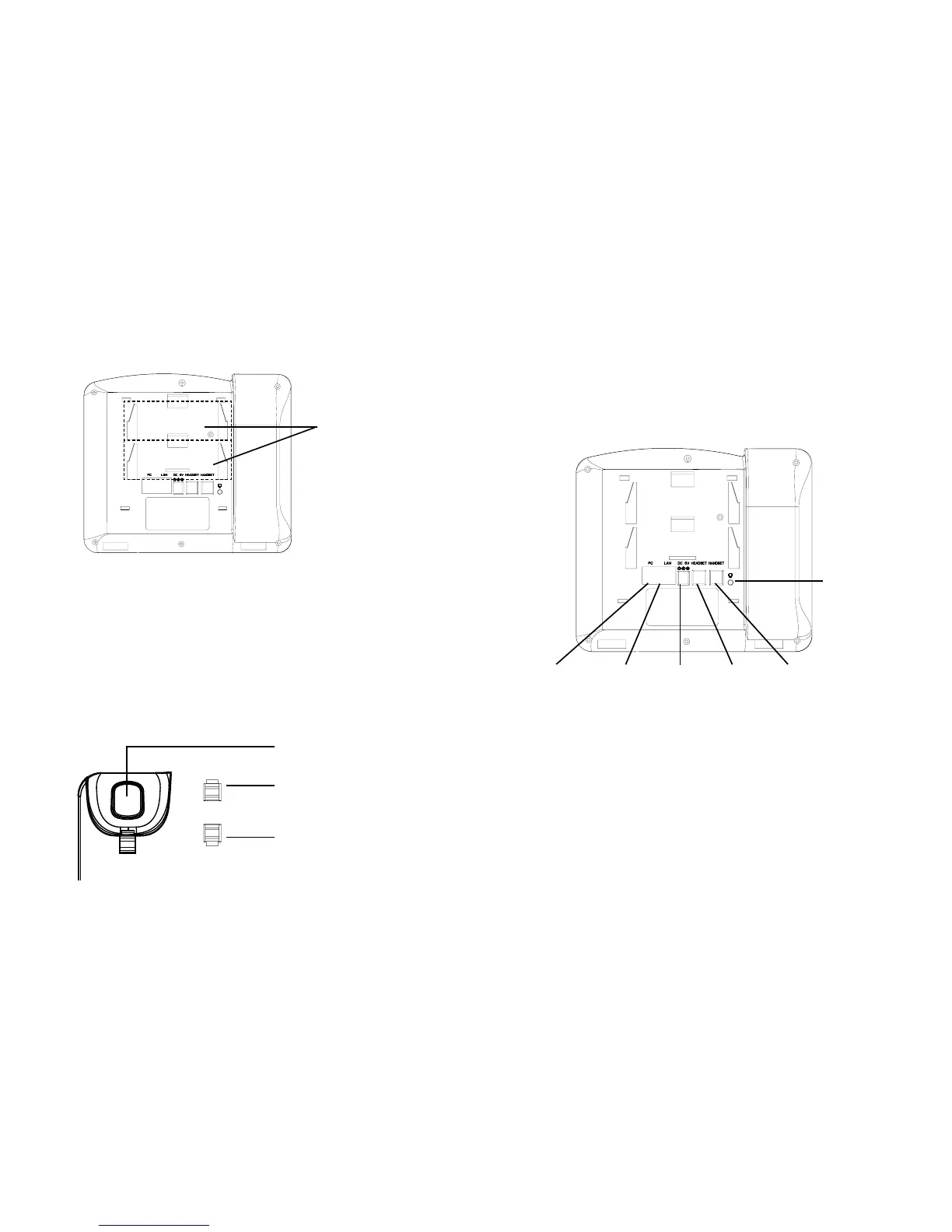

PC Port LAN Port Power Headset Port Handset Port
Installing the Phone (Phone Stand):
For installing the phone on the table with the phone stand, attach the phone stand
to the bottom of the phone where there is a slot for the phone stand (upper part,
bottom part).
Installing the Phone (Wall Mount):
1. Attach the wall mount to the slot on the back of the phone.
2. Attach the phone to the wall via the wall mount hole.
3. Pull out the tab on from the handset cradle (See gure below).
4. Rotate the tab and plug it back into the slot with the extension up to hold the
handset while the phone is mounted on the wall (See gure below).
Tab with extension up
Handset rest
Tab with extension down
Headset Port
Slots for the
wall mount and
phone stand

Grandstream Networks GXP2100 Specifications

General

Brand	Grandstream Networks
Model	GXP2100
Category	IP Phone
Language	English
