Grant Vortex 50/90 User Manual

41
Grant Vortex External Module
1 Not applicable ........................................... -
2 Flange ....................................................... 3005786
3 Combustion head T1 - 50/70, 50/90 .......... 3002507
3 Combustion head T2 - 70/90 ..................... 3002423
3 Combustion head T3 - 90/120, 120/155 .... 3002447
3 Combustion head T5 - 120/155 ................. 3002533
4 Electrode assembly .................................... 3007513
5 Electrode bracket ...................................... 3006552
6 Nozzle holder ............................................ 3008642
7 Collar ........................................................ 3008643
8 High voltage lead ...................................... 3008794
9 Air damper assembly ................................. 3008647
10 Fan - 50/70 ................................................ 3005708
10 Fan - 90/120 .............................................. 3008645
10 Fan - 50/90, 120/155 ................................. 3005788
11 Photocell ................................................... 3008646
12 Capacitor 4.5 µF ....................................... 3002837
13 Seal kit ...................................................... 3008878
Key No. Description Part No. Key No. Description Part No.
14 Needle valve ............................................. 3007582
15 Regulator .................................................. 3008651
16 Pump seal .................................................. 3000439
17 Pump ........................................................ 3008654
18 'O' ring ...................................................... 3007162
19 Filter - 'O' ring ........................................... 3008653
20 Connector ................................................. 3003602
21 Flexible pipe ............................................. 3007672
22 Tube .......................................................... 3008644
23 Pressure gauge connector .......................... 3008876
24 Drive coupling .......................................... 3000443
25 Solenoid .................................................... 3008648
26 Motor ........................................................ 3002836
27 Cover ........................................................ 3008649
28 Control box assembly ................................ 3008652
29 Solenoid lead ............................................ 3008851
30 Cover ........................................................ 3008879
31 Air intake cover ......................................... 3008649
13 - BURNER SPARE PARTS

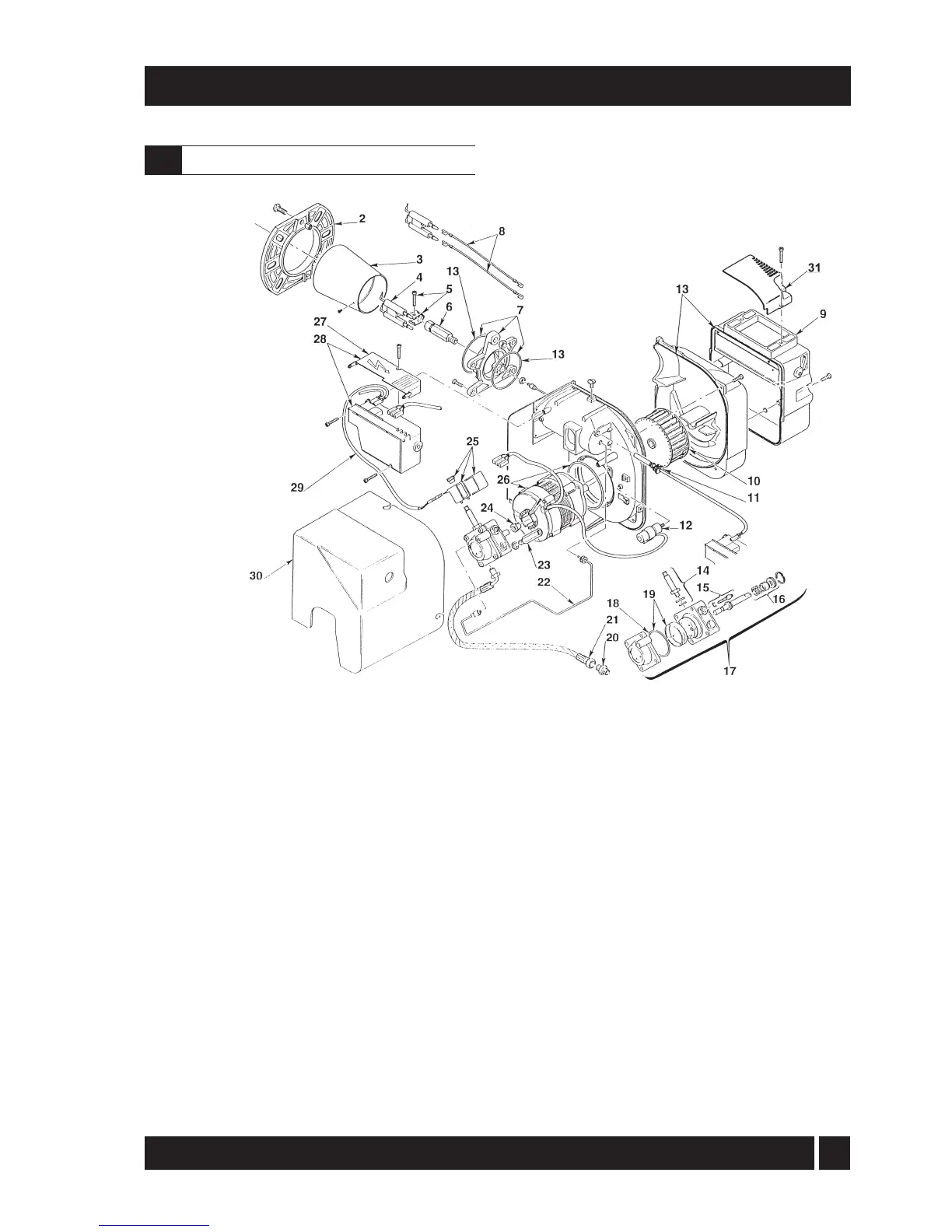

Riello RDB1, 2, 2.2 burner - exploded view
13.1
