GRASS VALLEY GV KORONA User Manual

Kayenne/Karrera/GV Korona
User Manual
257

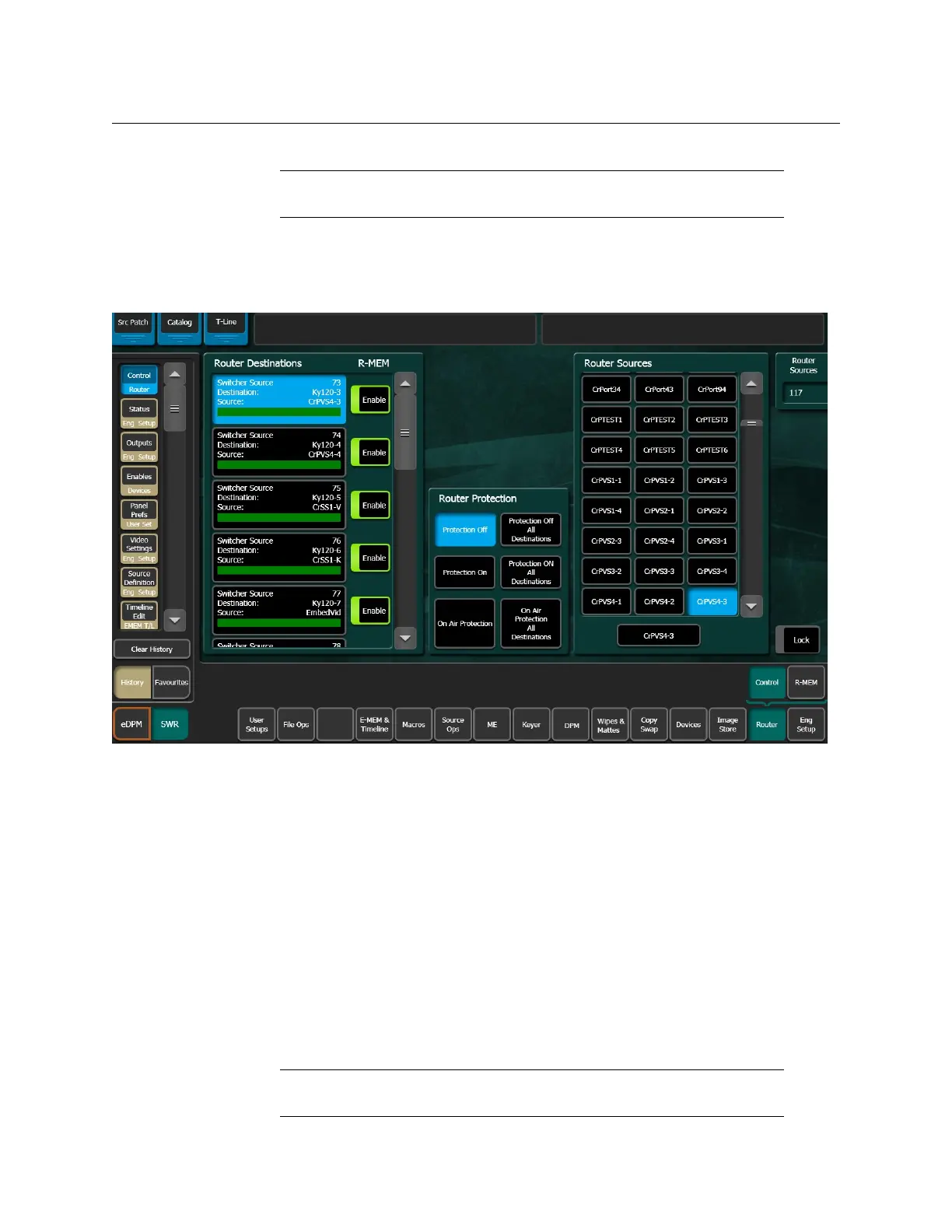

Router Control Panel.
Note: Prelude Control Systems are limited to selecting the first 128
switcher sources.
Control Aux Bus Source Selections from a Router
Aux buses are enabled for control in the Eng Setup, Outputs menu.
Enable the Aux Buses for router control:
1 Select the Aux button in the Output Type.
2 Select a Aux 1-46 data pad in the Logical Aux Bus pane to designate it for router control.
3 Select the Router Control selector button (highlights green when selected).
Repeat Steps 1-3 for each Aux Bus you wish to control by router.
The router must have the switcher sources defined and the 46 Aux Buses defined as
destinations, with four levels each (see the documentation that came with your router):
• Level 1: Suite 1 Video,
• Level 2: Suite 1 Key,
• Level 3: Suite 2 Video, and
• Level 4: Suite 2 Key.
Once configured, you can switch sources on Aux Buses from the external router.
Note: A Prelude router can communicate directly with the GV Switcher
switcher.
