55
Kahuna
Installation Manual

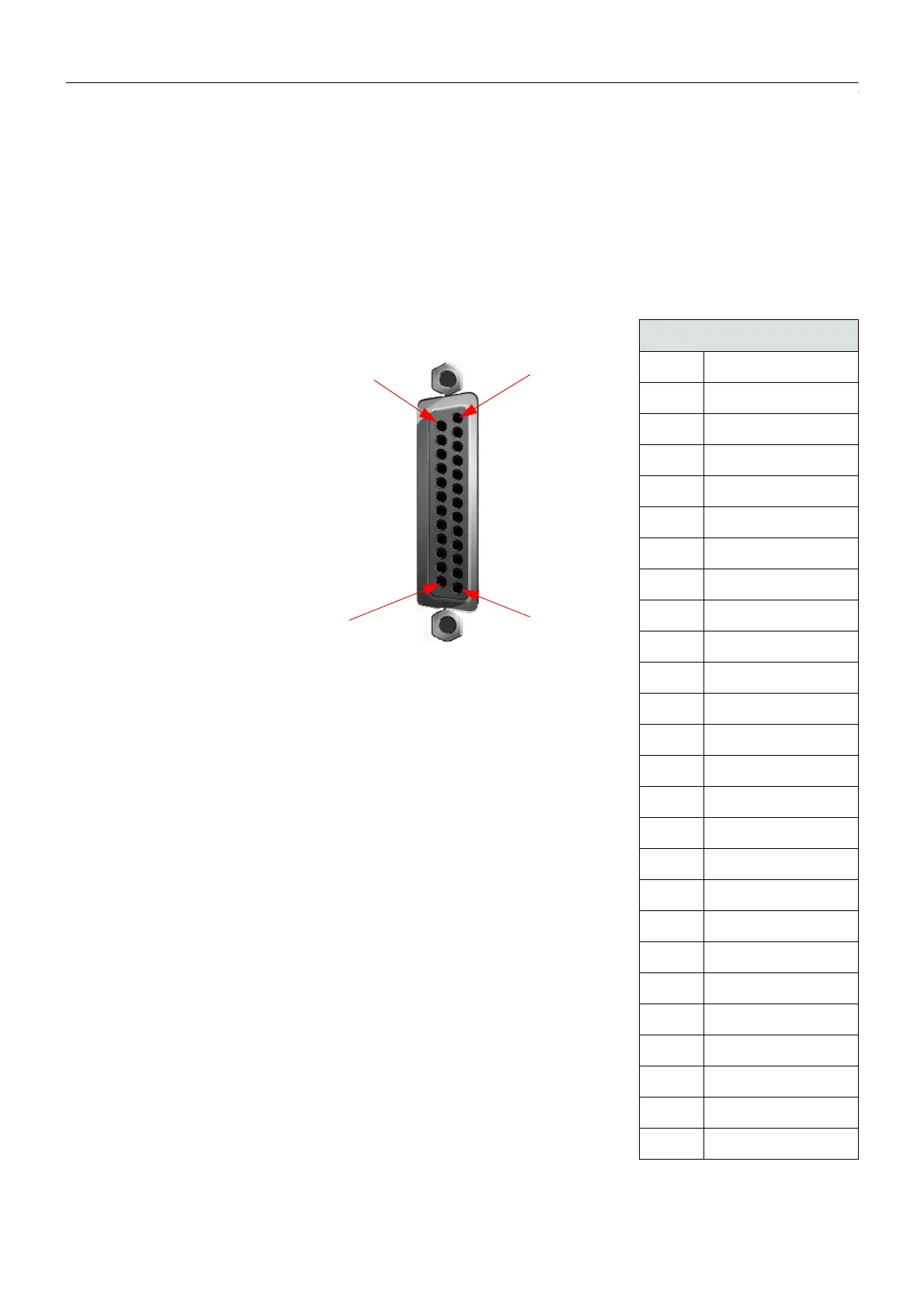

Reference Fin - GPO/TALLY via 25 way D-Type
The Reference Fin has up to 24 GPO/Tally outputs.
Each pair of GPO pins (for example Pin 1 & Pin 14) are connected to contacts of a solid-state relay
rated at 60V DC or AC Peak, current rating
0.8A continuous DC or AC. There is no particular
polarity requirement.
Please refer to the User Instruction Manual for setup procedures.
GPO Tally 1 to 12 A/B
Pin Signal
1 TALLY 1_A
2 TALLY 2_A
3 TALLY 3_A
4 TALLY 4_A
5 TALLY 5_A
6 TALLY 6_A
7 TALLY 7_A
8 TALLY 8_A
9 TALLY 9_A
10 TALLY 10_A
11 TALLY 11_A
12 TALLY 12_A
13 TEST Only
14 TALLY 1_B
15 TALLY 2_B
16 TALLY 3_B
17 TALLY 4_B
18 TALLY 5_B
19 TALLY 6_B
20 TALLY 7_B
21 TALLY 8_B
22 TALLY 9_B
23 TALLY 10_B
24 TALLY 11_B
25 TALLY 12_B
